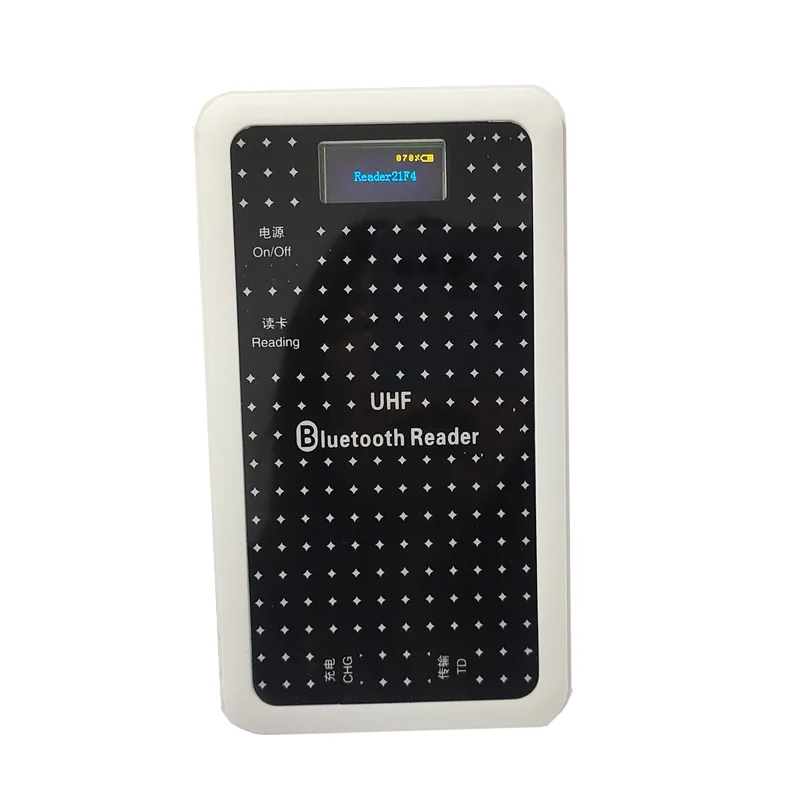

UHF Blue tooth Reader
General Description:
It is a high performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Application:
u Sports card reader management
u Bluetooth Wireless data transmission
u Cloth clothing inventory
u Jewelry inventory
Features:
1. Based on the domestic high-performance RF chip design,Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 3dBi PCB antenna with effect distance up to 0~4m*;
7. Support active mode, answer mode;
8.Support ASCII read
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
|
Model |
Interface |
|
SW6902 |
USB HID & Blue tooth(BLE5.2) |
|
–B Blue tooth |
|
Product Technical Parameters
|
Type |
|
|
Type |
UHF Bluetooth Reader |
|
Physical parameters |
|
|
Dimensions |
147 x 82x 22mm |
|
Net Weight |
155g |
|
Gross Weight |
0.5Kg |
|
Package size |
20.5*14.5*4cm |
|
Shell material |
ABS |
|
Color |
White |
|
Environmental parameters |
|
|
Operation Temperature |
-20~+60℃ |
|
Storage Temperature |
-40~+85℃ |
|
Humidity |
5%~95% RH, Non-condensing |
|
Performance |
|
|
Frequency |
902~928MHz,860~868MHz(frequency customization optional) |
|
Ant. |
3dBi antenna |
|
RF Power |
0 - 26dBm |
|
Read Distance * |
0-4m * Effective distance depends on antenna, tag and environment. |
|
Read Rate |
200cnt / second |
|
Read Function |
Support ASCII read |
|
Read Type |
ISO18000-6C(EPC Gen2) |
|
Reading Prompt |
Buzzer, LED |
|
Working Voltage |
USB,400mA/ 5000hA battery rechargeable battery |
|
Work Mode |
Active mode, Answer mode |
|
Communication |
SW6902: USB, BLUE5.2 & Battery |
|
SDK |
|
|
SDK |
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android,ModBus. |
Download file:
ReaderSoft download address:
http://www.mediafire.com/file/nwlvxzxkgxu2g5x/ReaderSoftV3.1.rar/file
SDK download address:
http://www.mediafire.com/file/cvl207a4bg97b90/SW_SDK_V3.1.rar/file
Factory direct price, you can order it directly.
We are a manufacturer, not a Trading Company. We provide 1 years warranty for relative products, we can also provide hardware & Software OEM&ODM.
