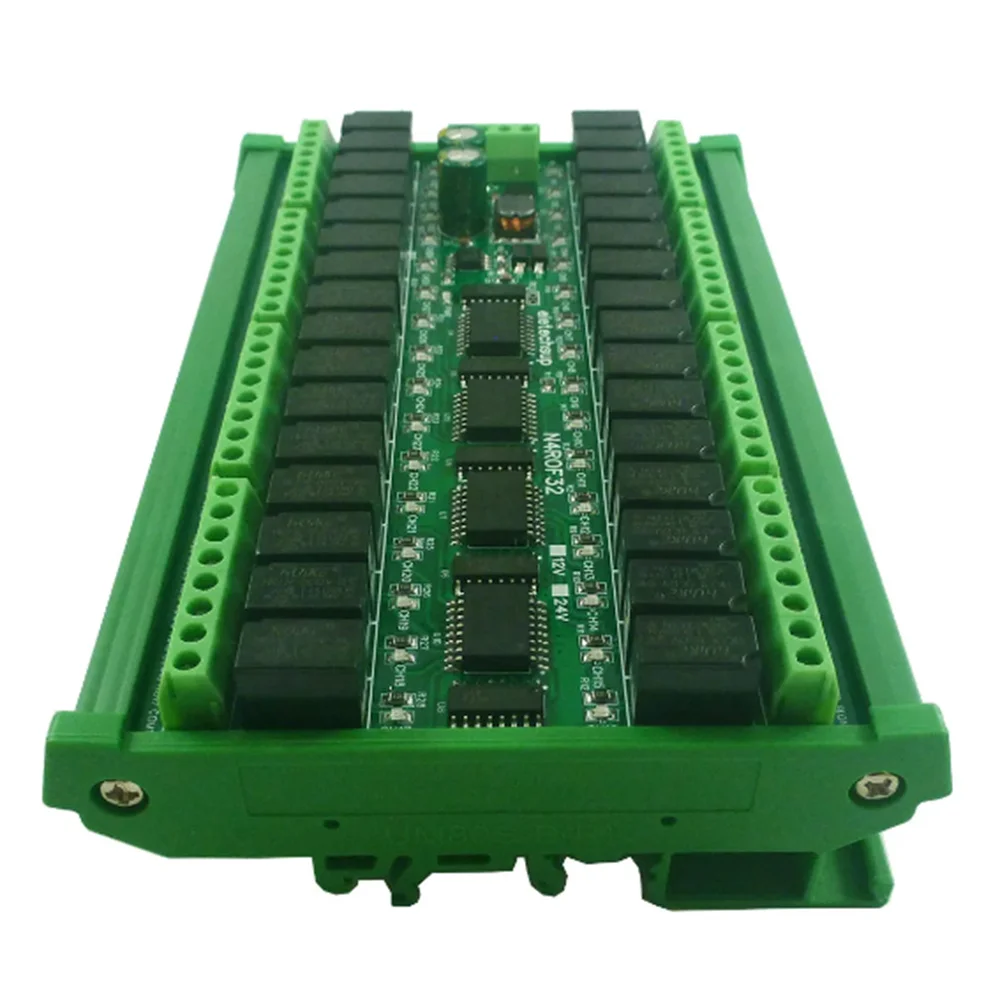

2: Standby current (DC 12V) 4MA, 1 relay open 20MA, ...,32 relay open 432MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands
4: Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 Baud_rate : 1200/2400/4800/9600(Default)/19200/38400/57600/115200BPS
9 Parity :None(Default)/Even/Odd
10 Terminal specification: 3.96MM pitch, 2.5MM slotted screw
11Size : 142*80*12MM(Only Board);145*88*36MM(With DIN Box);
12 Weight : 138g(Only Board),238g(With DIN Box)
13 Maximum load: 2A/120VAC ,2A /24VDC(Resistive load within 2A or inductive load within 1A)
Application
HMI Configuration Software
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Mini Motor FW & BW
Automatic curtain control
LED Control
2 Use USB to RS485 to control multiple boards, each board needs to be set to a different RS485 address
3 Use the RS485 interface of the PLC to expand the external output port, and each board needs to be set to a different RS485 address
