Description

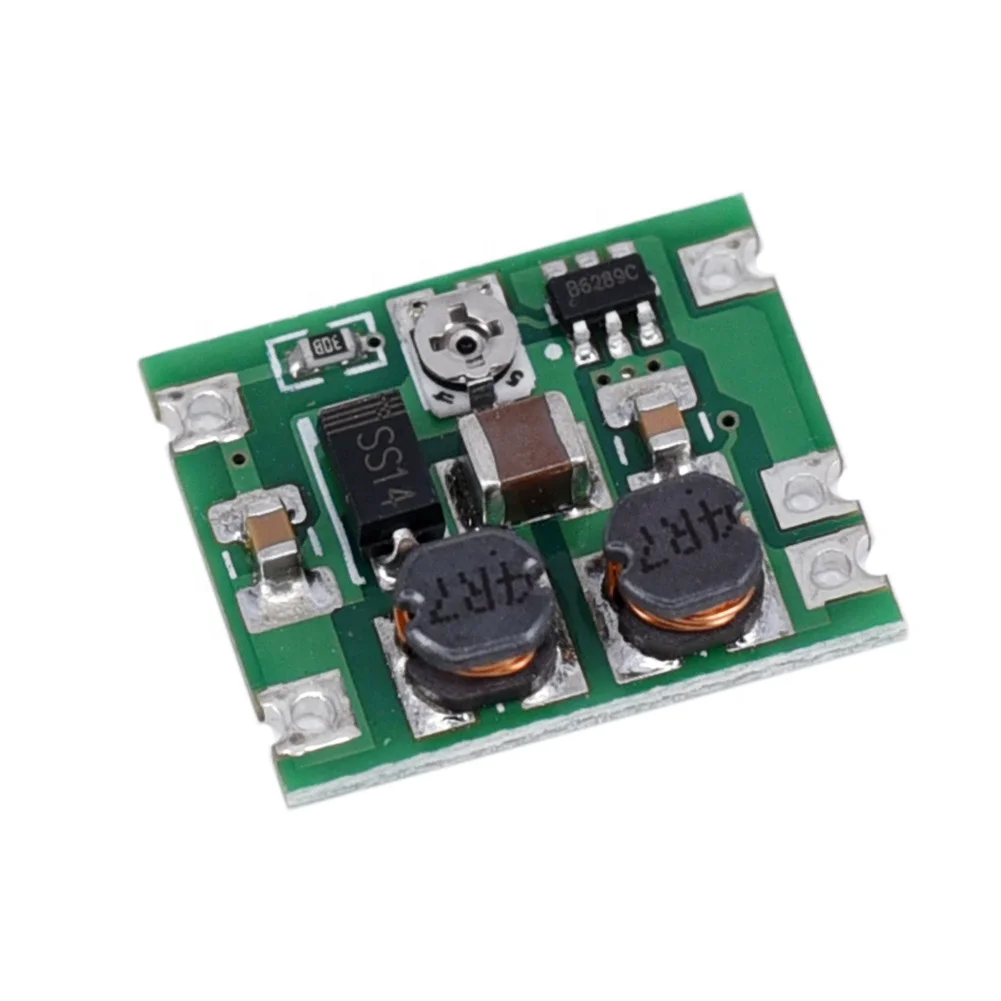

Mini Automatic Step Up Down Voltage Regulator Adjustable DC to DC Boost/Buck Converters 5W 3-15V Input 1-15V Output
Product Description
The potentiometer is small, and the potentiometer is easy to be damaged. Please pay attention to the adjustment strength. This potentiometer is not suitable for repeated adjustment for many times, and it is easy to break, please know.
Specification
item
value
Input voltage
DC3~15V
Output voltage
DC1~15V
Conversion efficiency
80~82%
Maximum output current
700mA
Maximum output power
5W (Note: The maximum power and maximum current are subject to the first comer)
Installation Instructions
Notice
The EN terminal must be connected to IN+, and the module will have output. There is no output when EN is left open or connected to IN-.
