Description
Product Overview

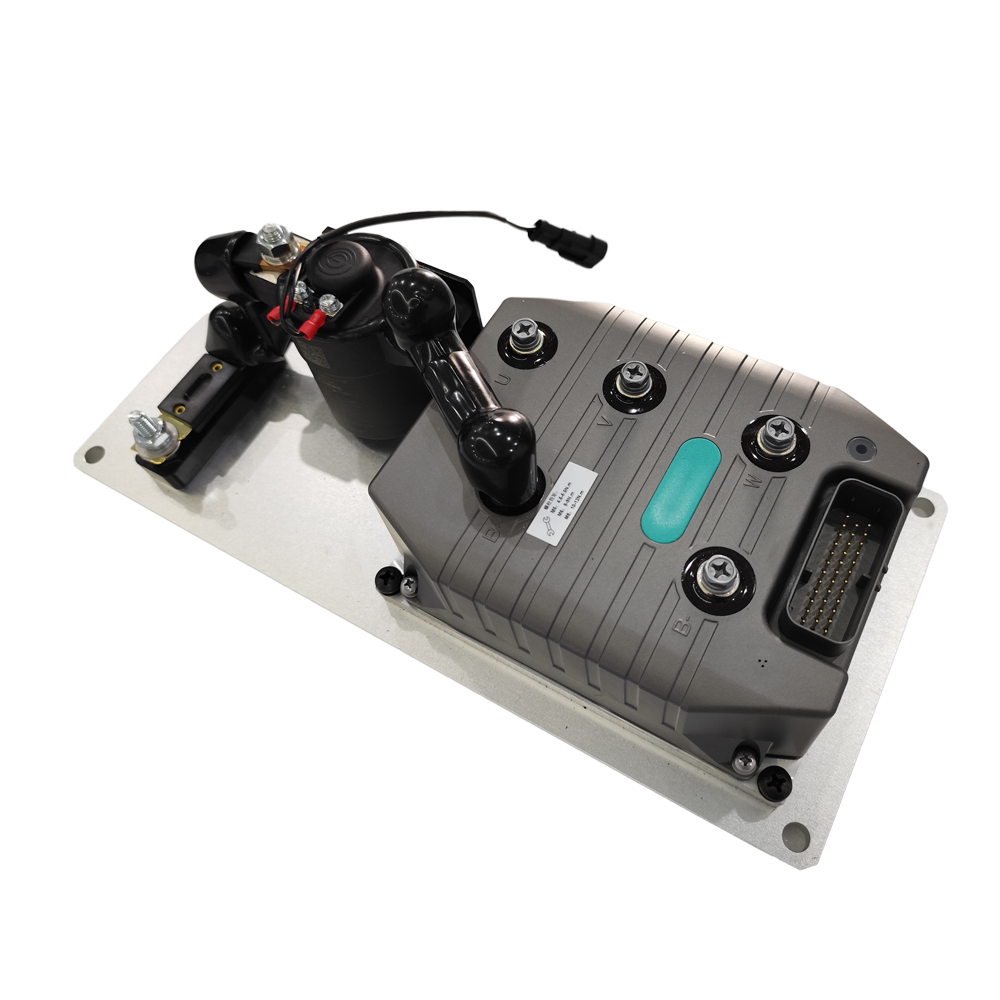

AC Motor Controller
This series of controller is a low voltage DC input, high current output AC motor controller, powered by a battery system, can be used in electric forklifts, battery touring buses, golf carts, lawn mowers, cleaning cars,AGV cars and various small passenger cars.
Product specifications
Item
Parameters
Voltage Level
48VDC
Operating Voltage Range
33V~60V
Power Supply Starting Voltage
28.8V
Rated Current
175A
Maximum Current
350A
IP Rating
IP65
Cooling Method
Natural Cooling
PWM Frequency
16HZ
Logic Input Current
＜10mA
Over Temperature Protection
Pre-alarm at 75°C, cut off at 95°C
Feature
Powerful Multiple Protection Functions
Over-voltage, over-current, over-temperature, long charging time protection and other multiple protection functions.
Advanced Pulse Width Modulation Technology
Adopt the electric differential speed control, which saves the front axle and differential and makes the control more flexible;
More Flexible Control
Adopt the electric differential speed control, which saves the front axle and differential and makes the control more flexible;
