Description

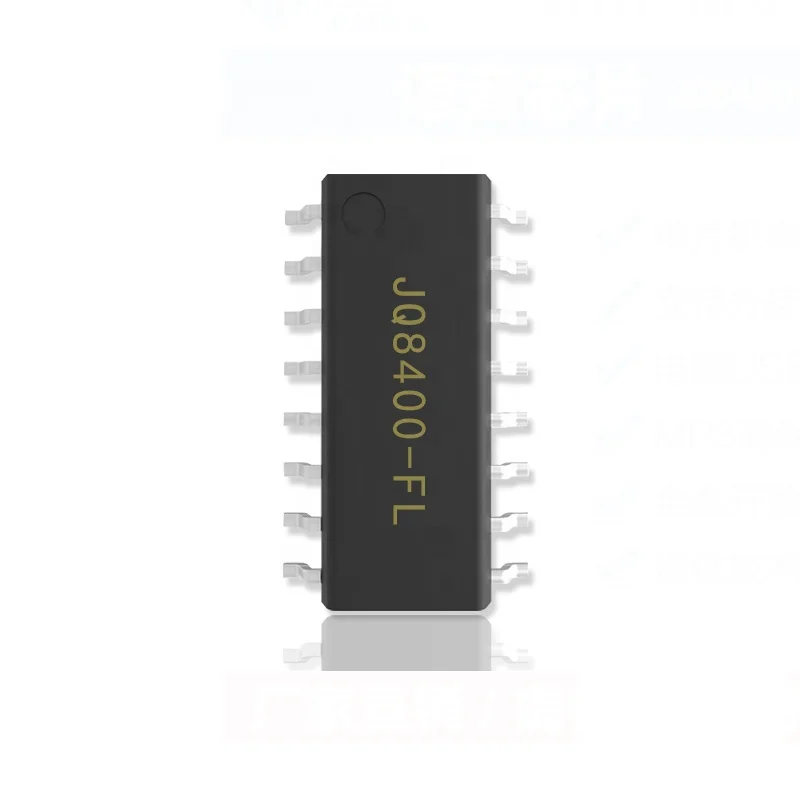

MCU Serial Port Control SPI Flash USB MP3 Chip Voice Recognition Chip MP3 Sound Quality Voice Recorder Chip JQ8400-FL
Product Description
support MP3, and WAV decoding
support FAT file system
Sampling rate (KHz) : 8/11.025/12/16/22.05/24/32/44.1/48
Hardware decoding using DSP to 24-bit DAC; dynamic range: 90dB, signal-to-noise ratio: 85dB
Control methods: single-line control, standard UART
Support SPIFLASH as USB drive; direct control as USB drive
Support operation: last audio, next audio, play, pause, stop, named audio playback,
Support access to files and directories information - Support access to status and various information
Support replaying specified audio, pausing current audio, inserting another audio and returning to the point of pause for
continuation
Support both Chinese and English path descriptions for named audio playback - Support intelligent assembly of audio playback from
different directories
Support 30 levels of volume control - Support 5 types of equalizer control
Support 7 modes of control
Support multiple times of replay
Support sleeping mode with power consumption as low as 600 μA, and awakening via oneline control command
Support speed forward and backward at specific time
Support replay at specific time
Support specific starting time
Support BUSY signal output
Enable stable application via comprehensive command set
Tailor-made application for command generation
support FAT file system
Sampling rate (KHz) : 8/11.025/12/16/22.05/24/32/44.1/48
Hardware decoding using DSP to 24-bit DAC; dynamic range: 90dB, signal-to-noise ratio: 85dB
Control methods: single-line control, standard UART
Support SPIFLASH as USB drive; direct control as USB drive
Support operation: last audio, next audio, play, pause, stop, named audio playback,
Support access to files and directories information - Support access to status and various information
Support replaying specified audio, pausing current audio, inserting another audio and returning to the point of pause for
continuation
Support both Chinese and English path descriptions for named audio playback - Support intelligent assembly of audio playback from
different directories
Support 30 levels of volume control - Support 5 types of equalizer control
Support 7 modes of control
Support multiple times of replay
Support sleeping mode with power consumption as low as 600 μA, and awakening via oneline control command
Support speed forward and backward at specific time
Support replay at specific time
Support specific starting time
Support BUSY signal output
Enable stable application via comprehensive command set
Tailor-made application for command generation
application site example
1. Car navigation voice broadcast;
2, road transport inspection, toll station voice prompts;
3, the railway station, bus station security check voice prompts;
4. Voice prompts for power, communication and financial business halls;
5. The vehicle enters and exits the channel to verify the voice prompt;
6. Voice prompts for public security frontier inspection channels;
7. Multi-channel voice alarm or device operation guidance voice;
8, electric sightseeing car safe driving voice notice;
9. Automatic alarm of mechanical and electrical equipment failure;
10, fire alarm alarm prompts;
11, automatic broadcast equipment, scheduled broadcast;
12, treadmill voice navigation;
2, road transport inspection, toll station voice prompts;
3, the railway station, bus station security check voice prompts;
4. Voice prompts for power, communication and financial business halls;
5. The vehicle enters and exits the channel to verify the voice prompt;
6. Voice prompts for public security frontier inspection channels;
7. Multi-channel voice alarm or device operation guidance voice;
8, electric sightseeing car safe driving voice notice;
9. Automatic alarm of mechanical and electrical equipment failure;
10, fire alarm alarm prompts;
11, automatic broadcast equipment, scheduled broadcast;
12, treadmill voice navigation;
update the voice content description
The JQ8400 voice chip uses the SOC solution, integrates a 16-bit MCU, and an ADSP dedicated to audio decoding. It uses hard decoding to ensure the stability and sound quality of the system. The compact size is more suitable for embedding other products.
SPI-flash to change voice content
The biggest advantage of this chip is that it can flexibly replace the voice content in the SPI-flash, eliminating the trouble
that the traditional voice chip needs to install the host computer to change the voice. The SPIFLASH is directly simulated into a USB disk, which is very convenient as a copy of the USB disk. Make product development and production easy and simple. The first-line serial port control mode and RX232 serial port control are optional, providing more selectivity for R&D.
SPI-flash to change voice content
The biggest advantage of this chip is that it can flexibly replace the voice content in the SPI-flash, eliminating the trouble
that the traditional voice chip needs to install the host computer to change the voice. The SPIFLASH is directly simulated into a USB disk, which is very convenient as a copy of the USB disk. Make product development and production easy and simple. The first-line serial port control mode and RX232 serial port control are optional, providing more selectivity for R&D.
|
Name
|
PARAMETERS
|
|
MP3 file format
|
1. Supports all 11172-3 bit rates and ISO13813-3 layer 3 audio decoding
2. Sampling rates (KHz): 8/ 11.025/ 12/ 16/ 22.05/ 24/ 32/ 44.1/ 48
3. Supports Normal, Jazz, Classic, Pop, Rock sound effects
|
|
USB port USB
|
2.0 standard
|
|
Power input
|
DC 3.3 – 5.5V; best at 4.2V, IO port level at 3.3V
|
|
Default current
|
Sleep mode: 500uA; normal mode: 10mA
|
|
PCB size
|
18 x 25mm
|
|
Working temperature
|
-40 to 85 degree Celcius
|
|
Humidity
|
5% to 95%
|
