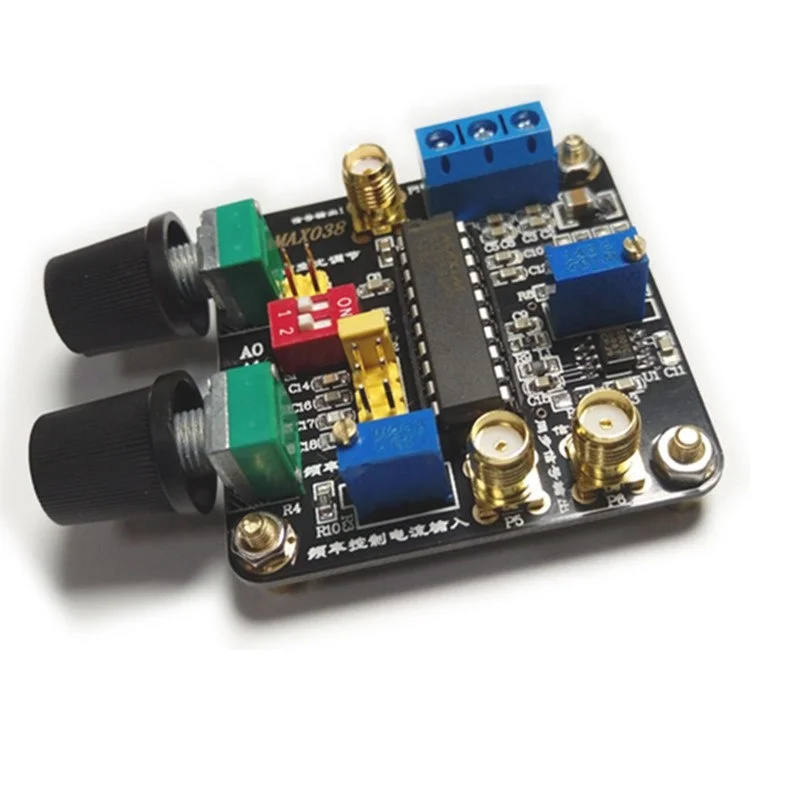

MAX038 triangle sine rectangular wave cnc manual pulse generator 0.1Hz to 20MHz high frequency rf generator
| Name | MAX038 Signal Generator Module |
| Size | 50mm X50mm |
| Power supply voltage range | ±5V |
Highlights
With manual control and digital control, the entire board adds a large number of capacitors for power supply filtering, making the power supply smoother. The module has four-way oscillating capacitors for switching, a fine-tuning frequency resistor, a coarse-frequency-sliding rheostat, and a duty-cycle-adjustable sliding varistor. The module adds a signal output amplification section, uses a high-speed op amp for final stage output, and can adjust the gain.
Module introduction
The MAX038 is a precision high-frequency waveform generation device from Maxim that can form a programmable multi-wave digital FM signal generator that can generate accurate high-frequency triangular, rectangular, and pulse waves. The output frequency range is from 0.1Hz to 20MHz, which can be controlled by the internal 2.5V bandgap voltage reference and the external capacitance and resistance matrix; the duty cycle can be controlled by a ±2.3V linear signal within a large range to facilitate the change. Pulse width modulation and sawtooth generation, duty cycle and frequency control are independent. The output waveform can be selected by setting the code on the control pin. The peak value of all output waveforms is 2V: The MAX038 features output impedance and high drive capability (can drive ±20mA current).
The main features
1,0.1Hz~20MHz operating frequency range:
2, triangular wave, sine wave, rectangular wave and pulse wave;
3, independent frequency and duty cycle adjustment;
4,350:1 frequency sweep range;
5,15%~85% controllable duty cycle;
6 low impedance output buffer, 0.1u;
7, low distortion sine wave, 75%;
8, low temperature drift, 200ppm / °C;
9, with TTL / CMOS compatible output, can be used to synchronize external devices;
