Description
Max gain 25dB differential amplifier transistor single ended differential amplifier wideband power amplifier
Parameter

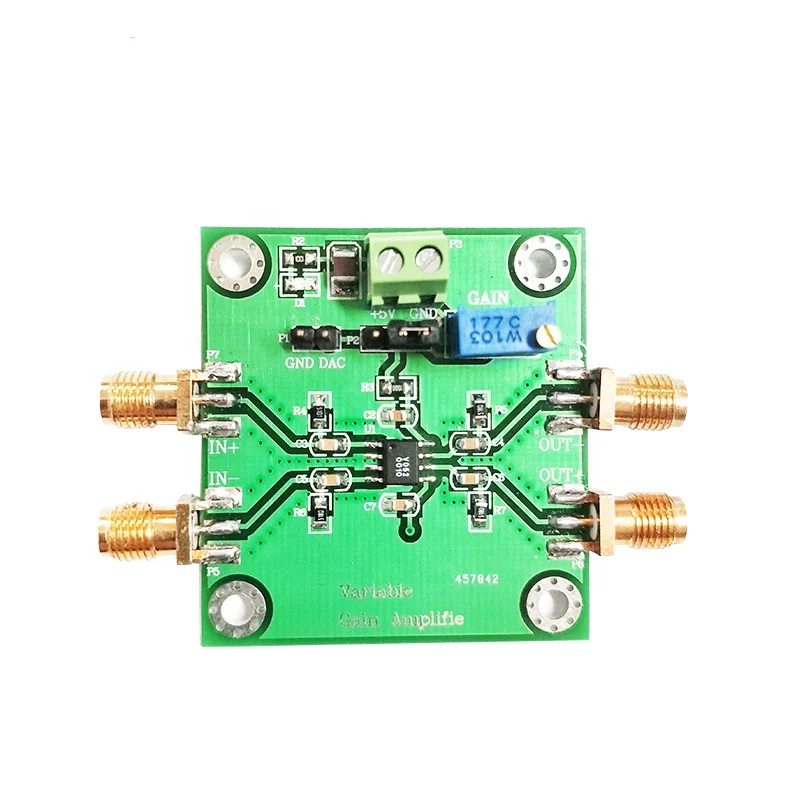

Name: IVA-05208 Ultra-Wideband Differential Amplifier
Size: 45mm X42mm, longer side 61.4mm
Mounting hole distance: 36.5mm X 33.5mm (length X width)
The main chip: IVA-05208
Undistorted output voltage: 430mvpp (MAX)
Gain: 25db (MAX)
Small signal bandwidth: 1.8G
Input and output impedance: 50 Euro
Voltage Control Voltage Range: 0-5V
Features: differential input differential output, single-ended input and output
The IVA-05208 is a variable gain amplifier
The low frequency operation of the device is only limited by the value the user chooses to block and bypass capacitors. Typical applications include variable gain amplifying fiber systems (eg SONET) data rates up to 2.0 Gb/s, mobile radio and satellite receivers, millimeter wave receiver 1F amplifiers and communication receivers.
Chip features
Differential input and output
DC-1.5 GHz bandwidth
2.0 Gb / s data rate
High gain: 30 dB typical
Wide Gain Control Range: 30dB Typical
5V bias
5VVg control voltage
Igc < 3 mA
Fast gain control response: <10 ns typical
