Description
Specifications
Power supply
12-24V DC,>50mA
Dim control output
0-10V, max.25mA sinking current
HF System
5.8GHz±75MHz
Transmission power
<0.2mW
Protocol
Bluetooth Mesh
Wireless frequency
2.4GHz
Detection radius
20%/50%/75%/100%(1-8m)
Mounting height
Max 40ft
Time setting
10s-60min(adjustable)
Light control
24H/10LUX/30LUX/50LUX
Temperature
-4°F~+140°F(-20℃~+60℃)
IP rating
IP65
Products Description

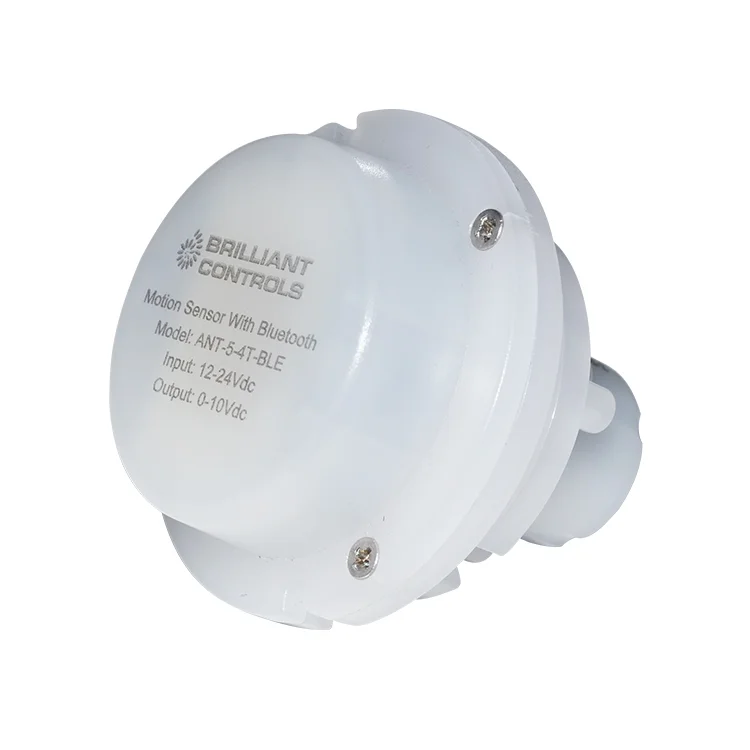

The Lighting Controls Bluetooth Fixture Controller & Sensor provides automated individual and group control of light fixtures using onboard sensors and Bluetooth technology. The ANT-5-4T-BLE is a motion sensor that dims lighting from high to low based on movement. This slim, low-profile sensor is designed for installation inside the bottom of a light fixture body. Configuration of the Lighting Controls Fixture Controller & Sensor is done conveniently with our free Smartphone App using Bluetooth protocol to communicate with the device. A Bluetooth mesh network is created between devices for control over a group of Lighting Controls Bluetooth Fixture Controller & Sensors.
