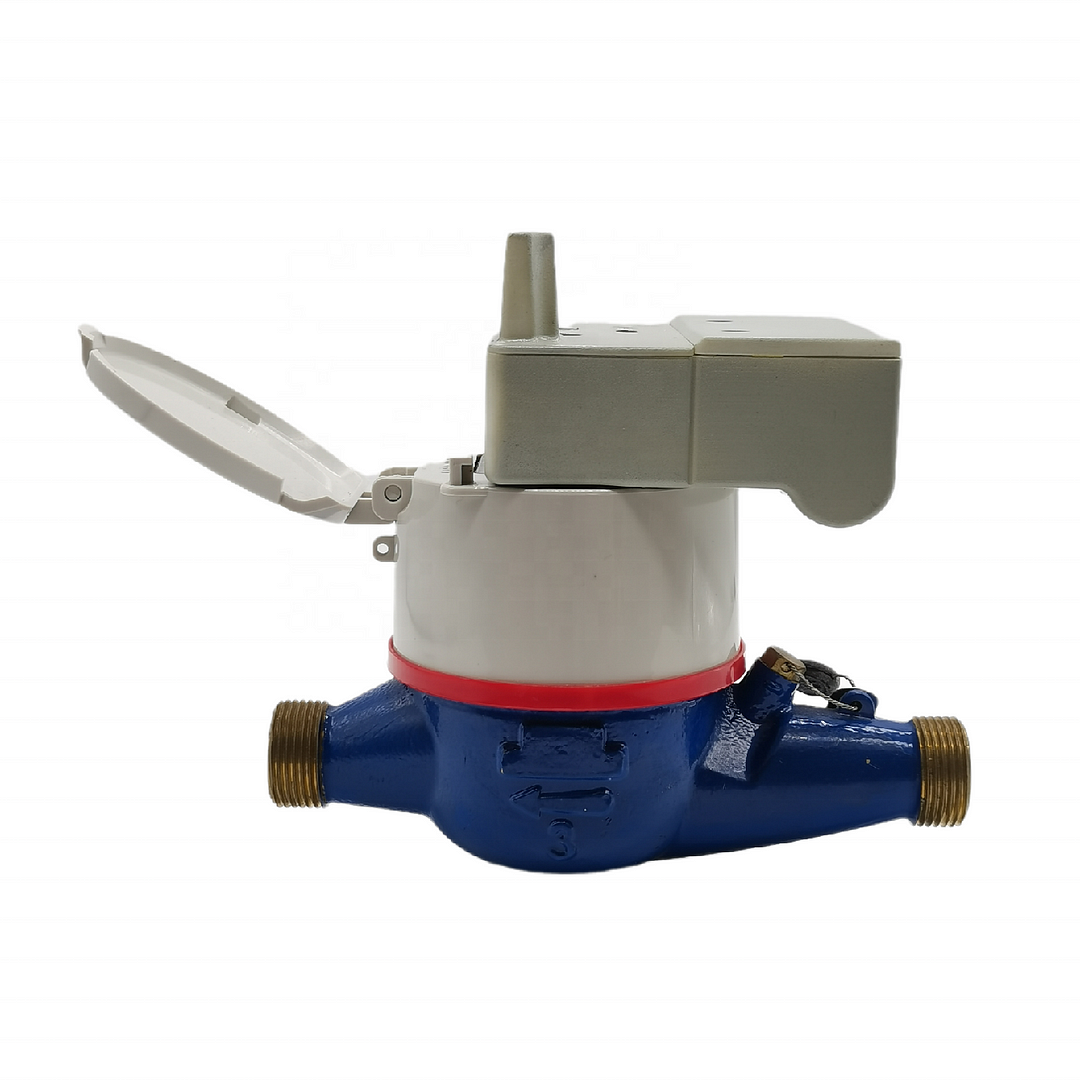

Used for remote wireless meter reading, compatible with Itron water meter and gas meter, low power product integrating non-magnetic measurement acquisition and communication transmission, the product can resist magnetic interference, support NB-IOT or LoRaWAN wireless remote transmission function;
The LoRaWAN module helps to optimise usage of natural resources in the gas metering industry and gain substantial productivity.
Features:
l Battery power supply: last 10 years lifetime
l NB-iot supported working band: 700\850\900\1800MHz or nB-iot band supported by local operators, no need to apply for frequency points; LoRaWAN supports the following frequency bands: CN470, EU868, RU864, IN865, and AS923
l Support touch button to report the data
l With magnetic attack alarm,low battery voltage alarm and disassemble alarm function etc.
l Valve position switch status detection, valve control circuit, automatic dredge valve, support for near end maintenance, etc.
l The daily and monthly frozen data can be saved and queried at any time
l Support infrared parameters configuration and upgrading function
l The data will be saved when the power is off.
l IP67 protection degree
l With CE & FCC certification
l Easy installation, high reliability and strong expansibility.
Function description:
|
Item |
Content |
Function description |
|
1 |
Working frequency |
It’s compatible with LoRaWAN® (which support EU868MHz, other frequency bands can be customized) |
|
2 |
Maximum transmit power |
It complies with the power limitation requirements of different areas in the LoRaWAN protocol |
|
3 |
Receiving sensitivity |
<-136dBm |
|
4 |
Working temperature |
-20℃~+70℃ |
|
5 |
Working voltage |
+3.1V~+3.8V |
|
6 |
Receiving current |
≤10mA |
|
7 |
Transmitting current |
≤130mA |
|
8 |
Transmission distance |
The maximum line of sight communication distance between the gateway and the meter module is 15km |
|
9 |
Quiescent Current |
≤ 18uA |
