Description
Product Description
|
Physical Parameter
|
||
|
Size
|
52mm×31mm×11mm
|
|
|
Material
|
ABS
|
|
|
Color
|
Grey, red, black, blue, green
|
|
|
Weight
|
9g
|
|
|
Packing
|
Corrugated box (50pcs / box) (can be
customized) |
|
|
Environmental Parameters
|
||
|
Working Humidity
|
<95%
|
|
|
Working Temperature
|
-25 ~ 70℃
|
|
|
Storage Temperature
|
-40 ~ 85℃
|
|
|
Protection Level
|
IP54 (Dust-proof and waterproof, do not soak)
|
|
|
Performance parameter
|
||
|
Static (standby) working current
|
<5uA
|
|
|
Operating Voltage
|
3V
|
|
|
Battery
|
CR2032 X 1 (Battery can be replaced)
|
|
|
Working Current (Transmit signal)
|
18mA (Pulse mode)
|
|
|
Battery Life
|
3Year (theoretical value)
|
|
|
Collision Ability
|
>200PCS
|
|
|
Transmit Time
|
Active 1 time per second / Passive 3 to 4 times per second
|
|
|
Sensitivity
|
-80 dBm ～ -90 dBm
|
|
|
Working Mode
|
Read-only
|
|
|
Working Method
|
Active/Passive /Active-passive combination
|
|
|
Low/High Frequency
|
2.4G + 125Khz
|
|

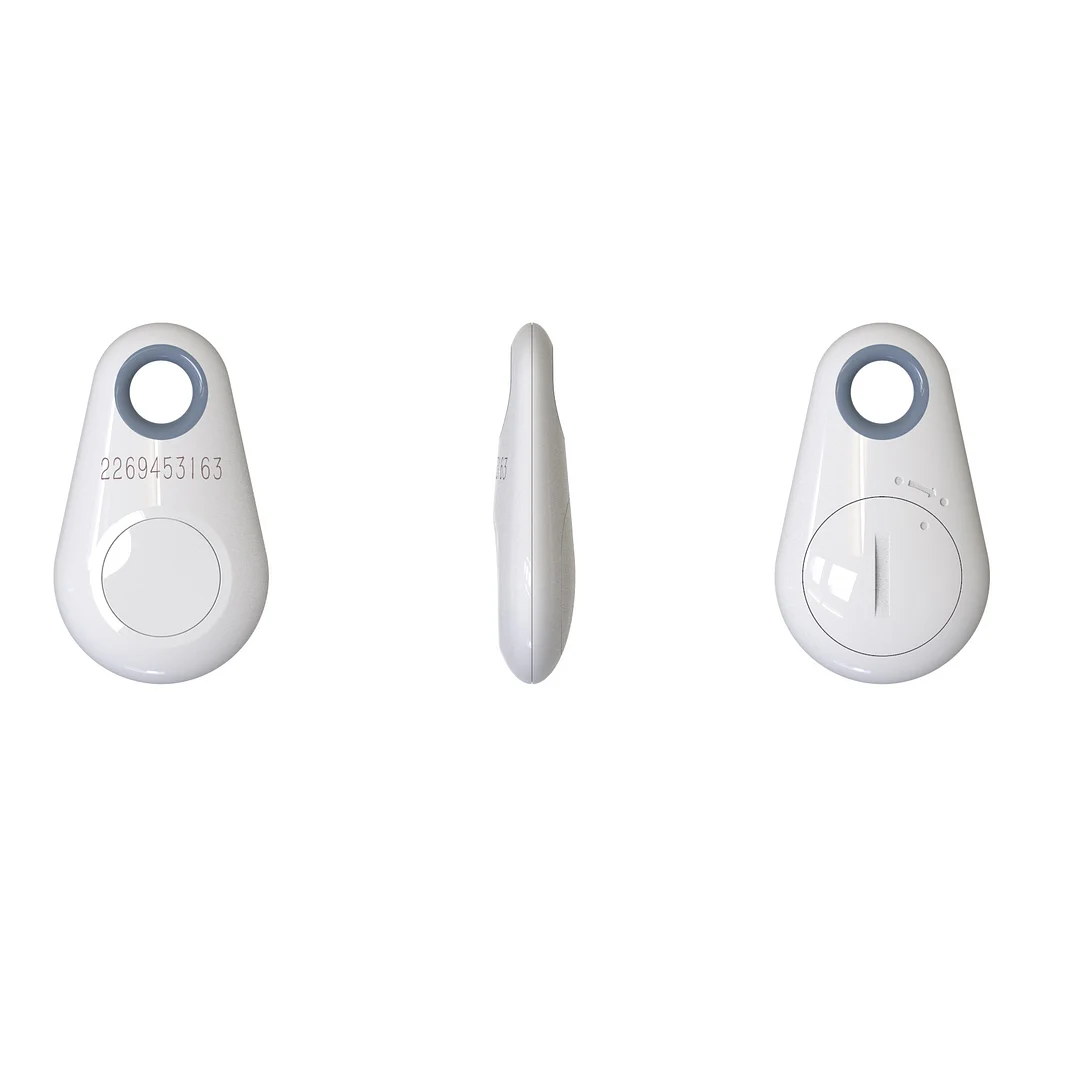

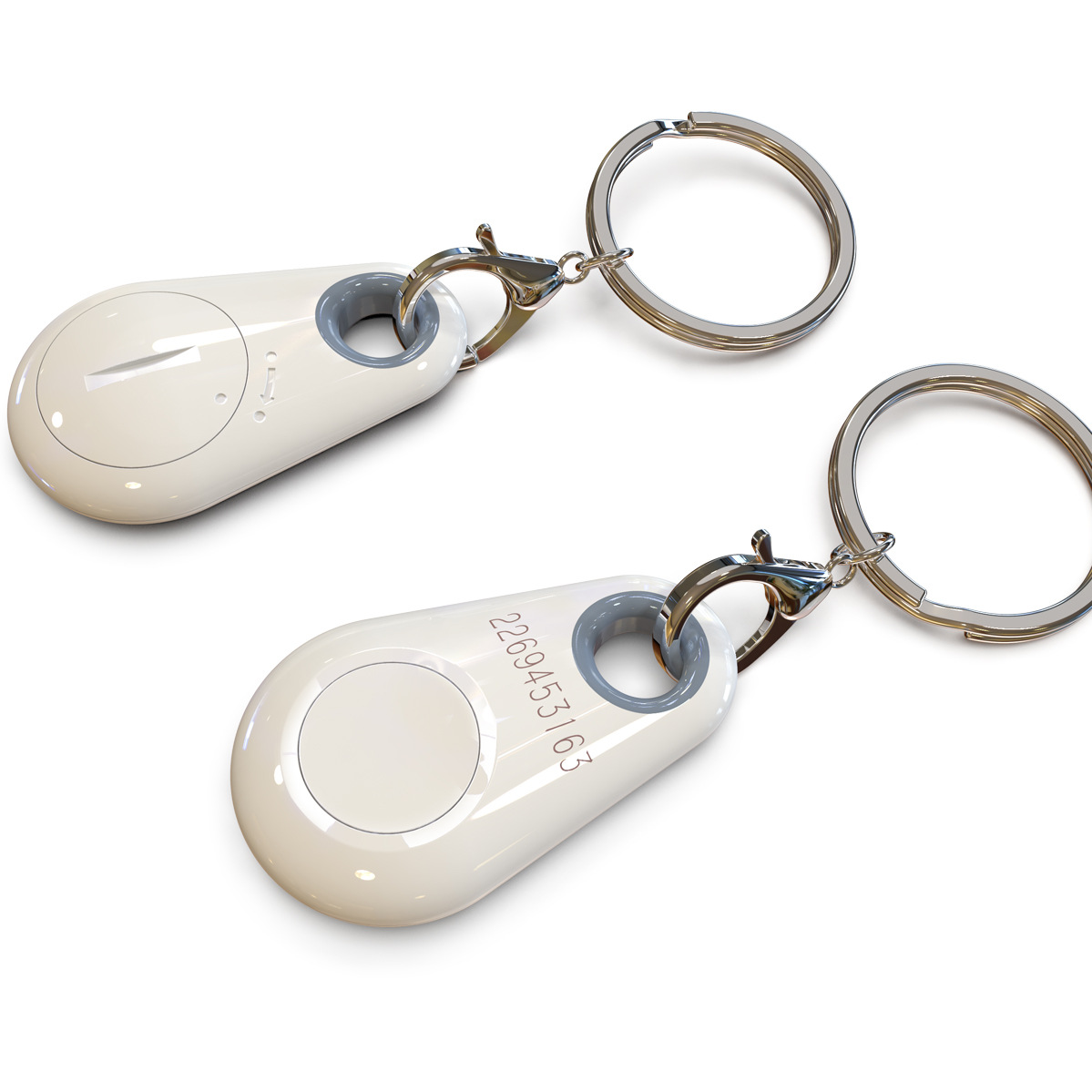

Product Summary The keychain can have multiple operating frequencies. 2.4GHz can be identified from a long distance, making it more secure. The tag comes with a 125k low-frequency activation function, which needs to be triggered to be recognized by the 125Khz antenna. Mini appearance, generous and beautiful, small and exquisite, convenient to carry, there are 4 colors to choose from, can also help customers to print LOGO, add SOS function according to customer needs. Tags are widely used in parking lot, employee attendance, personnel positioning, vehicle management.
Product Feature ● Reading: Compared with bar code, there is no need to scan in a straight line,the reading speed is faster, and multi-tag recognition and motion recognition can be performed; ● Security: Anti-tampering, encryption algorithm and authentication to ensure data security and durability; ● Dedicated chip, unique serial number, difficult to copy. Durability without mechanical failure, fully sealed structure resistant to harsh environments. ● Tag ID number: 10 bytes; ● Reading Type: Read-only; ● Duration of use: large battery capacity and long service life; ● Waterproof: IP54; ● Reading Distance: Long range; ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● High speed recognition: recognition speed can reach 60 km/h; ● High anti-interference: no special requirements for various interference sources on the site; ● Anti-electromagnetic interference: 10V/m0.1 ~ 1000MHz AM, AM electromagnetic wave.
Applications ● Residential parking lot management ● Staff attendance management ● Personnel positioning ● Vehicle management ● Card Management ● Personnel access management ● School student and teacher attendance management
