Description

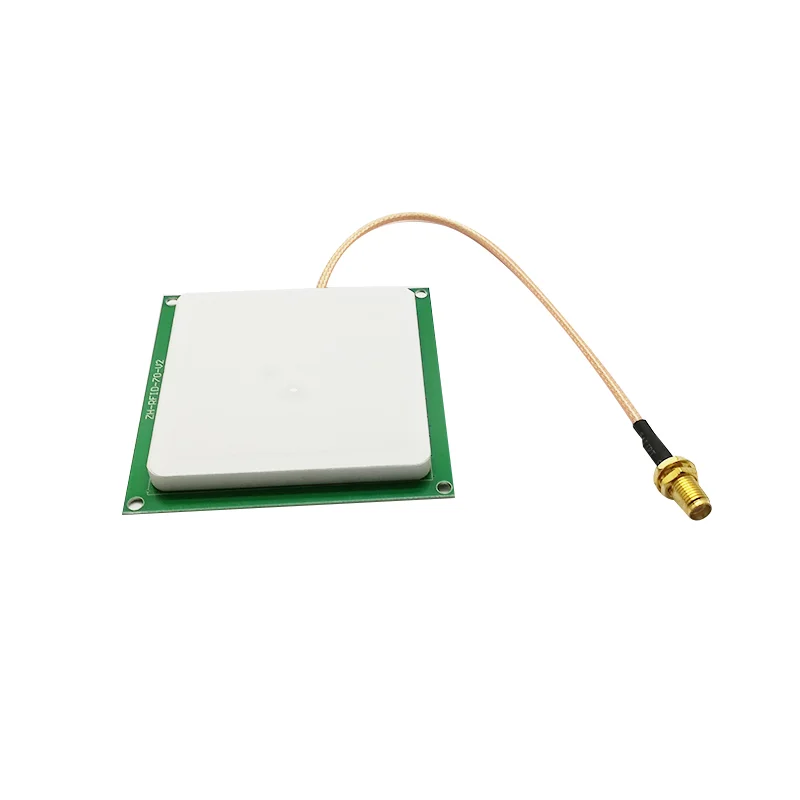

Long Rang Lector UHF Floor Mat 2dBi RFID Ceramics Antenna
Product Description
What is the overview of Long Rang Lector UHF Floor Mat 2dBi RFID Ceramics Antenna?
UHF Ceramic Antenna series is high-performance UHF RFID Ceramic Antennas. They can be widely
integrated in many RFID terminal systems such as handheld terminals, access control terminal and kiosks,
personnel management, asset tracking and other requirements for the size of the field, it can also be installed
on, for example, handheld navigators, tablet computers, etc.
What is the technical specification of Long Rang Lector UHF Floor Mat 2dBi RFID Ceramics Antenna?
* Compact size and light weight
* Easy installation
* Fast and accurate reading speed
* High data security
What is the technical specification of Long Rang Lector UHF Floor Mat 2dBi RFID Ceramics Antenna?
| Model |
AU-TC1515
|
AU-TC4035
|
AU-TC5040
|
AU-TC7060
|
|
|
||||
|
Mid Freq
|
915±3MHz
|
915±6MHz
|
915±6MHz
|
915MHz
|
|
Bandwidth
|
>10MHz
|
>10MHz
|
>10MHz
|
>10MHz
|
|
Max Gain
|
2dBi
|
2dBi
|
2dBi
|
3dBi
|
|
Polarization
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
|
Ceramic Dim
|
15*15*8mm
|
35*35*4mm
|
40*40*5mm
|
60*60*5mm
|
|
Total Dim
|
15*15*10.2mm
|
40*40*6.7mm
|
50*50*9mm
|
70*70*8.9mm
|
|
Model
|
AU-TC3525
|
AU-TC4235
|
AU-TC9080
|
AU-TC12080
|
|
|
||||
|
Mid Freq
|
915MHz
|
915±6MHz
|
915±3 / 922.5±3MHz
|
915±3 / 922.5±3MHz
|
|
Bandwidth
|
>10MHz
|
>10MHz
|
>20MHz
|
>20MHz
|
|
Max Gain
|
2dBi
|
2dBi
|
5dBi
|
6dBi
|
|
Polarization
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
|
Ceramic Dim
|
25*25*4mm
|
35*35*4mm
|
78.8*78.8*5mm
|
78.8*78.8*5mm
|
|
Total Dim
|
35*35*5mm
|
42*42*8.1mm
|
90*90*8.5mm
|
120*120*8.5mm
|
Note: PCB size can be customized upon request.
