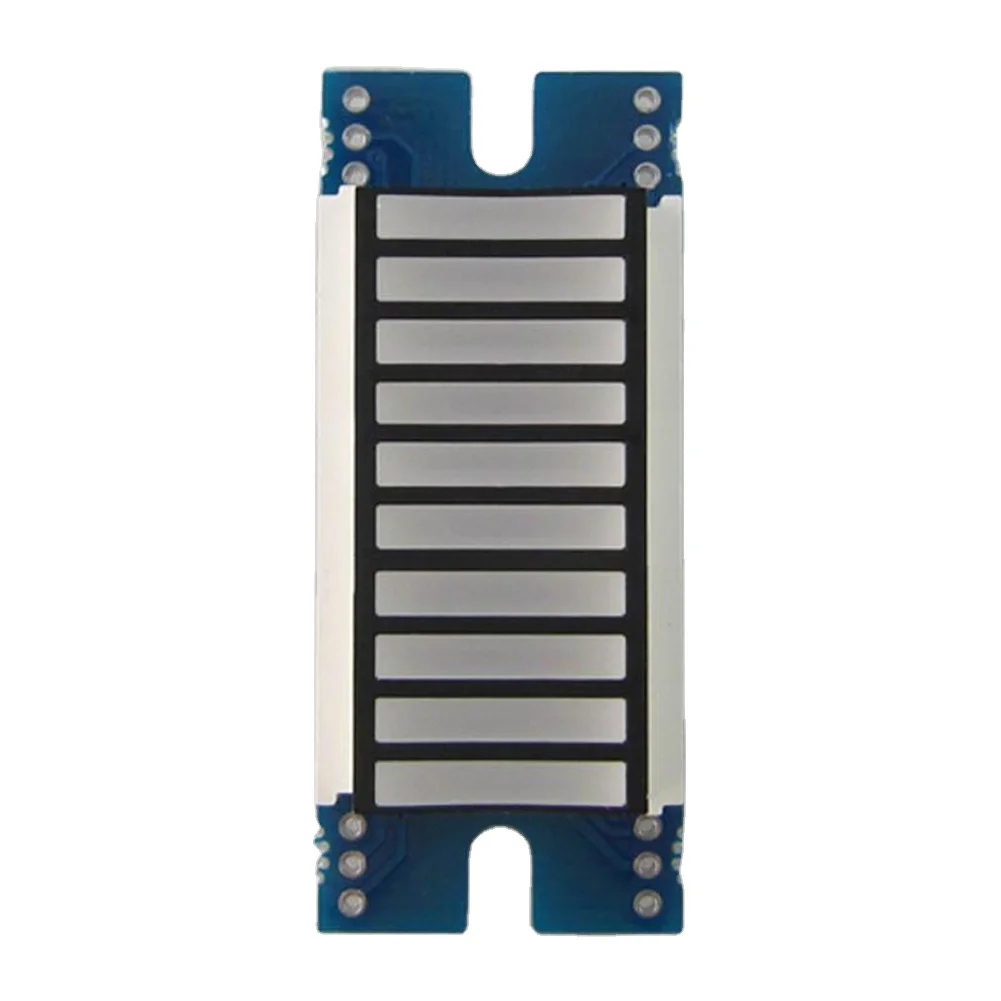

Lithium Battery Power LED Bar Meter 27mm Active Single Beam Meter LED Bar Graph 10 Segment Battery Indicator Module

LED Bar Meter
$16.56
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Lithium Battery Power LED Bar Meter 27mm Active Single Beam Meter LED Bar Graph 10 Segment Battery Indicator Module
Product Description

FEATURES

Rectangle windows technics with soft tinct. Single module struct, easy to install. Used in measure and display DC value.
Specification
item
value
Input Mode
Voltage, Current
Max. Input Over Capability
2× Input value
Input Resistance Va for Volt Meter
>500KΩ
Measuring Accuracy
±2%F.S.±1Segment
Effective Beam Number
10 Segments
Bargraph Length
27 mm
Bargraph Width
12mm
Segment Pitch
3.0mm
Power Supply and Range
Normal : DC5V ±10% Optional : DC12V (10~15V) DC24V (20~28V)
Power Consumption
≤375mW(F.S.)
Environment
-20~70℃& <85%RH
NO.
Symbol
Wire color
Definition
1
PS-
Black
Power supply -
2
IN
Yellow
Signal input
3
PS+
Red
Power supply +
Details Images
