Light-controlled Photosensitive Induction Flashing Firefly Kit Electronic Experiment Kit DIY Soldering Project Kits

DIY Soldering Project Kits
$1.43
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Light-controlled Photosensitive Induction Flashing Firefly Kit Electronic Experiment Kit DIY Soldering Project Kits
Product Description
Working voltage
dc4.5v~5v
Kit principle
Photosensitive resistor RG and V1 and RP1 form a light control circuit, so that the circuit only works at night. During the day, the photoresistor RG is illuminated, the resistance value becomes smaller, V1 is turned on, and the seventh pin of IC1 is pulled low at the low level, IC1 The oscillator circuit is stopped and the circuit does not flash. At night, the resistance of RG becomes larger, V1 is cut off, the 7th pin of IC1 becomes high level, the oscillation circuit starts to work, and LED1 and LED1 emit flash.

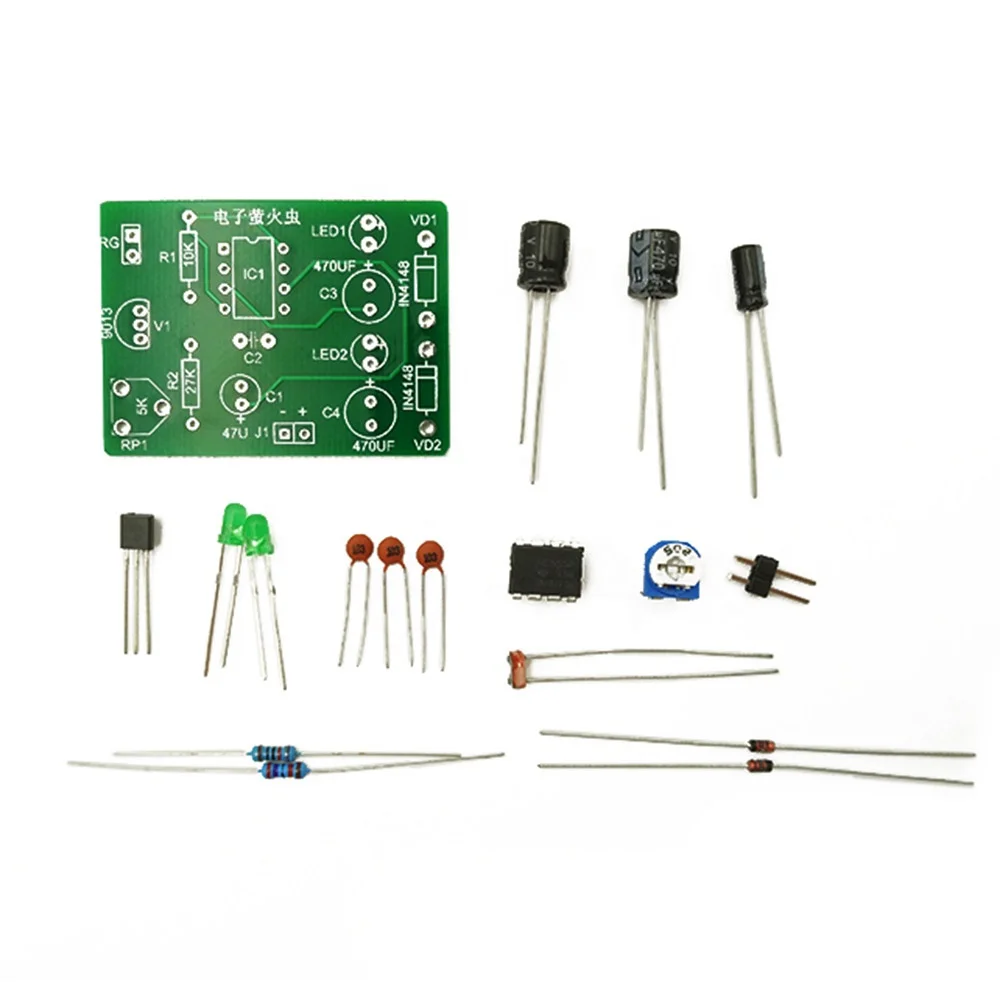

Details Images
