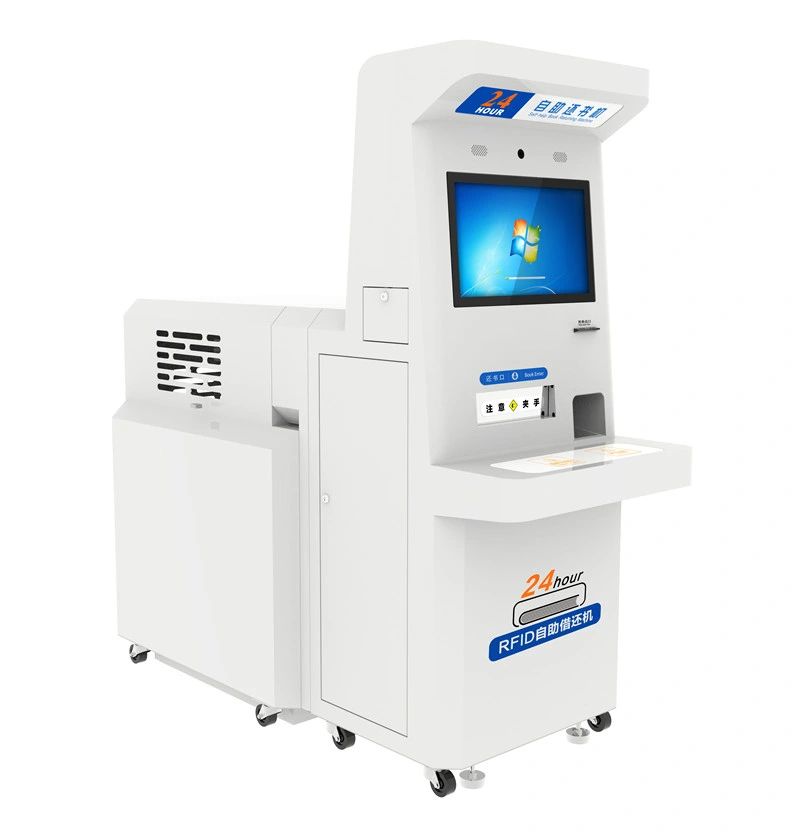

Library 24/7 Hour Self-Service Book Return RFID Reader Machine Wall Embedded

1. With 24-hour self-service book return function

2. Compatible with book transmission and sorting equipment, supports 7-12 kinds of classification, and can be expanded as needed

3. Books are automatically coded, which is convenient for librarians to put on shelves directly

4. There is a safety gate device at the book return opening, which can be opened after pressing the "return book" button on the screen, which effectively prevents foreign objects from entering the system and protects the normal operation of the device; Safe and unharmed

5. The system has an anti-swap mechanism to ensure that the returned books will not be swapped, and can reject abnormal book returning behaviors such as single bar code paper, and provide traceability for abnormal return behaviors such as "A book barcode is affixed to B book" Means to ensure maximum book safety


6. Equipped with a 17-inch bright waterproof capacitive touch screen, which is not affected by the sun, wind and rain, and is completely suitable for outdoor environments. It accepts finger touch operations to avoid foreign objects from scratching the display screen.

7. Equipped with infrared high-definition low-illumination camera, it can clearly collect reader images and returned book information even at night

8. Provide embedded card reading system, support identification of one card and barcode documents

9. Can be seamlessly connected with the book management and management system, and return and register in real time after returning the book

10. Printable vouchers can be printed, and the library can customize the print content

11. Humanized graphical user interface, simple and intuitive, easy to operate, with operation prompts such as animation and sound, and prompt guidance function for readers' misoperation

12. Provide a remote alarm system to notify management and maintenance personnel of equipment abnormalities in a timely manner via WeChat, email, etc.

13. Provide remote system maintenance and remote software upgrade services

Product Features

*Integrated equipment design, beautiful and ergonomic design.

*Intelligent identification lending and returning operation, can identify multiple books at a time, compatible with barcode.

* Humanized interface, touch screen operation, Chinese and English interface display, voice and animation help tips, lending and returning process is simple and fast.

* Can print receipts, print reader information, borrowing type, borrowing quantity, and borrowing time, etc., can set print switch, out of paper alarm function.

*Support RFID library card, 1 / 2D barcode library card, fingerprint, campus card, etc.

*The system has functions such as loan repayment, loan renewal, loan inquiry, and password modification that the reader can choose.

* The system provides accurate work statistics, such as the number of loans, types of loans, transaction statistics of success or failure, etc., and real-time logging of self-service operations by readers.

* The system has a remote diagnosis function and a timing switch.

*The system has a remote monitoring function, which can realize the image capture in the process of readers borrowing and returning books.

* It can be seamlessly connected with the library management system currently in use in the library to realize the functions of reader identification, book identification and corresponding book borrowing and returning (the original system SPI2 interface needs to be opened).

* Equipment noise is not higher than the national indoor environmental noise emission standards stipulated by the state.

*Support the loan mode of the main branch in the multi-campus mode (the RFID project is distributed and implemented in the main branch)

Specifications

Display: 17-inch LCD display

Touch screen: 17-inch infrared touch screen

Host configuration: industrial control main box

Operating system: WINXP / WIN7 / WIN10

Power switch: control the automatic switch-on and turn-off of the self-service borrow and return machine without manual switch

Sound: surround sound

Power supply voltage: ac220v ± 10% 50hz ± 1hz

Temperature: -5 ºC ~ + 35 ºC

Humidity: 40% ~ 80% (relative, non-decompression)

Communication interface: RJ45 network port

Power requirements: ac220v, 50hz

Power consumption: 400W

Control panel: power switch, volume, tone tuning

Appearance: Luxurious imported metal paint cabinet

Cabinet configuration: centralized power control system

Optional expansion function: thermal printer, support for second-generation resident ID card (optional function) barcode scanning head

Identify books: multiple identifications. Security design, prevent the function of stealing, swapping books or registering multiple books in one book.

Language support: Human-computer communication is realized by touching the display screen, providing visual interactive prompt functions in simplified Chinese and English. Each part of the equipment can be replaced separately, with sufficient resistance to attack and rapid recovery. After the network failure recovers, it automatically connects to the circulation system server and resumes self-service, without the assistance of the librarian to connect or restart the service. With core RFID technology, it supports book retrieval and offline operation. Comes with a back-end database for circulation. Support remote upgrade.

Introduction
We can provide completed hardware and software for library to management readers and book. The technique we use is RFID. Compare with traditional bar code, RFID has greater advantage. RFID tag has only one unique ID, which give a secure ID to the book. Besides of that, RFID tag is faster reading, and it can also read muti-tags at the same time, these increase the effect of the system working. RFID services center terminal allow readers to resister by themself, meanwhile readers can self-manage their account and make settlement . RFID return machines give a access for readers to return the books by themself. With a smart door at the entrance and exit, we can know the human traffic and prevent unauthorized books to be taken out of the library. A RFID scanner can be used to search books and count the inventory. Staff can easily tagging the books with a RFID sticker and RFID reader. Sorting center help them to fast sort books and place them. RFID system is a mainstream for modern library. It can reduce a lot of human work in returning, sorting, counting and security process. Meanwhile all the data is store in the electronic database, but not paper. It also create a more convenient environment for readers to operate by themself, which give them a better experience.
