Item Weight: 111.5g / 3.94oz Package Size: 14.5 x 12 x 2.7cm
Package Weight: 114g / 4.02oz
Description
LCR-T7 High Speed Transistor Tester for Diode 3.5inch Full Color Screen Graphic Display Digital Multifunction Tester
Product Description

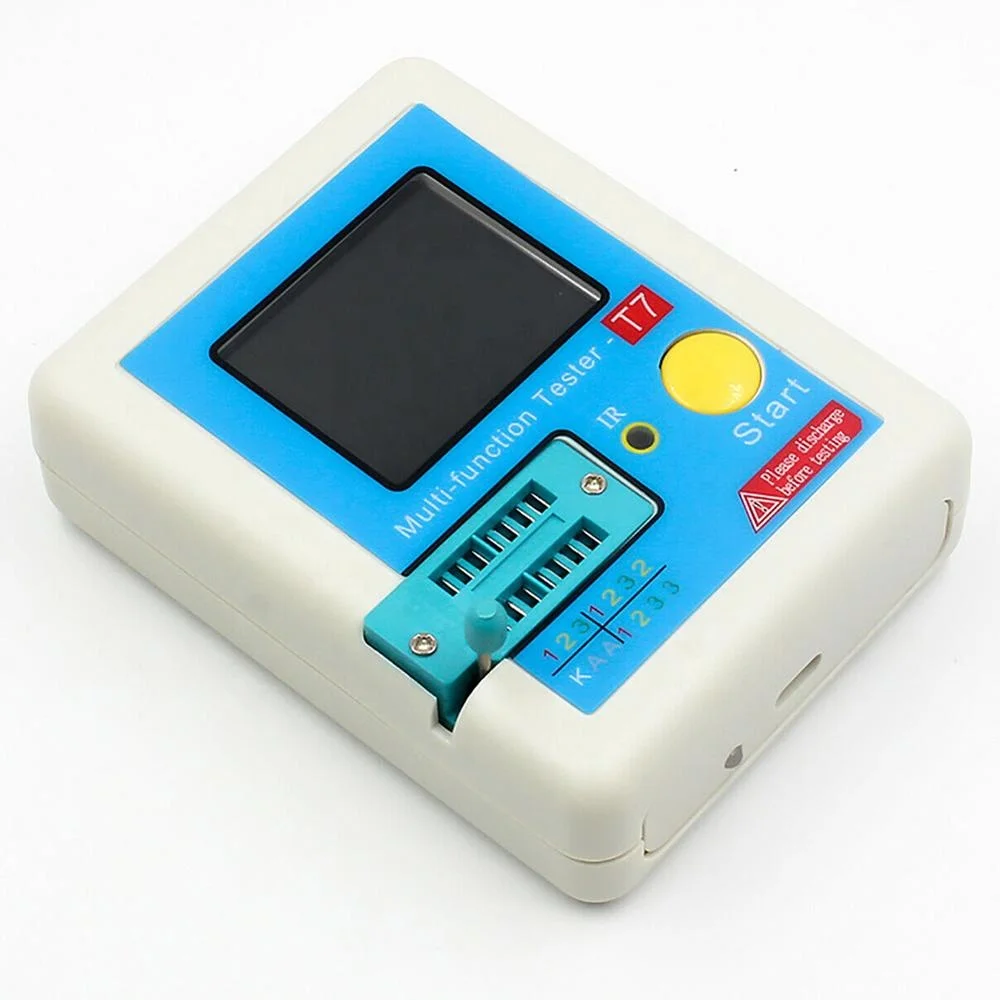

A full color display multi-function test instrument The test socket is divided into a transistor test area and a Zener diode test area, wherein KAA is a Zener diode test area.
|
1
|
can measure triode, diode, resistor, capacitor, inductor, thyristor, FET, Zener diode, dual diode, LED, etc.
|
|
2
|
can measure voltage
|
|
3
|
built-in lithium battery, long battery life
|
4, infrared decoding function a, point the infrared remote control to the "IR" test hole of the tester, press the remote control button If the tester decodes successfully, the user code and data code are displayed, and the corresponding infrared waveform is displayed. If the decoding fails or cannot be decoded, the user code and data code are not displayed. At this time, if the tester interface cannot enter the infrared decoding interface, if the infrared decoding interface still displays the last successful decoding information. b, the upper right dot is used to indicate whether the infrared data of the remote controller is received, the red indicates that infrared data is being received, and the blue indicates that the decoding is successful. 5, automatic calibration Short the three test sockets, press the multi-function button shortly, and the tester will automatically calibrate. No other operations are required after disconnecting the short wiring according to the prompt during the calibration process.
Note
1,Please use external 5V power supply or mobile phone USB power supply for charging.
2,The indicator light is red to indicate that charging is in progress, and the indicator light is green to indicate charging is completed.
3,The charging input voltage is up to 6V. Do not use it under pressure. Otherwise, the tester will be damaged and the battery may explode.
Description:
3.5inch Colorful Display Multi-functional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET
Features:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc. It can also be used to detect infrared wave forms. It also can detect zener diode and has the function of self-calibration. After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form. One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too. Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. Not like the usual black and white display, this detector will show results in color.
Specifications:
Display: 3.5inch TFT Screen Diode Range: < 4.5V Zener Diode: Transistor Detect Area: 0.01-4.5V Zener Diode Detect Area: 0.01-30V Triac Range: IGT < 6mA Capacitance: 25pF-100mF Resistor: 0.01-50MΩ Inductance: 0.01mH-20H Battery: 0.1-4.5V Power Mode: Rechargeable Lithium Battery ( INCLUDED) Item Size: 8.8 x 8 x 2.8cm
Details Images
