* 5V DC power supply
* USB Type-C
* ESP32-based
* 4 MByte Flash + 520K RAM
* 6-Axis IMU MPU6886
* Red LED
* IR transmitter
* Microphone
* 2 Buttons, LCD(0.96 inch), 1 Reset
* 2.4G Antenna: Proant 440
* 80 mAh Lipo Battery
* Extendable Socket
* Grove Port
* Wearable & Wall mounted
* Development Platform UIFlow, MicroPython, Arduino
1/6
${data.index + 1}/${data.total}
Description

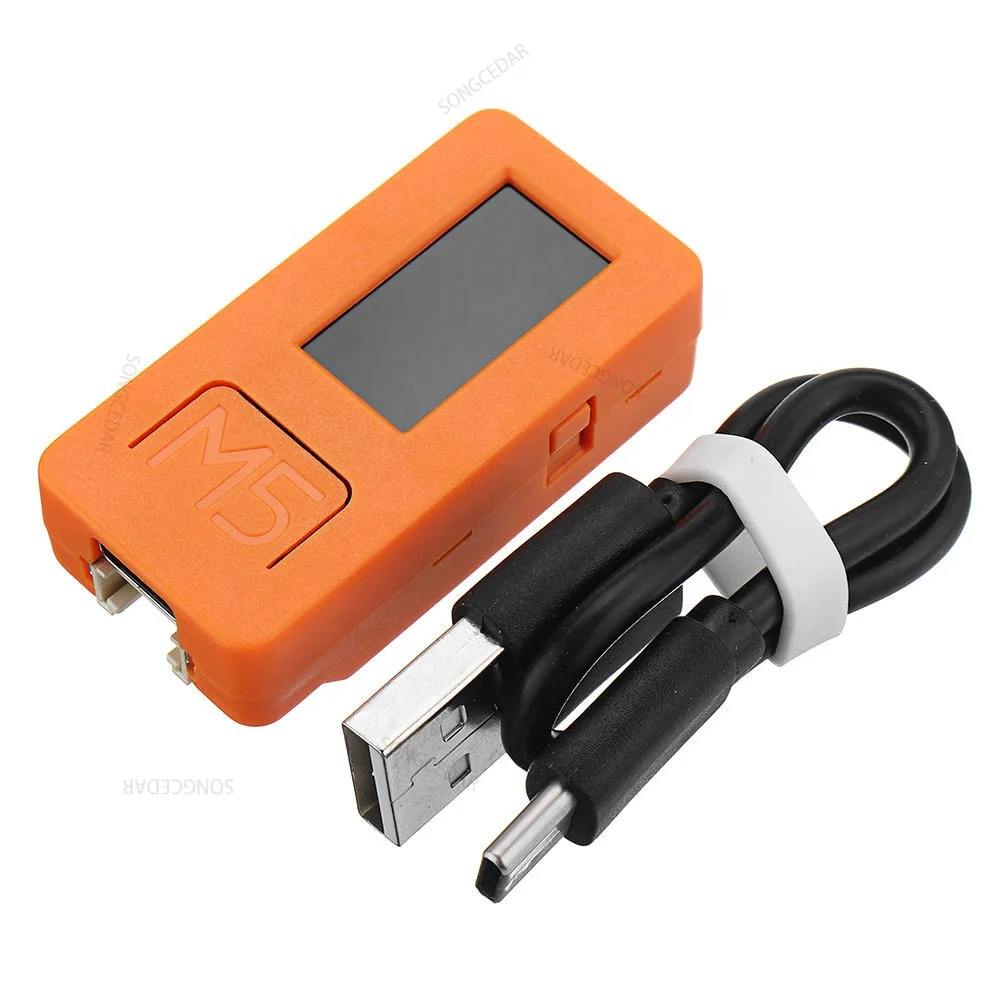

M5STICKC LCD Mini IoT Development Board ESP32 STEM PYTHON Finger Computer M5STICKC ESP32 pico
Product Description
M5Stick-C is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a
very short time. It will takes away a lot of the pains form the development process.
M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem.
It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.
Notice:
* Only Orange type is available for now
What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a
very short time. It will takes away a lot of the pains form the development process.
M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem.
It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.
Notice:
* Only Orange type is available for now
Product Features
|
ESP32 Features
|
||
|
1
|
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
|
|
|
2
|
Integrated 520 KB SRAM
|
|
|
3
|
Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
|
|
|
4
|
Integrated dual mode Ble (classic and BLE)
|
|
|
5
|
Hall sensor
|
|
|
6
|
10x capactive touch interface
|
|
|
7
|
32 kHz crystal oscillator
|
|
|
8
|
PWM/timer input/output available on every GPIO pin
|
|
|
9
|
SDIO master/salve 50MHz
|
|
|
10
|
SD-card interface support
|
|
Details Images
