LCD Display Battery Voltage Level Indicator Lithium Battery Power Indicator Monitor 48V 36V 24V 12V Battery Monitor
Product Description

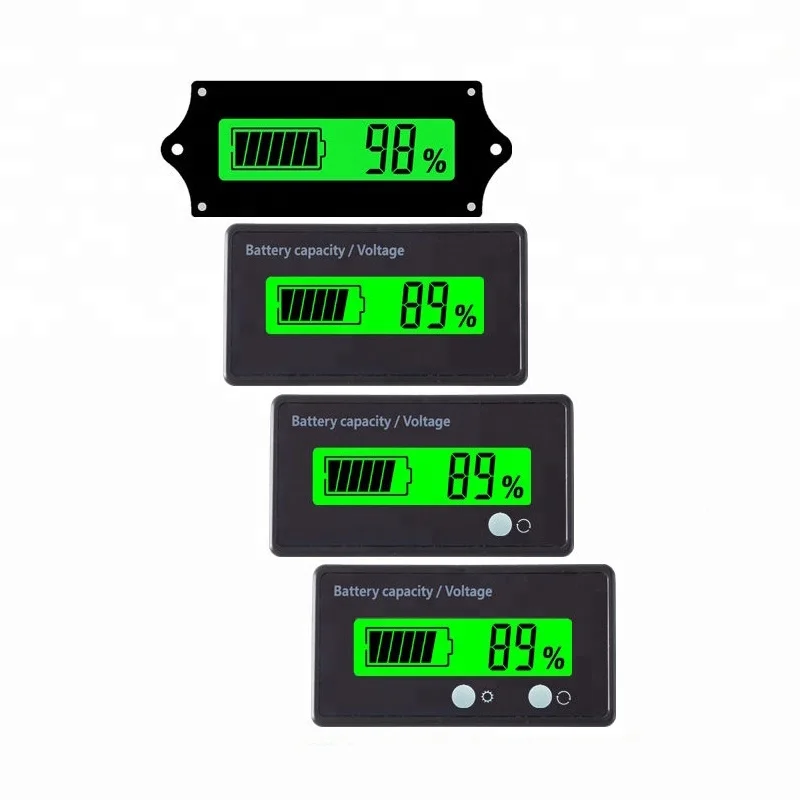

Appearance:Y6, Y6H, Y6D, Y6S, if you need other style, please leave us a note
light color: blue,green,white(default sent green color)
|
The following battery specifications support self-setting
|
||||||||||
|
Applicable battery type
|
||||||||||
|
Type of battery
|
Setting code
|
Type of battery
|
Setting code
|
Type of battery
|
Setting code
|
|||||
|
Lead-acid battery
|
P
|
Lithium battery
|
L
|
Lithium iron phosphate battery
|
F
|
|||||
|
Type of battery
|
Battery range
|
||||||||||
|
Lead-acid batteries
|
12V 24V 36V 48V
|
||||||||||
|
Lithium battery
|
3strings 4strings 5strings 6strings ......15strings 16strings 17strings
|
||||||||||
|
Lithium iron phosphate battery
|
3strings 4strings 5strings 6strings 7strings ......14strings 15strings 16strings
|
||||||||||
Application
quickly detect the capacity of lithium batteries and lead-acid battery packs of various instruments, measuring equipment, mobile portable equipment, sweeping machines, balance vehicles, battery vehicles, etc. Intuitive battery symbol display plus percentage accurate display. High-contrast LCD screen for long-term clear display in dark or bright light, lead-acid battery, battery, battery, water battery, winding battery, lithium battery, 18650 polymer, can be used
Note
1,The product has reverse connection protection, and the reverse will not burn out;
2, lead-acid battery Lithium battery is universal, can be adjusted through the back button;
3, can display battery symbol + percentage or battery symbol + voltmeter, two display modes switch freely
4, the product has only two lines, the wiring is simple, equipped with a wiring socket, the line length is 300mm;
5, all battery specifications and function selection are set by the back button, no soldering iron;
2, lead-acid battery Lithium battery is universal, can be adjusted through the back button;
3, can display battery symbol + percentage or battery symbol + voltmeter, two display modes switch freely
4, the product has only two lines, the wiring is simple, equipped with a wiring socket, the line length is 300mm;
5, all battery specifications and function selection are set by the back button, no soldering iron;
Setting
1. Disconnect the power supply of the electric quantity display module,press and hold the setting button, release the setting button after the power supply is connected to theele ctric quantity module,and display the current setting parameters of the electric quantity on the display screen;
2. Press the setting buttonto select the battery specification P/L/F(P=12V lead-acid,L= 3.7V lithium battery, F= 3.2v lithium iron phosphate battery);
3. Press the function key to set the number of battery strings,press the function keys and the setting keys to select the number of batteries in series up or down;
4. Press function key to enter advanced setting interface, use setting key to select S1-S5, confirm key to select or cancel
selected mode;
5. After the setting is completed,the power is turned on again,and the power automaticall- y saves the setting data;
For Example: 10 series of lithium battery power, power percentage and voltage are autom- atically displayed in rotation after opening (S1 mode)Operation: Disconnect the power of the display module, press and hold the setting button, and then turn on the power module. Press the setup button shortly to select L, press the function button to select 10, and press the function button to select S1.and then connect power again.
2. Press the setting buttonto select the battery specification P/L/F(P=12V lead-acid,L= 3.7V lithium battery, F= 3.2v lithium iron phosphate battery);
3. Press the function key to set the number of battery strings,press the function keys and the setting keys to select the number of batteries in series up or down;
4. Press function key to enter advanced setting interface, use setting key to select S1-S5, confirm key to select or cancel
selected mode;
5. After the setting is completed,the power is turned on again,and the power automaticall- y saves the setting data;
For Example: 10 series of lithium battery power, power percentage and voltage are autom- atically displayed in rotation after opening (S1 mode)Operation: Disconnect the power of the display module, press and hold the setting button, and then turn on the power module. Press the setup button shortly to select L, press the function button to select 10, and press the function button to select S1.and then connect power again.
