Description
Product Description

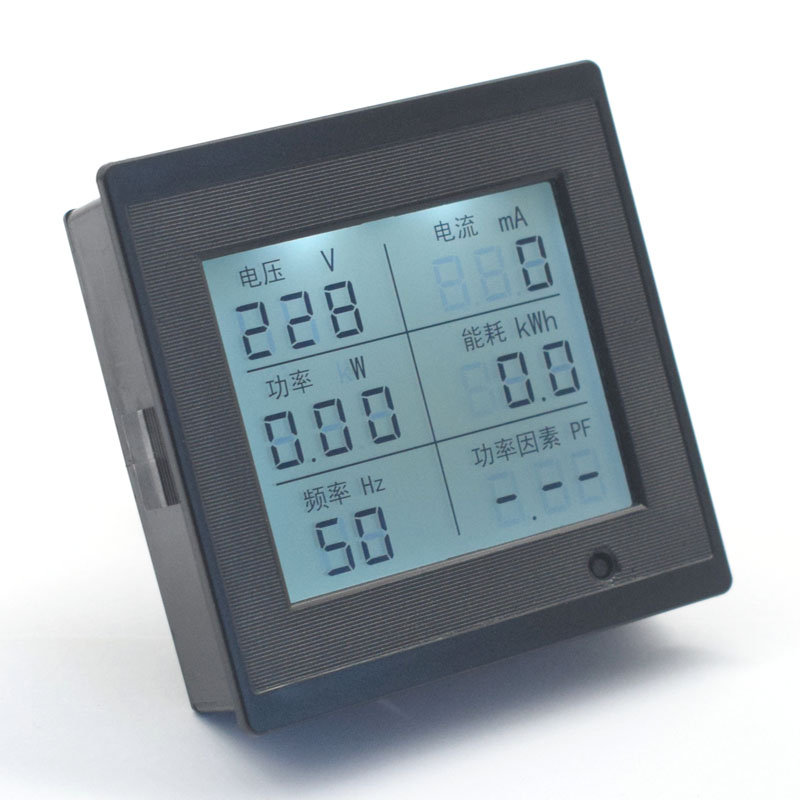

LCD Digital Display AC Voltage Current Power Frequency Meter Power Factor Meter AC80-300V Monitor Household Multi-function Meter
Product characteristics 1. Electrical parameter measurement function (voltage, current, power, energy consumption, time, impedance)2. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing prompt)3. Overload alarm function (over power alarm threshold, backlight and power flashing prompt) 4. Power, time button zero function. 5. The data saving function is powered off 6. Backlight function
Product parameter Measuring voltage :C80-300V Measuring current: 0-20A Measuring power: 0-4.4KW Measured energy consumption: 0-999KW Measurement frequency :40-65HZ Power factor: 0-PF Overload alarm: can be set Voltage alarm: can be set Installation mode: most in Connection type: fence type terminal Module size: Length * width * height 68mm*68mm*22mm Net weight: 60g Panel openings: length and width 63mm x 63mm Product packaging: carton
