Description
Product Overview

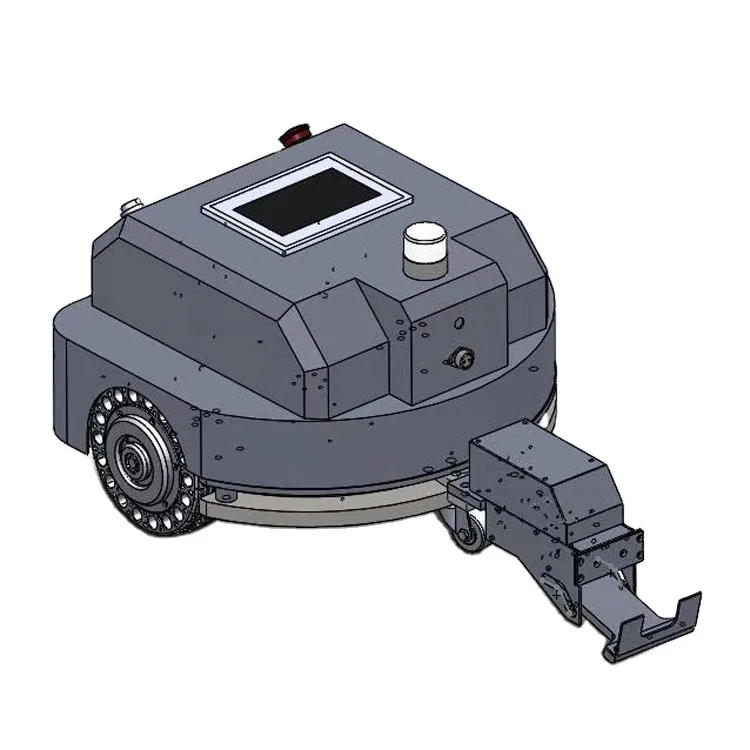

Magnetic Navigation Towing AGV
The towing AGV has small size, compact structure and flexible handling. The trolley can be towed directly through the hook at the end of the AGV.
This model is mostly used for material distribution in the industry factory.
PRODUCT SPECIFICATIONS
Item
Specifications
Dimensions
L806*W566*H400mm
Navigation method
Magnetic navigation
Direction
Forward, turning
Maximum speed
1.5m/s
Traction load
100kg
Battery
Lifepo4 battery, 36V&40Ah
Charing method
Manual charger
Safety sensing distance
3m
Obstacle avoidance method
Ultrasonic( Infrared is optional)
Power system
Servo motor
Dimensions
Details Images
Advantages
The design of this AGV tial is flexible, and the hook can swing freely, which will reduce the shaking of the tail frame when turning, and the operation will be more stable.
