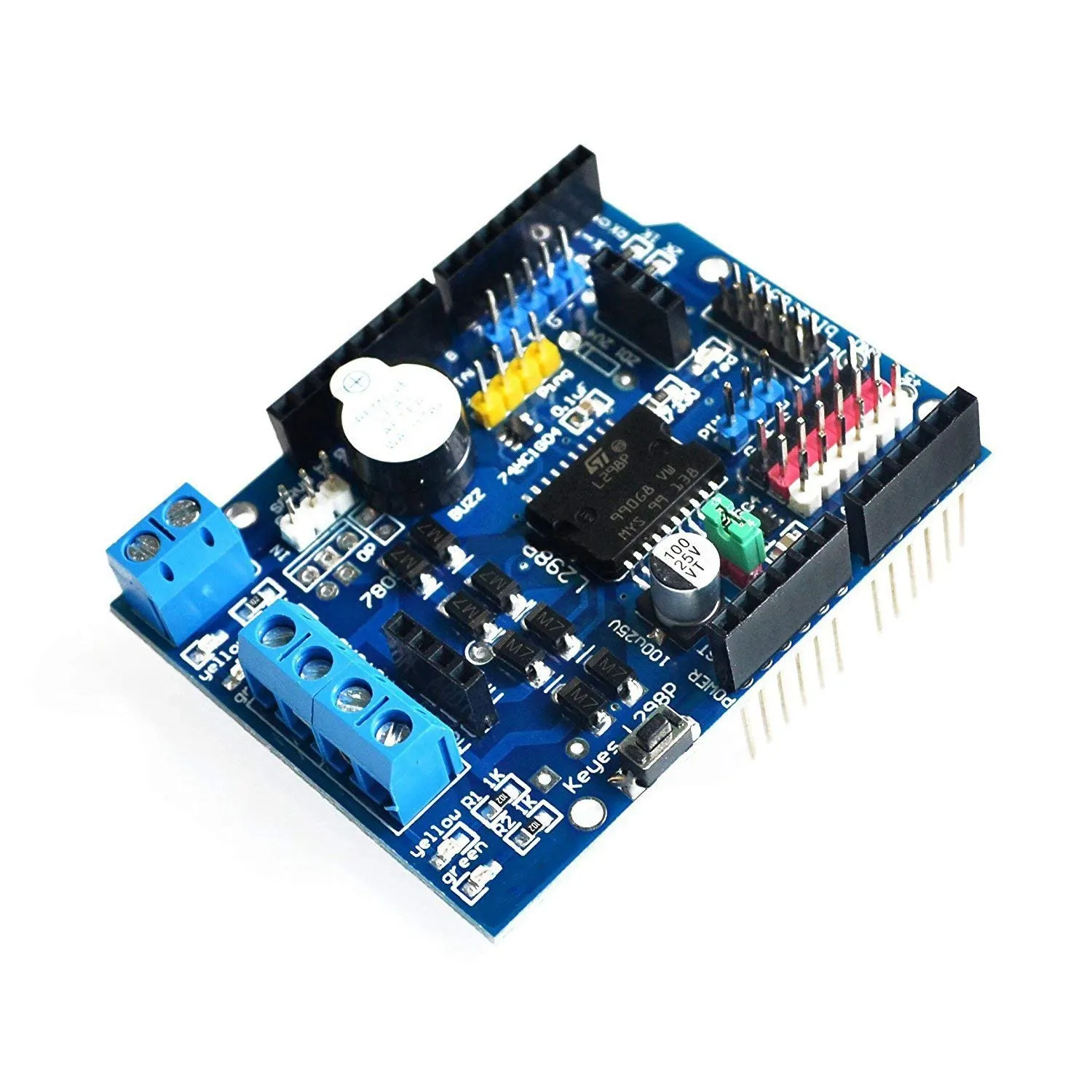

L298P DC Motor Driver Shield Module Stepper DC Motor Drive Controller Board Drive Expansion Board
Product Description
The L298P Shield DC motor driver adopts L298P, a special driver chip for high-power motors from LGS, which can directly drive 2 DC motors with a driving current of 2A. The motor output is protected by 8 high-speed Schottky diodes. The stacked design can be directly plugged into the top, which is more convenient to use!
Specification
|
1
|
Logic part input voltage VD: 5V
|
|
2
|
Input voltage VS of driving part: VIN input 6.5~12V, PWRIN input 4.8~35V
|
|
3
|
Logic part operating current Iss: <36mA
|
|
4
|
Driving current Io: <2A
|
|
5
|
Large power dissipation: 25W (T=75℃)
|
|
6
|
Control signal input level: high level 2.3V<Vin<5V, , low level -0.3V<VIN<1.5v
|
|
7
|
Working temperature: -25~＋130℃
|
|
8
|
Hardware interface: 5.0mm pitch binding posts
|
|
9
|
With a fixed buckle, and can access the control signal through the array
|
|
10
|
Drive form: dual-channel high-power H-bridge drive
|
|
11
|
Pin occupation: D4~D7 directly drive the motor
|
|
12
|
Support PWM/PLL mode motor speed control
|
|
13
|
Size: 68*53mm
|
