Description

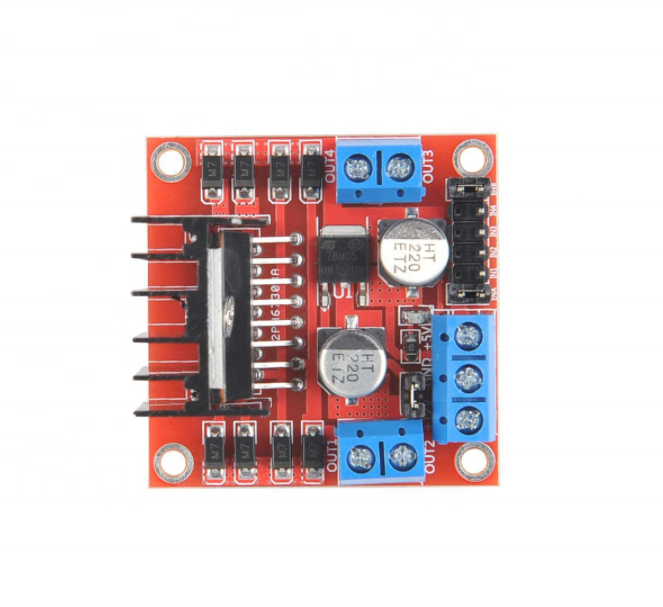

L298N Motor Drive DC Stepper Motor Driver Intelligent Car Robot Accessories L298N DC Dual H Bridge Motor Controller
Product Description
|
1
|
Driver chip: the new L298N dual H bridge DC motor driver chip
|
|
2
|
Drive part of the terminal power supply range Vs: +5 V to +35 V; if the need to take power inside the board, the power supply range Vs: +7 V ~ +35 V
|
|
3
|
Drive part of the peak current Io: 2A
|
|
4
|
Logic part of the terminal power supply range Vss: +5 V to +7 V (can be charged within the board +5 V)
|
|
5
|
Logic part of the operating current range: 0 ~ 36mA
|
|
6
|
Control signal input voltage range:Low level: -0.3V≤Vin≤1.5V High level: 2.3V≤Vin≤Vss
|
|
7
|
Enable signal input voltage range: Low level: -0.3≤Vin≤1.5V (control signal is invalid)
High level: 2.3V≤Vin≤Vss (control signal valid) |
|
8
|
Maximum power consumption: 20W (temperature T = 75 ℃)
|
|
9
|
Storage temperature: -25 ℃ ~ + 130 ℃
|
|
10
|
Drive plate size: 53mm * 43mm
|
|
11
|
Drive plate weight: 35g
|
|
12
|
Other extensions: control direction indicator, logic part of the board to take electrical interface.
|
The L298N H-bridge module can be used with motors that have a voltage of between 5 and 35V DC. With the module used in this tutorial, there is also an onboard 5V regulator, so if your supply voltage is up to 12V , you can also source 5V from the board.
1.DC motor 1 “+” or stepper motor A+
2.DC motor 1 “-” or stepper motor A-
3.12V jumper – remove this if using a supply voltage greater than 12V DC. This enables power to the onboard 5V regulator
4.Connect your motor supply voltage here, maximum of 35V DC. Remove 12V jumper if >12V DC
5.GND
6.5V output if 12V jumper in place
7.DC motor 1 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
8.IN1
9.IN2
10.IN3
11.IN4
12.DC motor 2 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
13.DC motor 2 “+” or stepper motor B+
14.DC motor 2 “-” or stepper motor B-
1.DC motor 1 “+” or stepper motor A+
2.DC motor 1 “-” or stepper motor A-
3.12V jumper – remove this if using a supply voltage greater than 12V DC. This enables power to the onboard 5V regulator
4.Connect your motor supply voltage here, maximum of 35V DC. Remove 12V jumper if >12V DC
5.GND
6.5V output if 12V jumper in place
7.DC motor 1 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
8.IN1
9.IN2
10.IN3
11.IN4
12.DC motor 2 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
13.DC motor 2 “+” or stepper motor B+
14.DC motor 2 “-” or stepper motor B-
