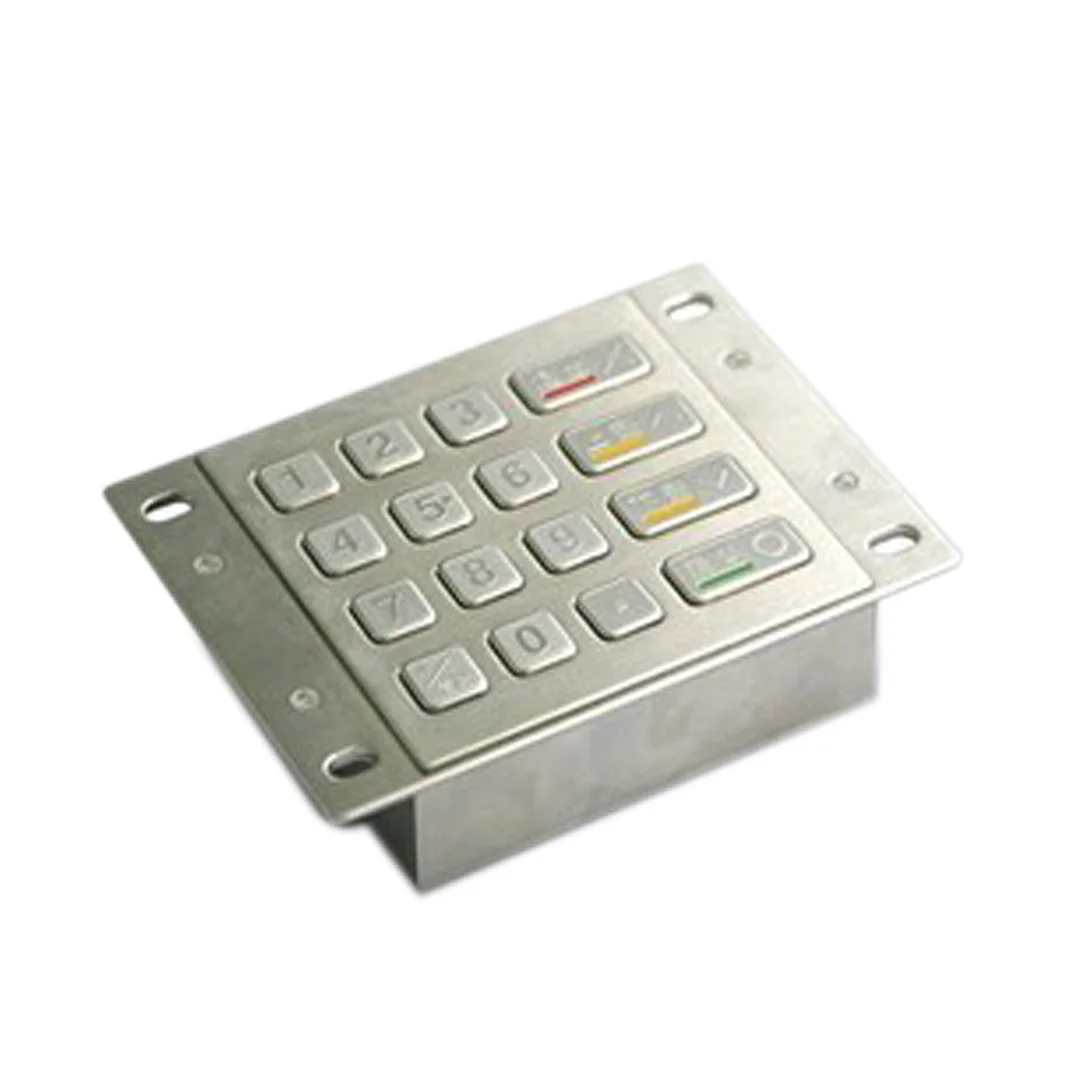

Kiosk metal keyboard payment machine ATM keys parts metal key keypad ATM Pinpad HCK3501A

High quality USB/RS232 Interface Encryption ATM Cover Metal Pinpad HCK3501A

Features

1. Keypad made of high quality stainless steel
2. Customizable layout, dimension and installation design
3. Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
4. Braille key design for visually handicapped people
5. Latest professional security processing chip
6. RS232 connection
7. Ports for optional eight external function keys, beeper and guide light
8. Two types of power supply ports
9. Tamper protection box
10. Secure and reliable protection against power cu

Supporting Software

• A full function, easy-to-use Windows NT/2000/XP compliant device driver
• Standard XFS 2.0 and XFS 3.0 Service Providers, fully integrated with exiting multi-vendor XFS platforms in the marketplace, such as Kalignite (KAL), Aptra (NCR), Protopas (Wincor) and Agilis (Diebold) etc
• 3DES IP65 NEMA 4X Encrypted;
• Self-destruction when dissembling is detected;
• Dustproof, water proof, vandalism resistance,
• shake-proof, pickproof;
• Interface:RS232,
• Supply Voltage: +5V DC +/-5%;
• Lettering: Sunk laser legends & characters in high quality ink;
• Switch life: more than 2 million of operations;
• Actuator/keys materials: 316#(RoHS) stainless steel;
• Customizable keys;
• Cert:Pass the certification of , China Central Bank card testing center; CE, RoHS, FCC
• ANSI 9.8 PINBLOCK:
• ANSI, IBM3624, ISO0, ISO1, ISO2, ISO3, DIEBOLD, DIEBOLDCO
• IP Protection Class IEC/DIN/EN/ 60529:IP65
• IK Protection Class DIN EN 50102:IK07
• Faceplate dimensions:100X91.5 mm;
• GW:0.75KG

Logical Security Features

1. PIN encryption in a secure module
2. Multi-layer, flexible encryption key management
3. Multiple independent detection mechanisms for ensuring the PIN security

Environment Requirements

1. Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
2. Operating temperature range: –25℃-45℃
3. Storage temperature range: –25℃-65℃
4. Maximum humidity in operating environment: 80%
5. For security reasons, the user PIN is deleted when the environment temperature is beyond the storage temperature range. The target level for this function is set to –30℃

Dimensions

Sizes
