Description

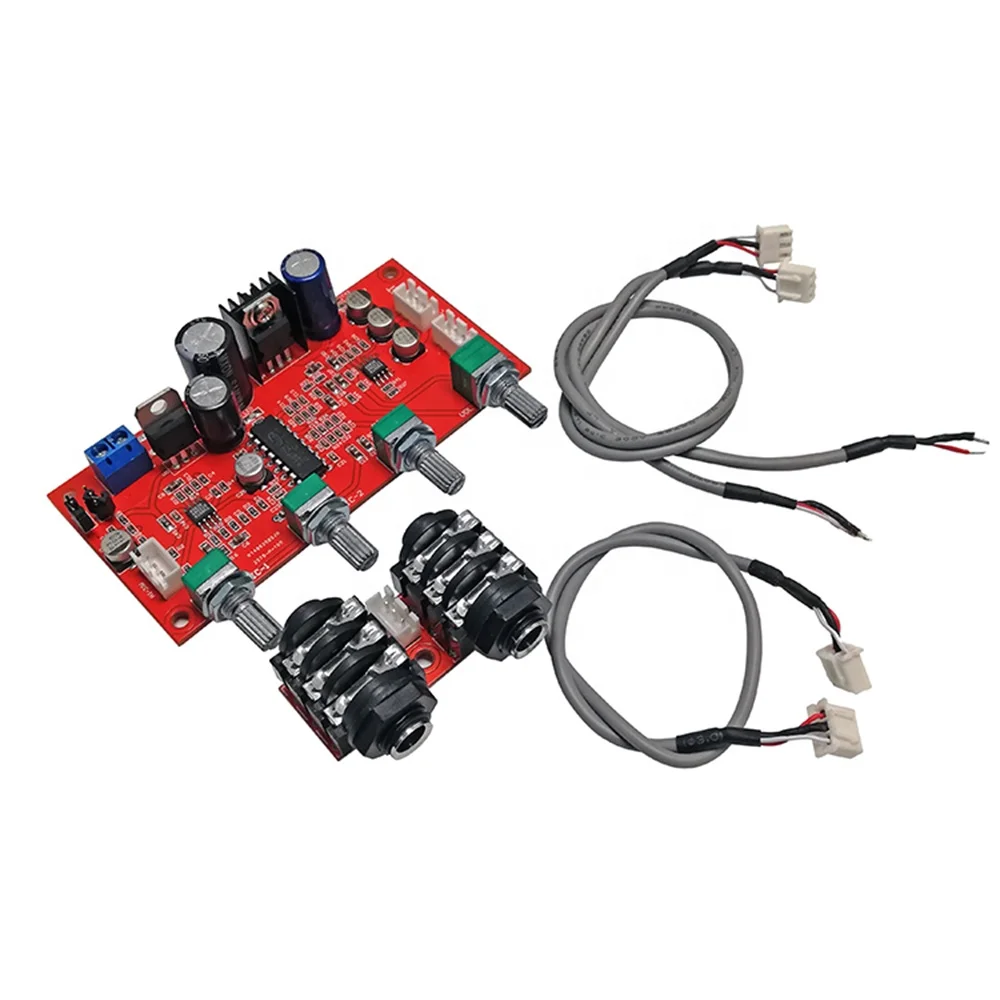

Karaoke Board Microphone Mixing Board for Electret Microphone Mic Board PT2399 Reverbe Circuit with AD828 Preamp
Product Description
Product introduction:
The microphone board adopts karaoke special chip PT2399, the patch technology, the performance is stable, the microphone board front and rear stage amplification adopts AD828 enthusiast-level operational amplifier chip, through the jumper cap setting, the electret microphone and the moving coil microphone can be used, the power supply The power supply adopts a single power supply and has a rectifier circuit, which can be used for both AC and DC.
|
Working voltage
|
AC 6V-15V/DC 7-24V
|
|
Board size
|
100mm*50mm
|
|
Potentiometer spacing
|
25mm (red version)
|
