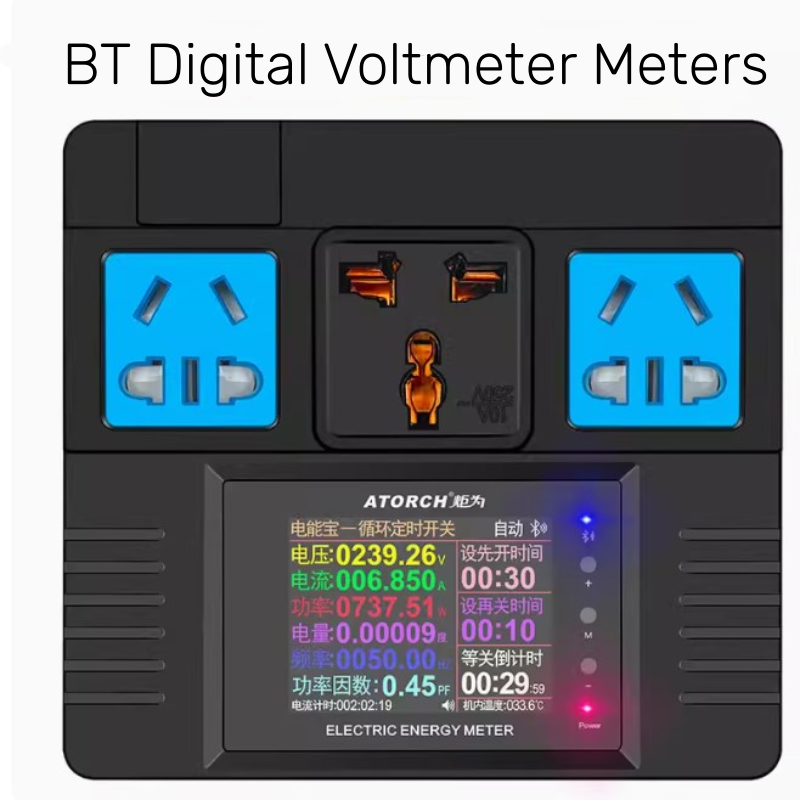

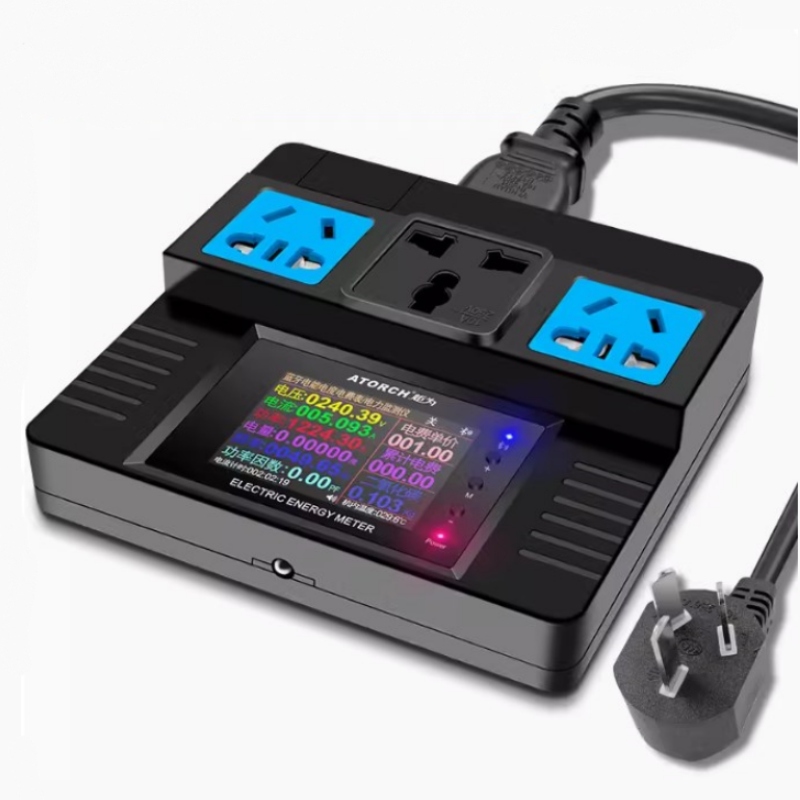

JL24 AC220V/16A 2.4" Digital Voltmeter Meters Indicator Power Energy Ammeter Current Amps Volt wattmeter Timing Tester Detector
Electrical parameters
Measuring AC voltage range: AC85 ~ 265V
Measuring power range: 0 ~ 3680 W (0 ~ 3680W)
Measuring current range: 0 ~16A
(Function continues to improve)
Main Features:
1.The full digital operation and control.
2.2.4 - inch true color TFT LCD display.
3.1.0 - level measuring accuracy.
4.Three operation keys.
5.7 in 1 functional test windows display
6.After power on, this device keeps the last working state and is OFF
7.You can measure the electricity (KWH) and the cumulative electricity bill (Cost), and you can set the electricity price in different countries!
8.Our products support three APP connection modes: IOS, Android and computer
9. It has Alarm and Cut OFF working function,when the voltage, current, power exceeds setting can be set to alarm and Cut OFF working
10.Small size, beautiful appearance, Easy install, suitable for all kinds of electrical equipment for measurement.
2.4 " 7 kind of large function display interface
1.Start screen
2. Main function interface
3.Security protect interface
4. Smart power off protection (A)
5.Smart power off protection (B)
6. Timing power supply interface
7. Timing Cycle interface
8. Timing Countdown switch interface
1) Apple Mobile APP:
Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection JL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and Measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc.
2) Android phone APP:
Scan the QR code on the back of the host to download the corresponding APP software or Android APP: search E-test at Google play to down load . After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of JL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can)
3) Computer Bluetooth wireless online APP:
First add the Bluetooth device to the serial port device of JL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online
Application scenarios
