It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Description
Products Description
General Description

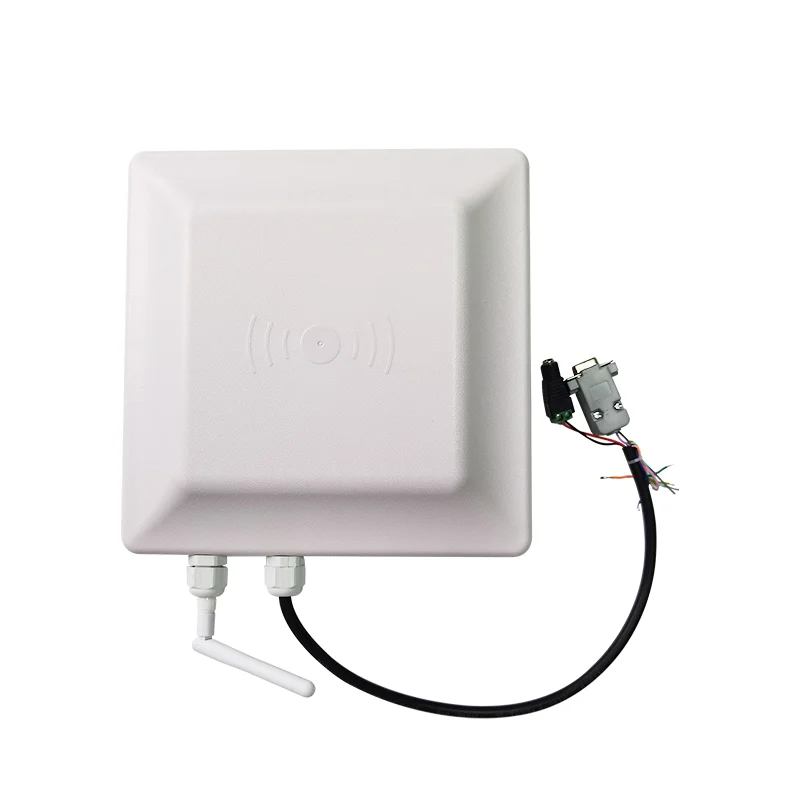

It is a High Performance UHF Middle Range Integrated Reader. It supports fast tag read/write operation with high identification rate.
Application:
Vehicle no-stop toll management (car parking lot)
Logistics and warehouse management
Production flew-line management
Animals' recording management
Products anti-counterfeiting detection
Logistics and warehouse management
Production flew-line management
Animals' recording management
Products anti-counterfeiting detection
Other field:
Club management
Library management
School and factory access control
Attendance management and more
Library management
School and factory access control
Attendance management and more
Features:
1. Base on Read/Write Chip;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dBm (adjustable);
6. 7dBi circular antenna with effect distance up to 0m~10m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
* Effective distance depends on antenna, tag and environment.
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dBm (adjustable);
6. 7dBi circular antenna with effect distance up to 0m~10m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
|
Model
|
Interface
|
|
|
SW6907
|
Standard(RS232, RS485, Wiegand,Trigger)
|
|
|
SW6907T
|
Standard with RJ45
|
|
|
SW6907W
|
Standard with WIFI
|
|
|
SW6907TW
|
Standard with RJ45 and WIFI
|
|
|
SW6907TP
|
Standard with RJ45 and POE
|
|
|
SW6907TPW
|
Standard with RJ45 and POE and WIFI
|
|
|
SW6907R
|
Standard with Relay
|
|
|
SW6907U
|
Standard with USB(HID & Keyboard)
|
|
|
SW6907G
|
Standard with 4G
|
|
|
-T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB –G: 4G
|
-T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB –G: 4G
|
|
