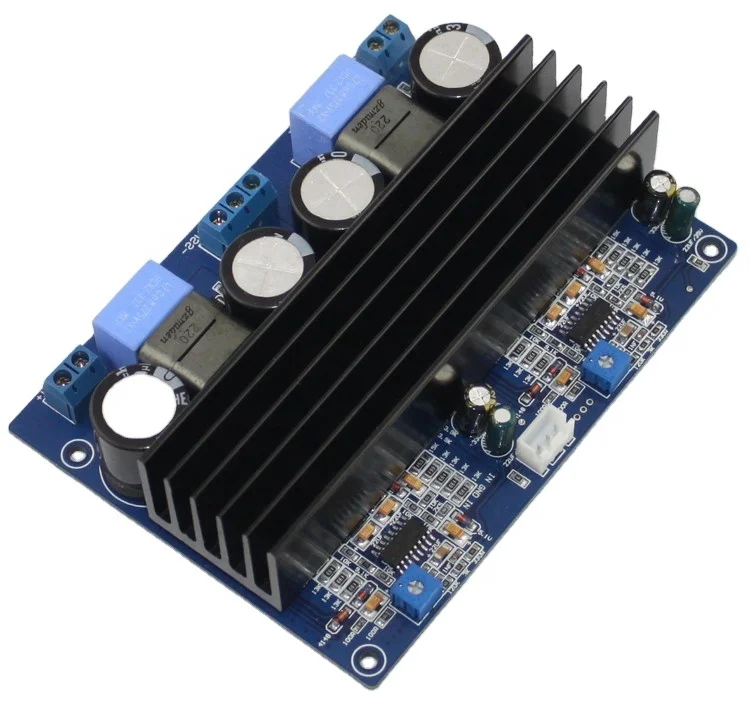

IRS2092 DC Digital Class D Power Amplifier Board 200W+200W Small Size Two Channel Stereo Power Amplifier
Product Description
1, Use original IRS2092, IRFI4019. 2, The main circuit of electrolytic capacitor signal adopts international famous brand, and the main filter capacitor adopts Nikon capacity of 330UF/100V*2 to ensure strong and continuous power support. 3. The resistance selects 0805 0603 high-precision chip resistors to ensure a good signal-to-noise ratio of the whole machine. 4. The PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents. First-class PCB quality. 5. Use 20A high current shielding inductor to ensure clear and powerful sound. 6, Very small size and high power.
Specification
|
Working method
|
Class D
|
|
Quiescent current
|
20mA
|
|
Work efficiency
|
90%
|
|
Rated output power
|
200W+200W
|
|
Frequency response
|
20Hz to 20KHz
|
|
Working voltage
|
±40V to ±60V
|
|
Recommended power supply voltage
|
±50V
|
|
Maximum output current
|
8A
|
|
PCB size
|
88*116MM
|
Details Images
