Description
Product Description

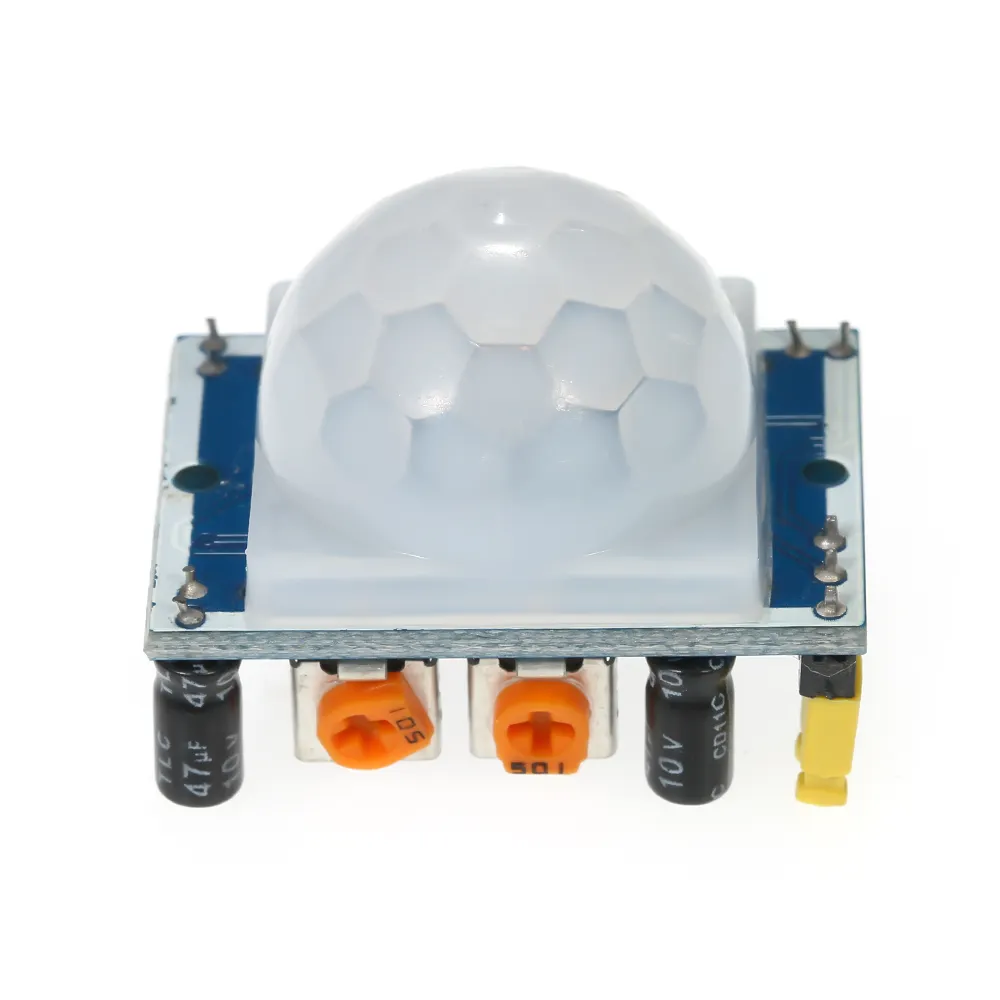

IR Pyroelectric Infrared PIR Motion Sensor Module HC-SR501

Features:
Adopted with original imported probe design that has high sensitivity and more reliable.
Infrared sensor with control circuit board.
The sensitivity and holding time can be adjusted.
Trigger Method: L can not be repeated trigger, H can be repeated trigger(Default repeated trigger).
Delay time: 0.5-200S(adjustable) the range is (0.xx second to tens of second).
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds).
Wide Application: for the automatic lighting in the corridor, rest room, basement, warehouse, garage, etc, the auto ventilation of air exhaust fan, and more.

Specifications:
Material: PCB
Voltage: 4.5-20V
Static Current: <50uA
Working Temperature: -15~70℃
Detection Angle: <100° cone angle
Detection distance: within 7m
Blockade Time: 2.5s(default)
Delay Time: 0.5-200s(can be adjusted, default 5s +-3%)
Trigger Method: L: unrepeatable trigger / H: repeatable trigger(default)
Induction Lens Diameter: 23mm / 0.91in
Item Size: 32 * 24mm / 1.2 * 0.94in
