Description
Product Description
|
Physical Parameter
|
||
|
Size
|
45mm×35mm×10mm
|
|
|
Material
|
Conductive Silicone
|
|
|
Color
|
Black
|
|
|
Weight
|
45g
|
|
|
Packing
|
Corrugated box (can be customized)
|
|
|
Environmental Parameters
|
||
|
Working Humidity
|
<95%
|
|
|
Working Temperature
|
0 ~ 50℃
|
|
|
Storage Temperature
|
-20℃ ~ 50℃
|
|
|
Protection Level
|
IP65
|
|
|
Performance parameter
|
||
|
Static (standby) working current
|
< 15uA(Continuous standby time <500 days)
|
|
|
Operating current
|
< 2MA (continuous working time <100 hours)
|
|
|
Operating Voltage
|
3.7V
|
|
|
Working frequency
|
2.4GHz-2.5GHz
|
|
|
Working Current (Transmit signal)
|
<18mA (Pulse mode)
|
|
|
Battery Life
|
4-5 Years ((theoretical value)
|
|
|
Collision Ability
|
>200PCS
|
|
|
Transmit Time
|
Active 1 time per second / Passive 3 to 4 times per second
|
|
|
Receiving sensitivity
|
-90dBm
|
|
|
Working Mode
|
Read-only
|
|
|
Working Method
|
Active/Passive /Active-passive combination
|
|
|
Low/High Frequency
|
125K/13.56Mhz (Optional)
|
|
|
Disassemble alarm
|
Yes (can be removed)
|
|
|
SOS
|
Yes (can be removed)
|
|
|
Blood pressure monitoring
|
Optional
|
|
|
Heart rate monitoring
|
Optional
|
|
|
Acceleration alarm (attack, fall)
|
Optional
|
|
|
Screen
|
Optional
|
|
Product Summary

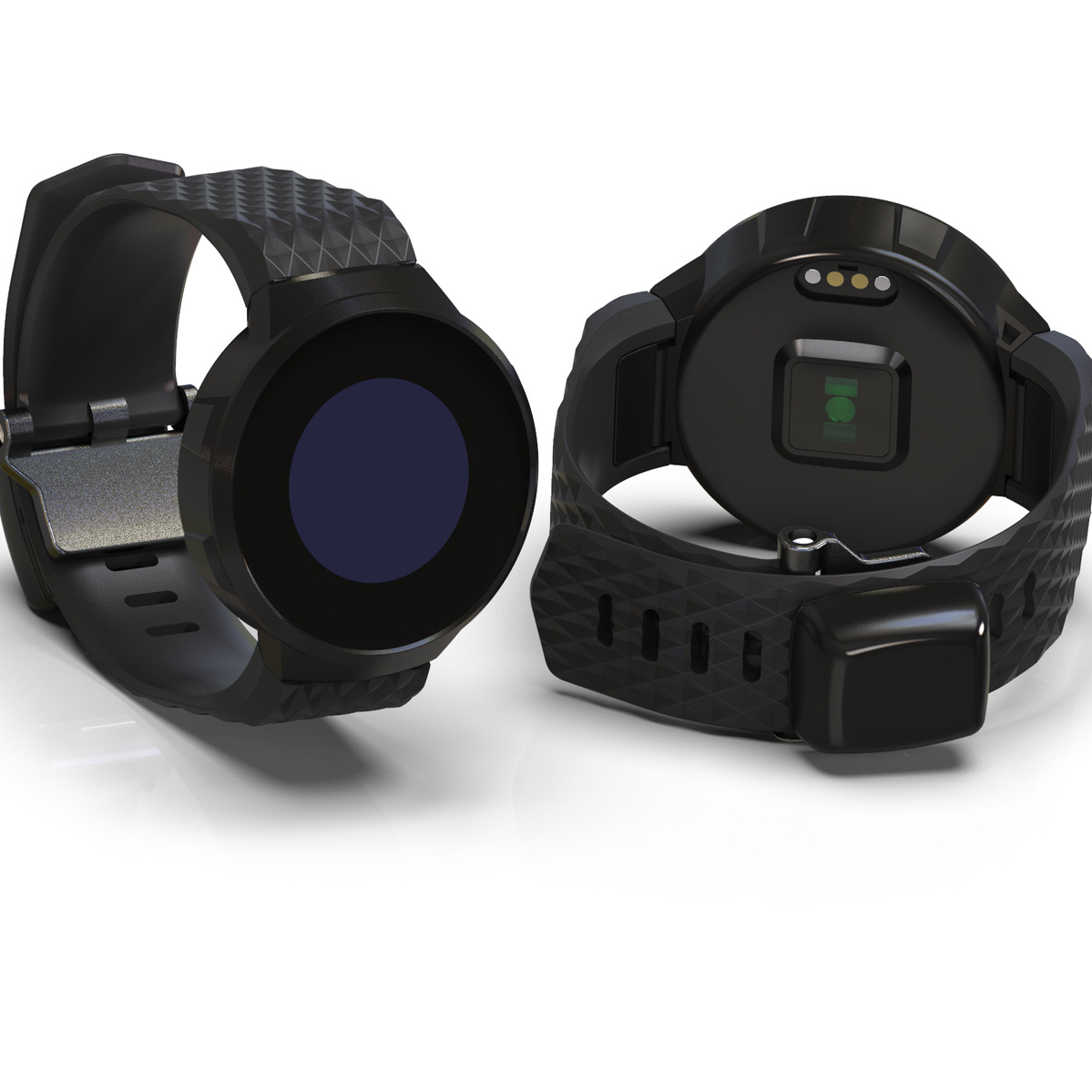

magnetic buckle bracelet can have multiple operating frequencies. 2.4GHz can be recognized from a long distance, and the low-frequency 125K can accurately find the positioning . Composite IC short-range access control reading function, can realize multiple applications.
Product Feature
● Reading: Compared with bar code, there is no need to scan in a straight line, the reading speed is faster, and multi-tag recognition and motion recognition can be performed; ● Security: Anti-tampering, encryption algorithm and authentication to ensure data security and durability; ● Dedicated chip, unique serial number, difficult to copy. Durability without mechanical failure, fully sealed structure resistant to harsh environments4. ● Tag ID number: 10 bytes; ● Reading Type: Read-only; ● Duration of use: Built-in 200MAh rechargeable lithium polymer rechargeable battery, long service life; ● Waterproof: IP65; ● Reading Distance: Adjustable; ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● High speed recognition: recognition speed can reach 40 km/h; ● High anti-interference: no special requirements for various interference sources on the site; ● Wearing Method: On wrist; ● Anti-electromagnetic interference: 10V/m0.1 ~ 1000MHz AM, AM electromagnetic wave. ● Reliability: anti-disassembly, waterproof, can build in low frequency 125k or high frequency 13.56M
Applications ●Location of personnel in the case handling area
●Orientation of nursing home staff
●Student running area
●Prison card or regional personnel positioning
●Positioning of construction personne
●Personnel access management
●School attendance Management ●Orientation of nursing home staff
●Orientation of nursing home staff
●Student running area
●Prison card or regional personnel positioning
●Positioning of construction personne
●Personnel access management
●School attendance Management ●Orientation of nursing home staff
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with trading department
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 8-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
B: Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory with trading department
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 8-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
B: Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What's the after-sales services?
A: Each of our products are inspected by QC department,100% ensure the perfect quality before shipment. We will replace it if you receive defective products. We are responsible for each products we sell.
