Description
Product Description

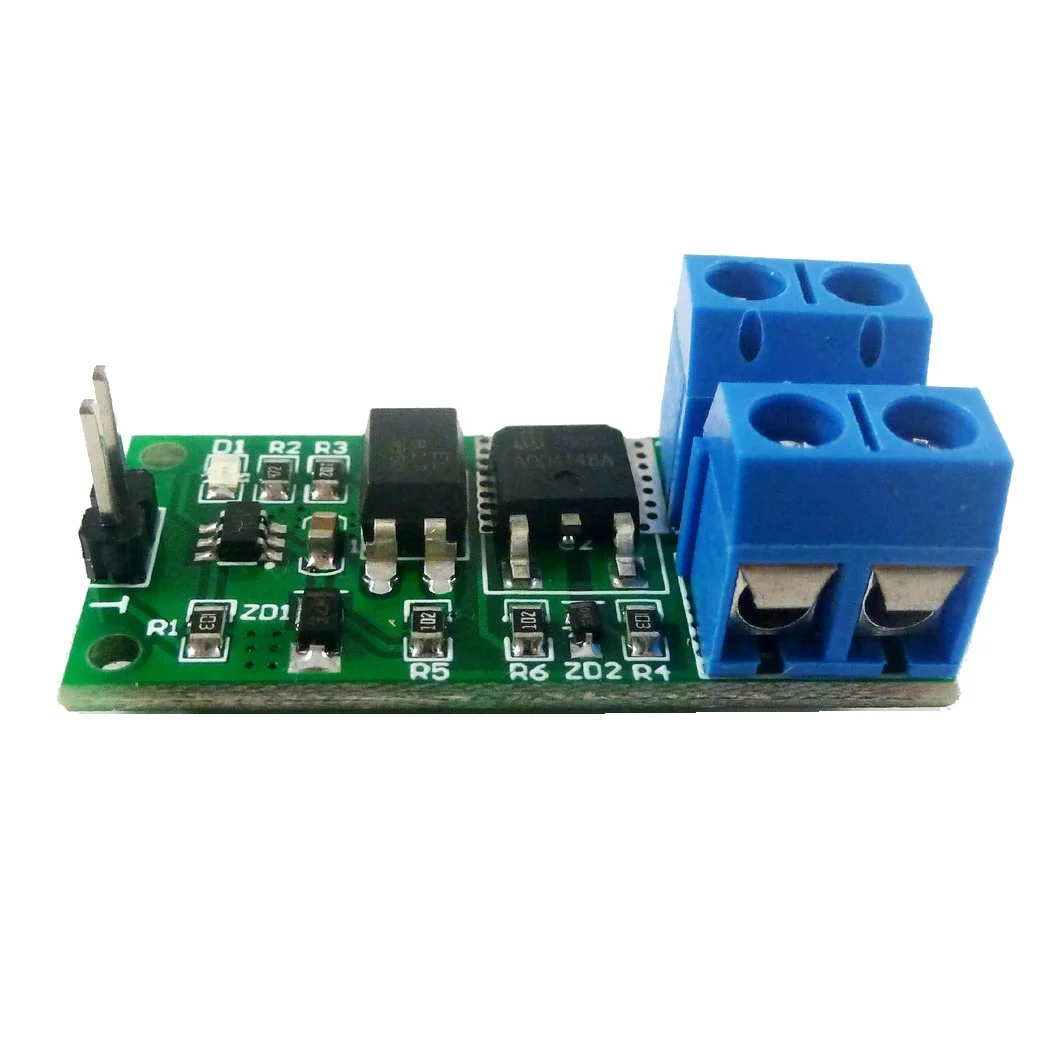

IO95A01 3.7V 5V 9V 12V 24V 8A Isolation Bistable Flip-Flop Latch Self-locking Low-Trigger Switch Module Mos Board





Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power,Optical Isolation.

Electrical parameters:

Power supply voltage:DC 3.3-12V(L3V3-12V Version);DC 9-24V(H9-24V Version)

Standby current:less than 0.11-1mA

Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A

Allowing continuous output current:
L3.3-12V Version : 3A(3.3V-3.7V);5A(3.7V-5V);6A(5V-9V);8A(9V-12V)
H9-24V Version : 8A(9V-15V);6A(15V-24V)

Size: 36 * 17.5 * 14mm
Weight: 6g


Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

Pin description:

Vi+:Power Input +;
Vi- :Power Input -;
Vo+:Power Output +;
Vo- :Power Output -;

G:trigger signal input ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).

Applications:

Self-locking electronic switch
ARM MCU Development Board
Motor/Relay /Solenoid valve
IP PTZ camera
esp8266 WIFI Router MODULE
315M 433M Wireless remote controller
PLC MODBUS Device

Smart home/Home automation
