1.Dual power supply (two power sources cannot supply power simultaneously): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V.
2.Working current: (normal mode) standby current 41mA, working current 83mA; (Energy saving mode) The standby current is 7mA, and the working current is 44mA.
3.There are three input control ports: forward control (FWD), reverse control (REV), and stop control (stop).
3.There are two input trigger modes, low pulse trigger mode and low level trigger mode.
4.Delay time: 0.1-9999.9 seconds, 1-9999 seconds, 1-999 minutes.
Number of cycles: No cycles, 2-99 cycles, always cycles.
5.Three indicator lights: forward indicator light (F LED), reverse indicator light (R LED), and stop indicator light (S LED).
6.The load current of the relay is recommended to be less than 5A.

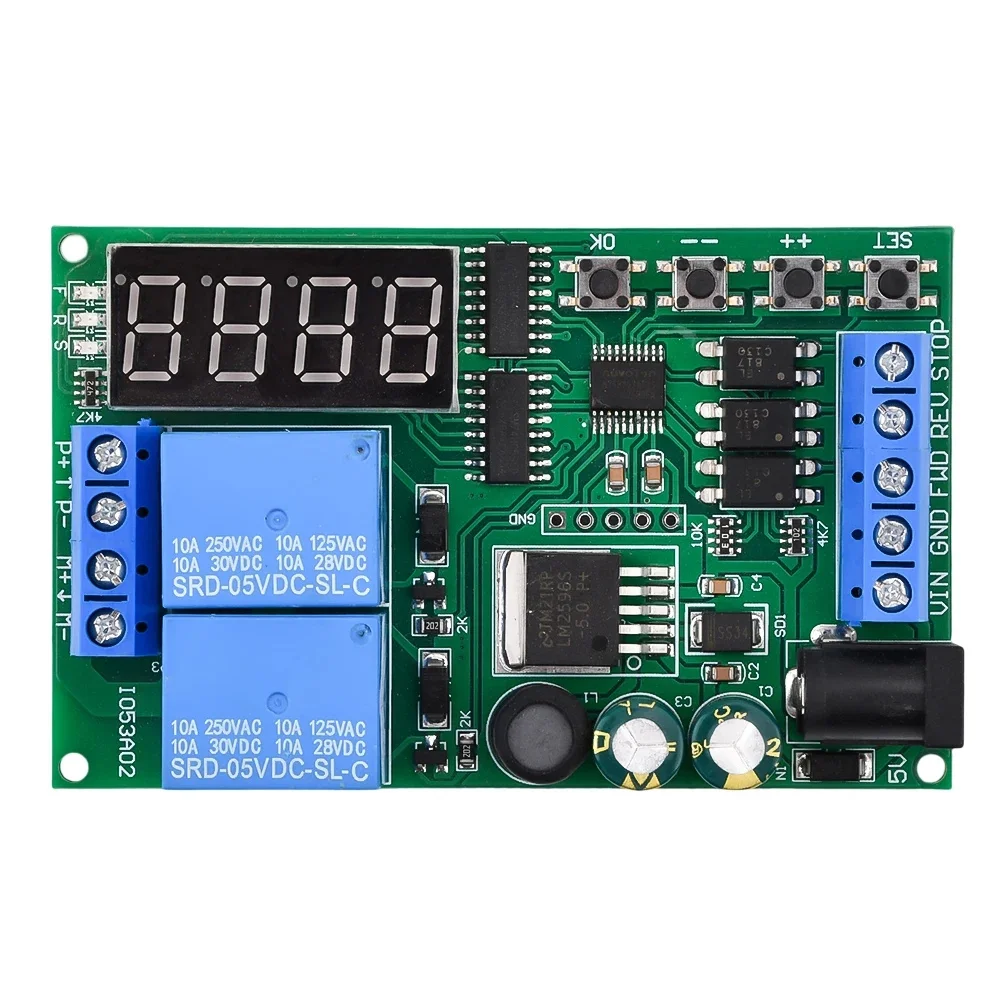

7.This is a multifunctional DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
Parameter:
DC 5.5 female: power supply 1, DC 5V power supply
VIN: Power supply 2 positive pole, DC 6.5-25V power supply
GND: Negative pole of power supply 2
FWD: Forward input control (some functional modes are invalid)
REV: Reverse input control (some functional modes are invalid)
STOP: Stop input control (some functional modes are invalid)
M+: Motor positive pole
M -: Motor negative pole
P+: Positive terminal of motor power supply
P -: Negative terminal of motor power supply
Power supply: DC 5-24V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current:<5A
Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-999 minutes
Trigger mode:
1 low pulse trigger (falling edge trigger)
2 low-level trigger (rising edge trigger)
Timer:
T1: Forward Timer
T2: Reverse Timer
T3: Stop Timer
Time units: 0.1 seconds, 1 second, 1 minute
Relay action:
Motor forward: Relay 1 is turned on, relay 2 is turned off, and the F LED indicator light flashes.
Motor reverse: Relay 1 is turned off, relay 2 is turned on, and the R LED indicator light flashes.
Motor stop: Relay 1 is off, relay 2 is off, and the S LED indicator light flashes.
Factory settings:
Press the "++" and "--" buttons simultaneously for 5 seconds.
Energy saving mode:
Press and hold the 'OK' button for 5 seconds to enter the 'Energy saving mode'. Press and hold the 'OK' button again for 5 seconds to exit the 'Energy saving mode'. The energy-saving mode only needs to turn off the Nixie tube and LED indicator light, and other functions are normal.
Settings:
There are three menus: work menu, function menu, and parameter menu.
Note: When entering the "Function Menu" or "Parameter Menu", the module still operates normally (countdown and trigger operate normally). The parameters set are only valid after being powered on again.
