Description
Products Description
Intel 12th Gen Quad Core N100 Computer 8G DDR5 256G Nvme with Dual Lan Mini PC Linux
Din Rail Vesa 2xRS485 COM Mini Host
Mini PC Linux din rail main features:
1× DDR5 8GB upgrade to 16GB 1× M.2 NV-Me 128GB upgrade to 1TB
1× WiFi 6 / WiFi 5
2× HD-MI +1× DP (both support 4K)
1× USB-C support thunderbolt 4.0(40Gbps)
1× SIM slot for M.2 4G/5G LTE
4× USB-A 2.0, 2× USB-A Gen2×1 (support 10Gbps)
2× RJ-45 Gigabit
2× RS-232 COM ports
1× Audio port
Product Paramenters
|
Mini PC Linux din rail:
|
||
|
CPU
|
Intel® Al-der Lake-N series N100 Quad core Four Threads 3.4GHz
|
|
|
RAM
|
1*DDR5 Ram slot, Up to 16GB (SO-DIMM)
|
|
|
Storage
|
1*M.2 2280 SATA/PCIE interface
128GB upgrade to 1TB |
|
|
1*SATA 2.5-inch HDD/SSD interface
|
||
|
Graphics Card
|
Intel UHD Graphics
|
|
|
Display Port
|
HD+HP+DP triple display
|
|
|
I/O |
4*USB 2-0, 2*USB 3.1
|
|
|
2*Network interface (10/100/1000 Mbps)
|
||
|
2*HD 2.0+1*DP Display Interface
|
||
|
2*DB9 RS232 by default
(Support 1*RS232+1*RS485 or 2*RS422/RS485) |
||
|
1*Audio Interface
|
||
|
2*WiFi antenna interface
|
||
|
1*Power switch,1*power interface
|
||
|
Network |
2*RJ45 Gigabit Network Card
|
|
|
Support 2.4G/5G WIFI communication
|
||
|
Audio
|
Realtek sound card
|
|
|
Supported OS
|
Windows10/11/Linux/Centos/Pfsense
|
|
|
Operating Temperature
|
-10℃~60℃
|
|
|
Relative Humidity
|
10%~90% (non-condensing)
|
|
|
Cooling System
|
Fanless passive Cooling
|
|
|
Motherboard Size
|
120mm * 120mm
|
|
|
Product Size
|
135mm * 125mm * 40mm
|
|
|
Material
|
High-quality all aluminum alloy case
|
|
|
Plugs Type
|
US/JP/AU/UK/EU
|
|
|
BIOS
|
Supports power-on/network wake-up/diskless startup
|
|
|
Installation
|
Desktop type:Wall type/Embedded
|
|
|
Color
|
Black , bulk order quantity can be customized
|
|
|
Power Supply
|
External power adapter, Input AC 100V~240V, Output DC 12V
|
|
Notice:
Mini pc linux din rail price is barebone system and the price not included the RAM, SSD, WIFI.
Please contact us if you need others configuration, we will check best factory price to you.

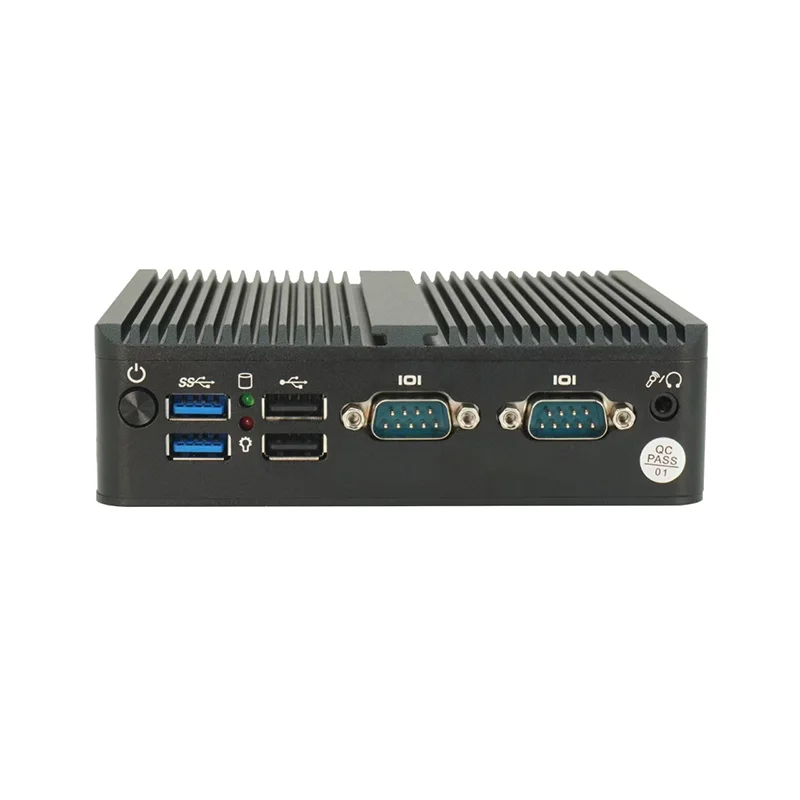

Details Images
