The output power of WCM-300 is 300W, and the wireless transmission efficiency is better than 85%.
Description
Product Overview

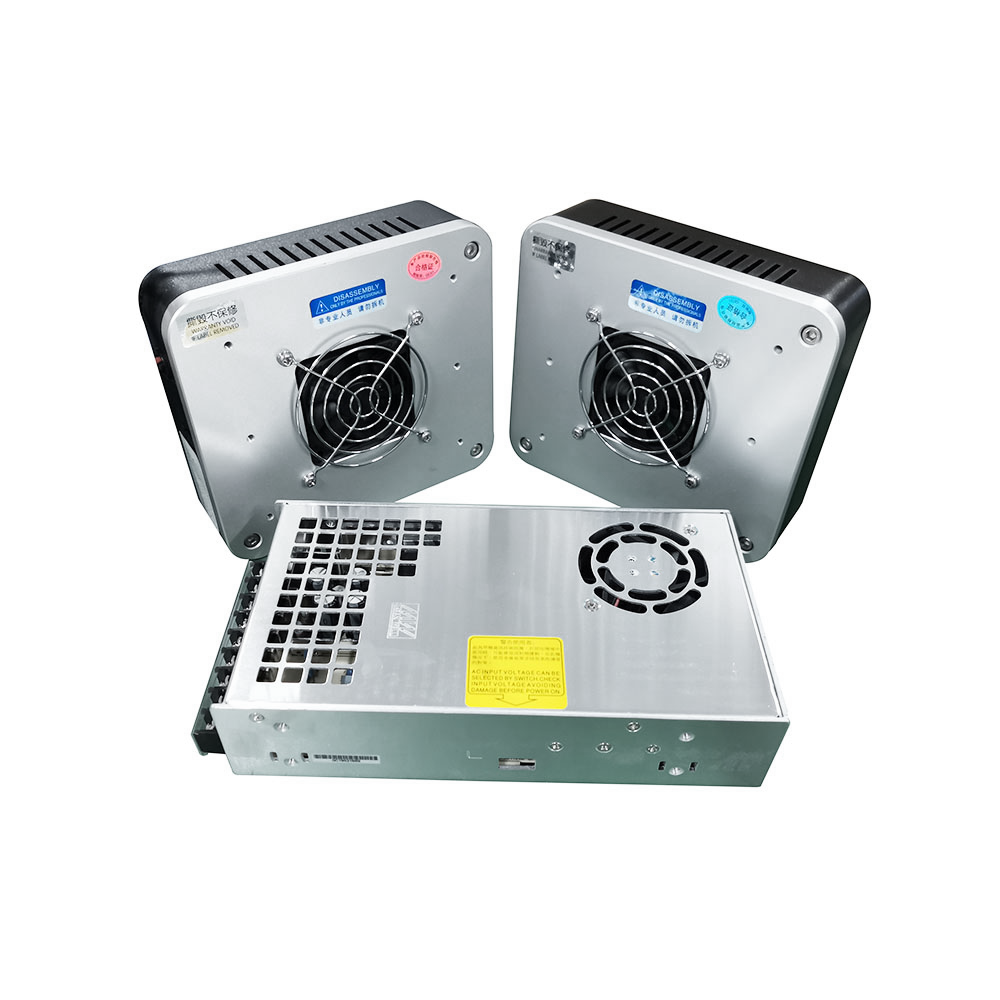

WCM-300 Wireless Charger
WCM-300 is a high-performance wireless charger product, suitable for providing non-contact charging for various mobile robots or devices,which can realize the battery charging process is fully automated, easy to use, and simple to maintain.
Application
This device would be applicable to the charging of electrically driven vehicles, which uses lithium battery as power such as electric fork-lift truck 、pallet truck and AGV.
This device would be applicable to the charging of electrically driven vehicles, which uses lithium battery as power such as electric fork-lift truck 、pallet truck and AGV.
Product Paramenters
|
Item
|
Technical parameters
|
|
Model
|
WCM-300
|
|
Input voltage
|
AC220V ± 15%, single phase 50Hz
|
|
Input current
|
3A (maximum)
|
|
Output voltage
|
28.8V
|
|
Output current
|
7A
|
|
Voltage accuracy
|
± 0.3%
|
|
Stability accuracy
|
± 1.0%
|
|
Voltage ripple
|
≤0.3%
|
|
Wireless efficiency
|
≥85%
|
|
Charging distance
|
Air gap length: 0mm ～ 50mm;
X axis deviation: ± 30mm;
Y-axis deviation: ± 30mm
|
|
Charging frequency
|
10 ～ 50kHz (self-tuning)
|
|
Ambient temperature
|
-20 ～ + 50 ℃
|
|
Storage temperature
|
-30 ～ + 60 ℃
|
|
Insulation resistance
|
≥100MΩ
|
|
Protection level
|
IP65
|
|
Weight
|
About 5kg
|
|
Dimensions
|
240 (W) x 210 (H) x 65 (D) mm
|
Our Advantages
High-efficiency
Save Energy
The intensity of electromagnetic radiation is safe, green and energy-saving.
High Quality
This product are imported components, and have undergone rigorous machine testing to ensure long-term stable operation.
