Description
Product Description

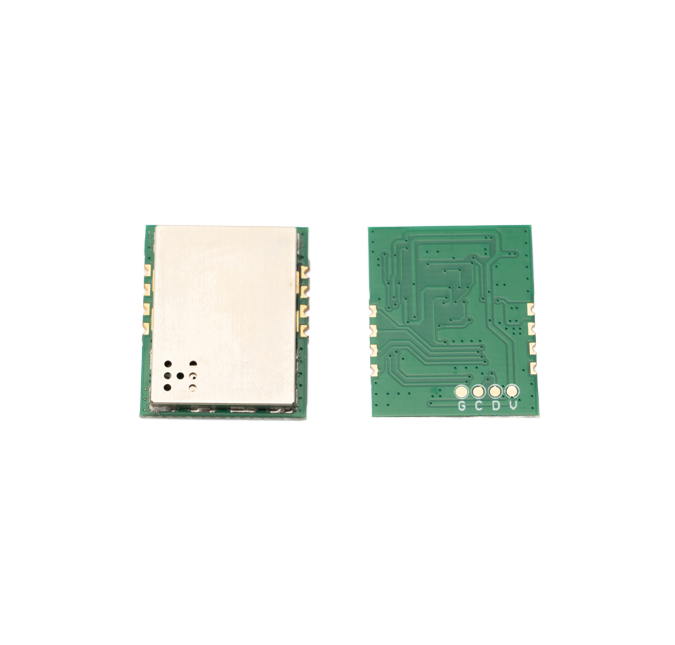

Hydrogen Concentration Sensor for Fuel Cell Vehicle Model:IM-858
IMV-858 is the 1 hydrogen concentration sensor for hydrogen fuel cell vehicles, with a built-in hydrogen response chip with independentintellectual property rights. It has the advantages of extremely fast response speed, wide measurement range, good weather resistance and long life, and is especially suitable for fuel cell vehicles with complex working conditions.
Product Paramenters
Detection principle
Thermal conductivity
Detection of Aso
Hydrogen
Detection range
0 to 10vol.％H₂
Initial detection accuracy
Concentration (H₂): 10% (at 2% H₂ concentration)
Temperature (T): -40~125 ℃
Humidity (RH): 0-99%
Recovery time
<2 seconds（T90）
Supply voltage
5V±0.25V DC
Work Temperature
-20 to +70℃
Storage temperature
-40 to +85℃
Output signal
CAN/GPIO(H2 PPM，Temp，RH%)
Ruler
25*20*3mm(L*W*H)
Application areas
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
