Description

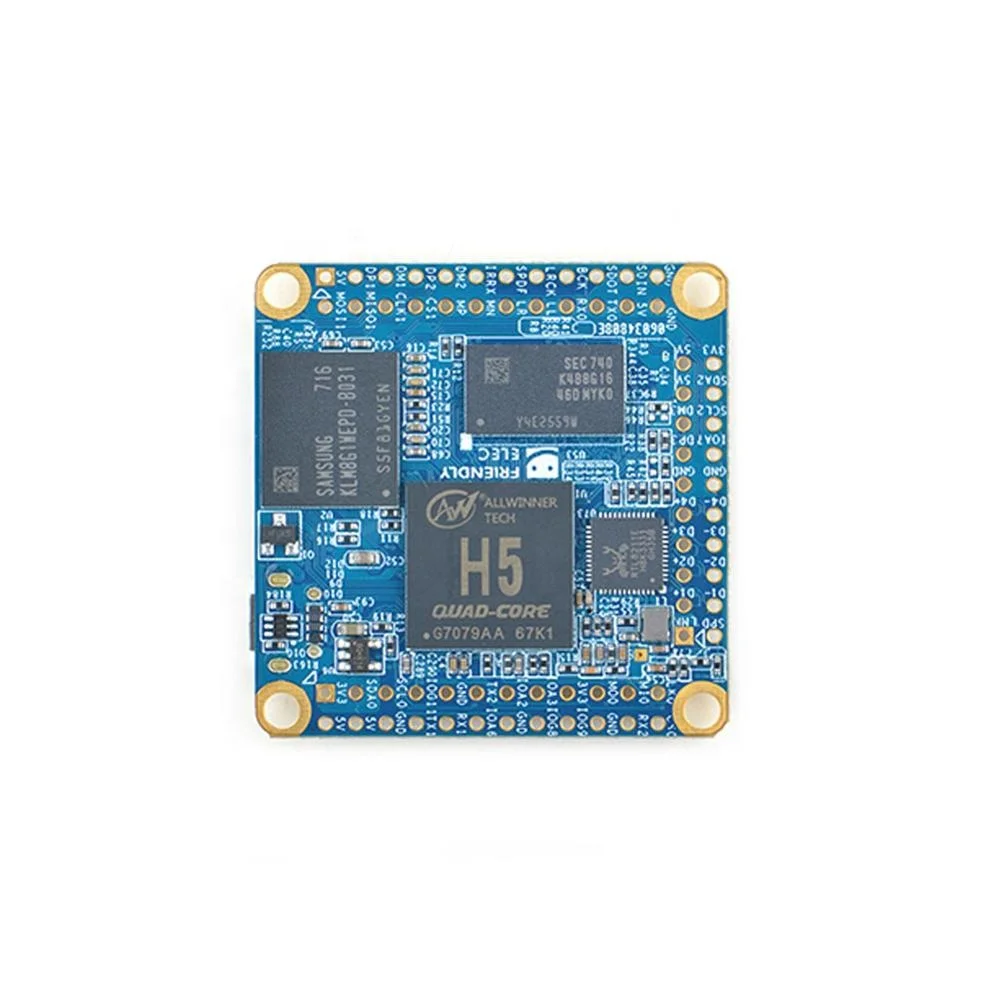

industrial Grade 512M RAM 8GB eMMC Nanopi NEO Core2 H5 Development Board Quad-core Arm a53 64 Bit ARM Board
Product Description
The NanoPi NEO Core2 as its name tells is an alternative NanoPi NEO2 that works like a CPU board with male pin-headers. It has the same form facotor as the NanoPi NE02, same pin descriptions and works with all the Os images the NanoPi NEO2 supports The connectors and ports on the NEO2 are populated to pin-headers on the NEO2 Core. In addition the NEO Core2 can have an optional onboard eMMC flash and ESD protection for connectors and ports. There are some preferred advantages by industrial customers.
The NEO2 Core uses a popular Allwinner H5 SoC and has onboard 1G DDR3 RAM. FriendlyElec offers models with three eMMC options: 8GB(default)/16GB/32GB. FriendlyElec migrated FriendlyCore-Xential(based on UbuntuCore) with mainline kernel 4.14 to it. Compared to the NanoPi NE02 the NanoPi NEO Core2 runs more reliably with much less overheat. It is a good platform for IoT applications, mornitoring systems, smart control systems, cluster computing and Al applications.
The NEO2 Core uses a popular Allwinner H5 SoC and has onboard 1G DDR3 RAM. FriendlyElec offers models with three eMMC options: 8GB(default)/16GB/32GB. FriendlyElec migrated FriendlyCore-Xential(based on UbuntuCore) with mainline kernel 4.14 to it. Compared to the NanoPi NE02 the NanoPi NEO Core2 runs more reliably with much less overheat. It is a good platform for IoT applications, mornitoring systems, smart control systems, cluster computing and Al applications.
Specification
|
item
|
value
|
|
CPU
|
Model: Allwinner H5
Number of Cores: 64-bit Quad-Core Frequency: 4*A53 Up to 1.5GHz |
|
Memroy
|
RAM: 512MB/1GB DDR3
|
|
Storage
|
eMMC: 0GB/8GB/16GB/32GB
MicroSD Slot: MicroSD*1 for external storage up to 64GB |
|
ESD Protection
|
ESD protection for MicroUSB port and TF card slot
Connectivity Ethernet: Gbps Ethernet, using RTL8211E-VB-CG (10Pin, included in 2.54mm pitch pin header) |
|
Audio
|
Input/Output: 4Pin, included in 2.54mm pitch pin header
|
|
USB
|
USB Host*3: included in 2.54mm pitch pin header
MicroUSB*1: Power & OTG |
|
Pin-header
|
GPIO: two 2.54mm spacing 12x2pin header, one 2.54mm spacing 10x2pin header.
It includes UART, SPI, I2C, USB, I2S, Gbps Ethernet, GPIO etc. |
|
LED
|
Power LED(Green)*1
System LED(Blue)*1 |
|
Working Temperature
|
-20°C to 70°C
|
|
Power
|
DC 5V/2A
|
OS Support Based on UbuntuCore-16.04 Third party: Armbian, DietPi, Lakka, OpenWrt etc Kernel version Linux-4.14-LTS U-boot-2017.11 PCB: 6 Layer Dimension: 40*40mm Weight 7.15( WITHOUT Pin-headers )
