Description

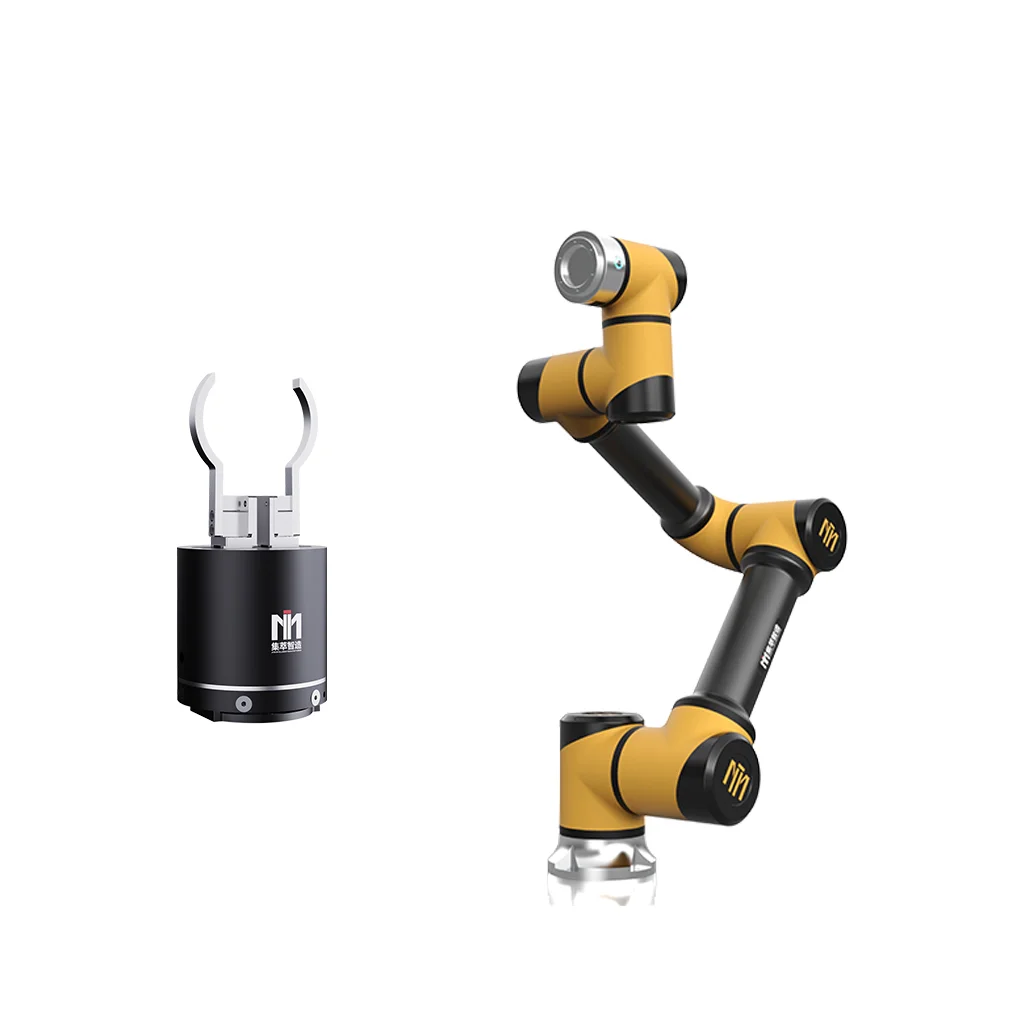

Products Description
|
Model
|
IIMT-CI-03
|
IIMT-CI-05
|
IIMT-CI-10
|
IIMT-CI-16
|
IIMT-CI-20
|
||||
|
Self Weight
|
13kg
|
21kg
|
38kg
|
37kg
|
63kg
|
||||
|
Payload
|
3kg
|
5kg
|
10kg
|
16kg
|
20kg
|
||||
|
Working Radius
|
600mm
|
900mm
|
1300mm
|
1000mm
|
1650mm
|
||||
|
Repeatability
|
±0.02mm
|
±0.02mm
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
||||
|
Safety Certificate
|
CE,CNAS,5 security configurations, Comply with EN ISO 13849-1:2008, PLD
|
||||||||
|
Joint of Range Motion
|
All positive and negative 360
|
||||||||
|
Degree of Freerdom
|
6 Rotating Joints
|
||||||||
|
Programming
|
Teach pendant graphical programming, handheld PAD programming, lua script programming, C/C++ programming.Python programming,SDK and Ros
|
||||||||
|
Carbinet Dimension
|
3kg/5kg/10kgCarbinet: 440*260*215.7: 16kg/20kCarbinet: 440*290*282.7
|
||||||||
|
Carbinet I/O
|
16 digital input, 16digital output, 4 analog input,4analog outputs
|
||||||||
|
Response Time After Collision
|
≤0.1s
|
||||||||
|
Robot & Human Integration
|
Collision detection, drag teaching, safety area setting, 48V power supply for the body
|
||||||||
|
Warranty
|
1 year
|
||||||||
|
Material
|
Aluminum alloy,ABS plastic
|
||||||||
|
Communication Interface
|
TCP/IP 100Mbit.ModbusTCP
|
||||||||
|
Components List
|
Robot arm, control cabinet, Teaching Pendant. cable. operating manual, certificate
|
||||||||
Quality Assurance:
Professional testing of core components. Products have passed multiple certifications. More than 30 key parts verified.
Faster
Work speed increased by 20%. 6 degrees of freedom trajectory planning optimization. Application tempo is greatly improved.
More powerful function
Terminal integrated 485 communication. Added end drag teaching and record point button. Terminal integrated analog output.
Application
IIMT CI THIRD GENERATION COLLABORATIVE ROBOT ARM APPLICATIONS:
The IIMT COBOT ARM can be used in a variety of applications. Click the most popular applications below to learn more.
