Description
IC/ID Card Reader 13.56Hz/125khz RFID Card Reader ID Wiegand 26 Bits Smart Card RFID Reader with Dual Frequency
Product Description

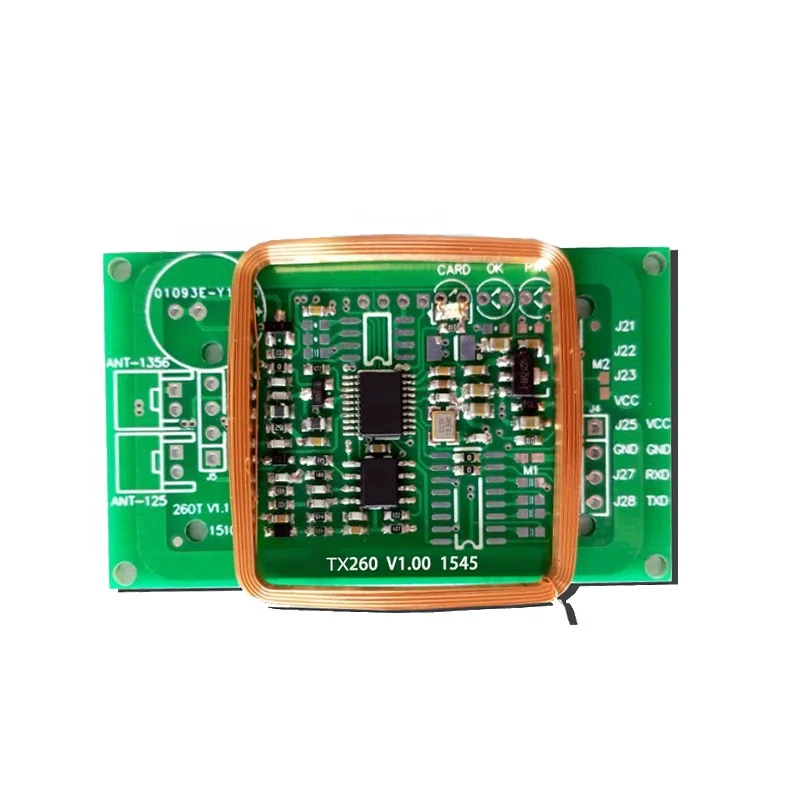

IC/ID card swiping dual frequency card reading card swiping module RFID gate access control attendance one card NFC module circuit board
Specification
|
item
|
value
|
|
Product name
|
TX260 series
|
|
Card reading distance
|
20-100MM
|
|
Product Size
|
integrated, split
|
|
Letter of agreement
|
Serial UART TTL/232/Wiegand
|
|
Working frequency
|
125KHZ/13.56MHZ
|
|
Support card
|
Support EM, TK, TEMIC, T5577, ISo14443A MIFARE and their compatible cards
|
|
Power consumption
|
30MA/5V
|
|
Scope of application
|
Attendance, security, building access control, identification, barriers, etc.
|
Installation Instructions
Split version
1, IC_TX1, output/O, 13.56MHz antenna transmitter 1 2, IC_TX2, output/O, 13.56MHz antenna transmitter 2 3~10, GND, ground 11～13, NC, free pins 14, MODE3, input/I, continuous output card number selection, when suspended, the card number will only be output once by swiping the card. When connected to GND, the card will always output the card number in the antenna area, with an interval of 250ms. 15, TXD, output/O, when set to UART mode: UART transmitter WG0, output/O, when set to Wiegand mode: Wiegand data О output 16, VCC, power supply, positive power supply, please connect an external 220uF electrolytic capacitor 17, GND, ground 18, NC, Input/I, when set to UART mode: idle WG1, output/O, when set to Wiegand mode: Wiegand data 1 output 19, MODE2, input/I, communication protocol selection: floating -- Wiegand Ground -- serial port (UART) 20, STA, output/O, card status indication (1: no card; 0: card present). STA goes low for 5ms before starting to output data 21, NC, free pin, please keep it floating 22, IDLE, input/I, externally connect this pin to GND, the module will enter the idle mode, the power consumption is 4uA, and the card cannot be read in the idle mode. Float or connect to high level, the module works 23, MODE1, input/I, Wiegand mode: output mode selection, floating: Wiegand 34 output, Wiegand 26 output when connected to GND Uart mode, baud rate selection: floating: 9600 grounding: 19200
Integrated version
J1
J21, NC, reserved for future use J22, NC, reserved for future use J23, IDLE, input/I, connect this pin to GND, the module will enter the idle mode, and the card will not be read when idle; the module will work if it is left floating or connected to a high level. . J24, VCC, power supply, positive power supply, +4.5V~+12V J25, STA, output/O, card status indication (1: no card; 0: card present) J26, GND, ground When J27, WG0, output, M2 is not shorted, it is in Wiegand mode: this pin is the output terminal of Wiegand data 0 J28 WG1, output/O, when set to Wiegand mode: Wiegand data 1 output TXD, output/O, when set to UART mode: Uart sends TXDData protocol
Wiegand Interface Protocol Wiegand interface is widely used in the access control industry and is a de facto industry standard. It is sent through two data lines, DATAO (D0) and DATA1 (D1). At present, the Wiegand 34 and Wiegand 26 interfaces are the most used. The data format of the two is the same, but the number of bits sent is different. In Wiegand 34 format, the 4-byte card number is returned, with the high byte of the card number first; in Wiegand 26 mode, the 3-byte card number is returned, the highest byte is discarded, and the high byte of the card number is first. The standard Wiegand 26 format is shown in Figure 4.1, which consists of 24 card numbers, 1 even parity bit, and 1 odd parity bit. The upper 12 bits of the card number are checked for even, and the lower 12 bits are checked for odd. The sending sequence starts from the high bit (bit7 of each byte). The sending rule is: DATA0 and DATA1 keep high level at the same time when there is no signal. If the next bit of data is 0, a 200us (definable) will appear on the DATAO data line. low level, the signal on the DATA1 data line remains unchanged. If the next bit of data is 1, a 200us (definable) low level appears on the DATA1 data line, DATA0 The signal on the data line remains unchanged. Outside the 100us low level, DATAO and DATA1 are always high. The transmission period of each bit of data is 1ms (definable).
Serial (UART) Protocol
The data format of one frame of UART interface is: 1 start bit, 8 data bits, no parity bit, 1 stop bit. Baud rate selectable: 9600bps or 19200bps. The frame length is fixed to 12 bytes.
