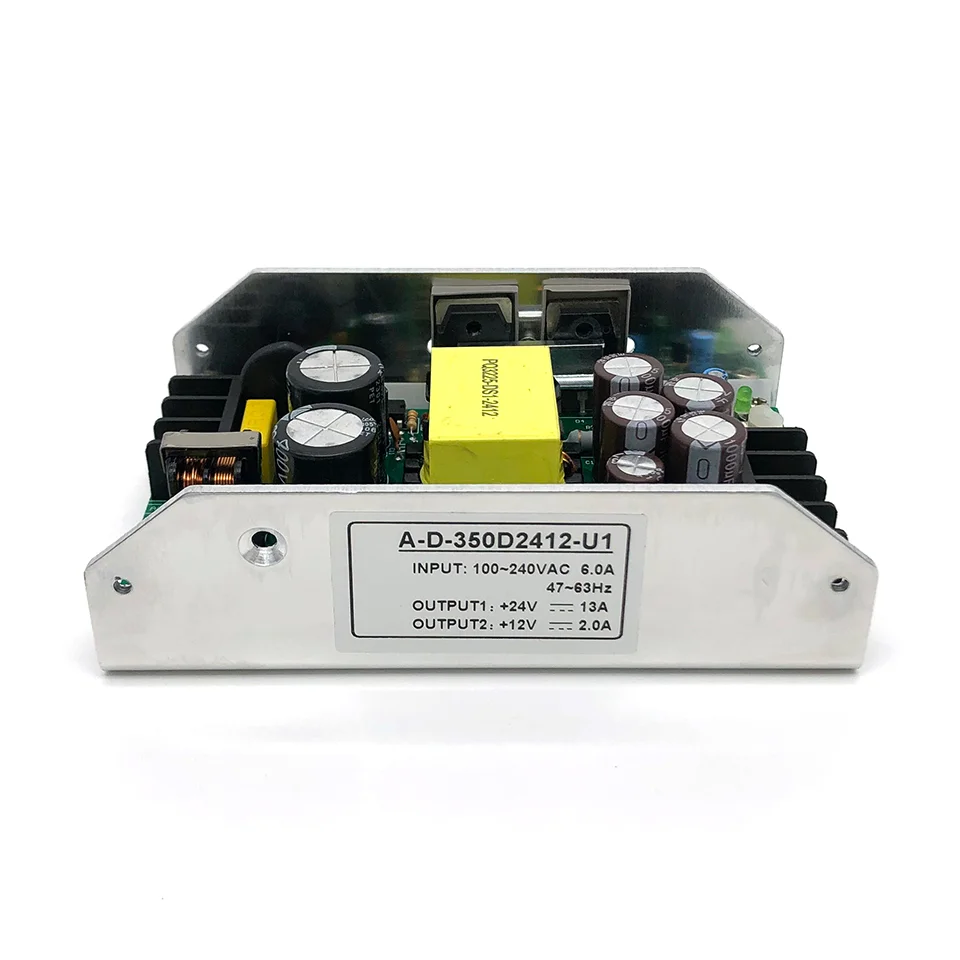

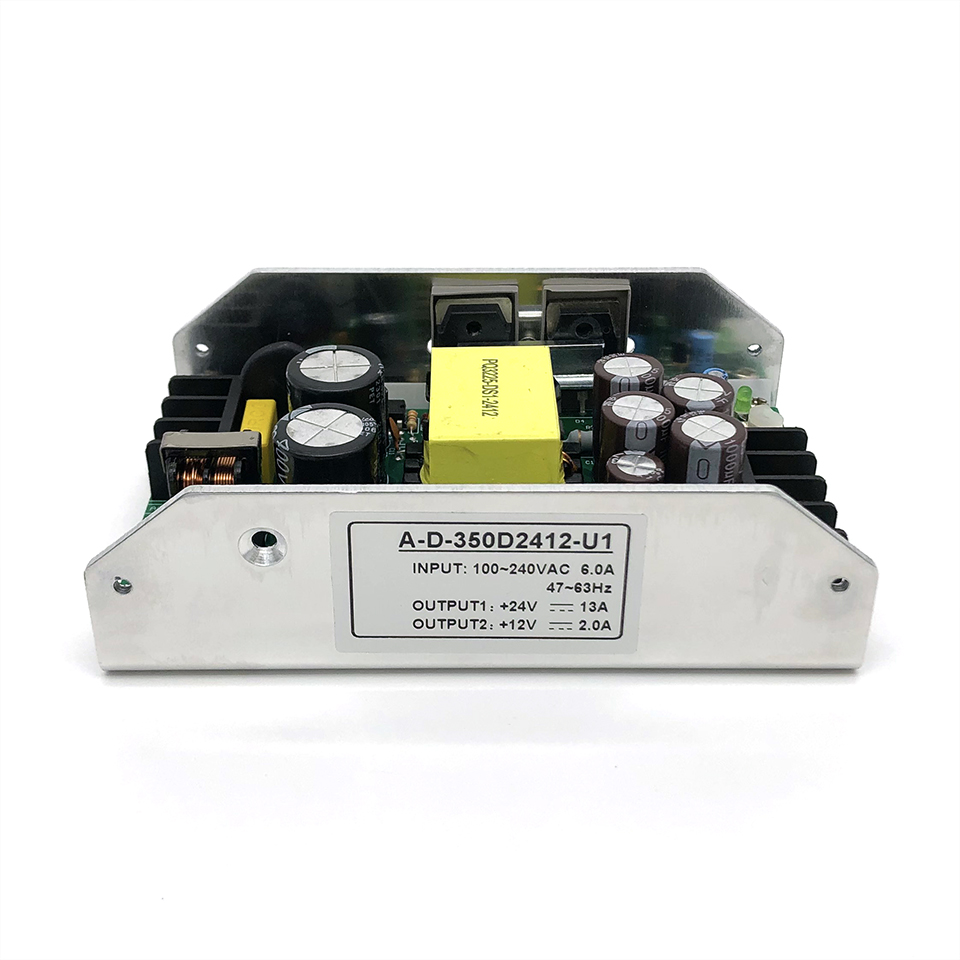

This power supply is specially designed for power amplifier circuit, the pure aluminum shell heat dissipation and shielding, ripple interference is very small.
The output voltage:
1. Main voltage, voltage optional (for power amplifier board power part) total power 350W
2. +12V (for cooling fan, speaker protection circuit)
Dual voltage output:
Type 1: 24V 13A, 12V 2A
Type 2: 36V 9A, 12V 2A
Type 3: 48V 6.5A, 12V 2A
Packing List:
1* Switching power supply board
Specifications:
Dimensions: 127*82*38
Weight: 300g
Cooling method: natural cooling
Output voltage: dual voltage output (optional type 1-3)
Output ripple: less than 150mV
Total output power: 350W
Output voltage adjustment range: 10%
Incoming line stability: ±0.5%
Load stability: ±1%
Input voltage: AC88V~264V
Start, rise, hold time: 200ms, 50ms, 20ms input voltage 230VAC output full load
Pressure resistance: input-output 1.5KVAC; input-shell 1.5KVAC; output-shell: 500VAC
Insulation resistance: input-output, input-case 500VDC/100MOmega;
Working temperature and humidity: -20℃~60℃, 20%~90%RH Humidity without condensation
Storage temperature: -40℃~60℃
Protection function: over current, over power
Safety standards: GB4943, UL60950, EN60950
Precautions for use:
1. The power supply has a rated power of 350W and can be equipped with a 300W*2 power amplifier board. Due to the customer's operating temperature and environmental reasons, the heating of the power supply varies during use. If you feel the temperature is too high, you can use the built-in 12V fan to assist in heat dissipation.
2. This power supply comes with over-power and output short-circuit protection, but since it will impact the power supply itself, try to prevent short-circuit and overload during use.
3. This switching power supply has a semi-enclosed design, and the power supply does not have other casings. Please put it into the case in actual use. Pay attention to safety and be careful of electric shock!
Using pure aluminum heat sink and shell, there are 3 M3 fixing holes in the middle of the bottom, which can be fixed on the chassis or on a larger radiator.
There are also 2 M3 fixing holes on each of the two sides, and a radiator can also be installed or fixed on the side.
Output terminal: +24V and G are connected to the power supply terminal of the power amplifier board, +12V and G can be connected to a small fan to assist heat dissipation or speaker protection circuit.
Input terminals: L and N are respectively connected to the live wire and the neutral wire of the plug. FG can be connected to the shell or the ground wire.
