Description
FEATURES AT A GLANCE

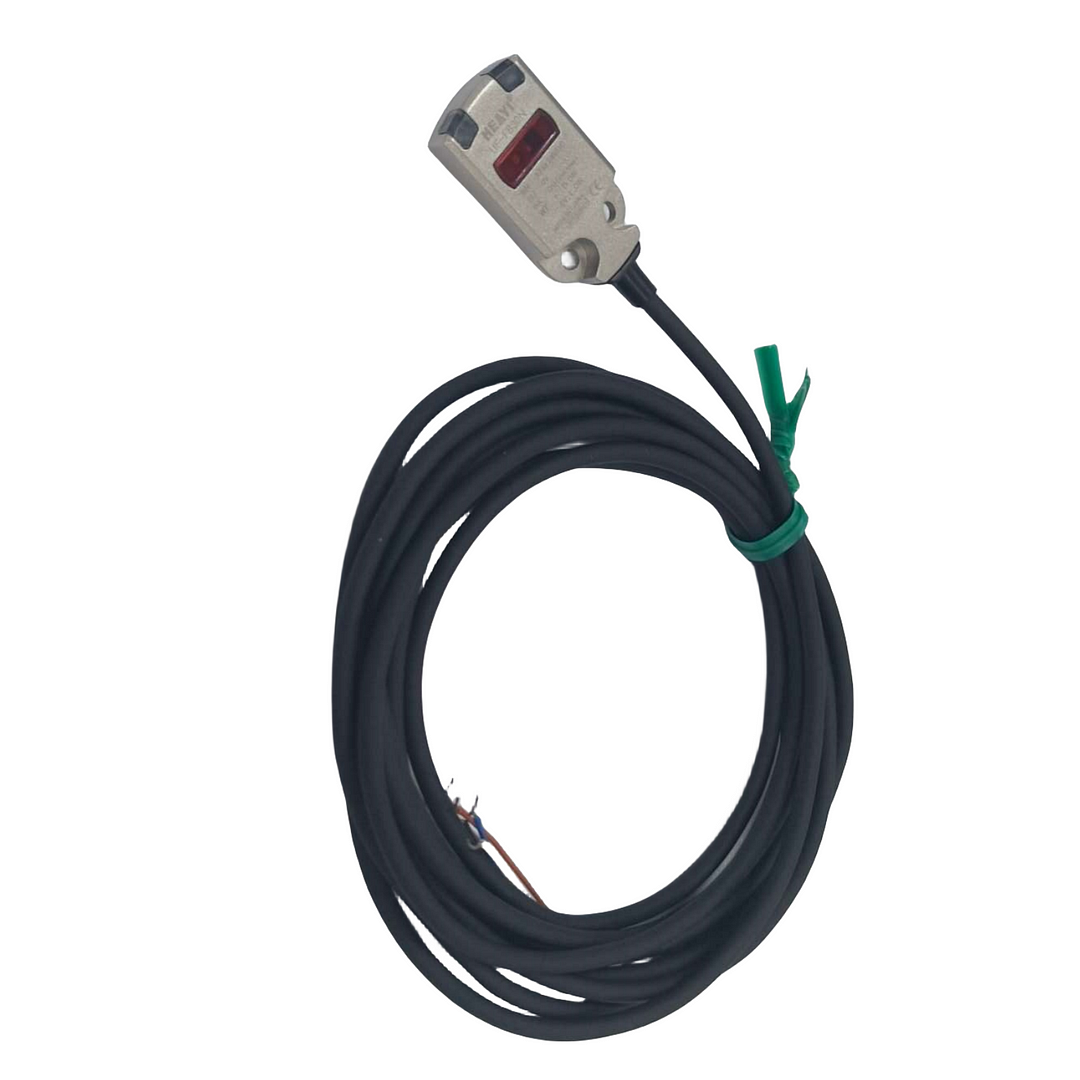

Hot seller Subminiature Photoelectric sensor UF-FB30N
* Small size, save space; * Easy to install, using standard m3 screws; * Aunique stable detection algorithm is adopted;
* Waterproof characteristics of stainless steel SUS316L shell;
PRODUCT SPECIFICATIONS
Shape
Flat
Type
Diffuse
Appearance
Model
NPN
UF-FB30N
PNP
UF-FB30P
Sensing range
2-30mm
Max. sensing(white paper)
47mm
NO/NC mode
L.O./D.O.
Output
LIGHT-ON/DARK-ON
Reaction time
Max. 1 ms
Spot diameter
about Φ7mm (when 30mm )
Light source
spot light source RED LED(650nm)
Indicator
output indicator(orange)/working stable state (green )
Power voltage
10 to 30VDC ripple ( P-P ) 10%
Current consumption
19mA
Control output
NPN collector open circuit, PNP collector open circuit below 30VDC, below 50mA Residual voltage： Max.10 mA, Max.1.5 V at 10 to 30 mA, Max. 2.0 V at 30 to 50 mA Leakage current: Max. 0.3mA when the load resistance is 3KQ, Max. 0.5mA when the load resistance is 1KQ, Max. 1.5mA when the load resistance is 0.2KQ
Input/Output circuit diagram
Size diagram
