Product Description
Explorer Robotics Innovation Component MA2001

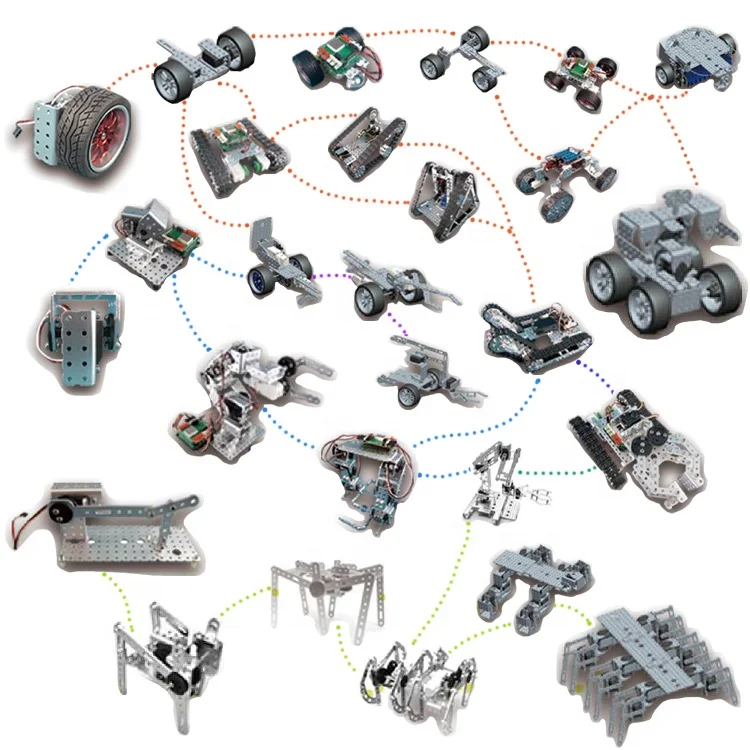

The MA2001 uses Explorer's classic 2.5mm porous metal parts system, which can be constructed from multiple angles and at various levels. By providing a large number of innovative parts, controllers, sensors, actuators, power supplies, data lines, etc., so that students can freely build the robot required for the course. Modularity is the teaching highlight of RMA2001, the material provides 5 typical robot modules, and they match and combine to form 20 robot cases, which can theoretically expand countless robots.
Assembler Prototype
Supported Course
Robot mechanism design, robot mechanism innovation design, modular robot design and implementation, mechanism composition modeling, electromechanical control basis, robot technology basis, industrial robot basis, embedded technology in robot application, autonomous robot programming, single-chip microcomputer principle, automatic control principle, robot kinematics, multi-degree of freedom robot assembly and control, typical Robot configuration design, etc. The software adopts the international Arduino open-source robot software, provides C language structure code, graphical dual interface, provides rich routines, so that students can easily reference learning. And has the function of teaching programming, can be carried out away from the computer, fast teaching programming, so that students of different levels can easily program.
Easy to use graphical C language interface
Classic C language code interface
Product Configuration
|
Product configuration
|
Type
|
||
|
Robot Case
|
20
|
ore than 20 robot assembly cases, covering wheel type, track type, joint type, etc
|
|
|
Main Control Board
|
2
|
"Explorer" Basra main control board, Arduino open source robot software
|
|
|
Expansion module
|
2
|
Explorer Bigfish integrated expansion module
|
|
|
Structural parts
|
452
|
2.5mm aluminum magnesium alloy parts and ABS plastic parts, international standard M3 parts interface, including flat parts,
connecting rod parts, bending parts, round parts, gears, tires and so on |
|
|
Mechanical parts
|
714
|
Stainless steel screws, nuts, metal bushings, nylon studs, etc
|
|
|
Motor
|
15
|
3~9 V DC motor; Metal gear 180° servo motor, anti-reverse connector, torque 4.3kg.cm.
|
|
|
Sensor
|
20
|
11 kinds, touch, flash, voice control, light intensity, gray level, infrared, acceleration, ultrasonic and so on
|
|
|
Output module
|
3
|
LED、Voice
|
|
|
Communication module
|
4
|
Bluetooth serial port module, Bluetooth PC adapter, wireless module, etc
|
|
|
Assembly tools
|
4
|
Hexagonal screwdriver, wrench, Phillips screwdriver, and tweezers
|
|
|
Extend
|
This product can be extended 51 MCU, ARM7 and various common sensors, control modules, etc
|
||
