Description
Product Paramenters
Product Name
Intelligent Electric Motor Lock (Self-Latching)
Item No.
HLD5160
Material
201 stainless steel housing
Working Voltage
DC 7V~24V
Working Current
6mA in standby mode; 200mA in the process of locking/unlocking
Working Temperature
-20℃~ +70℃
Reaction Time
Less than 0.2msec
Working Life
200,000 times of open-close with intervals of 30s
Housing Test
Pass 48-hour salt-spraying test
Manner of Working
Open after power on (not poping out)
Working Humidity
5%~95% RH
Signal Detection
Lock status feedback
Emergency Unlock
Two mounts
Relock Type
Auto & Delayed
Certification
CE, ISO9001, ROHS

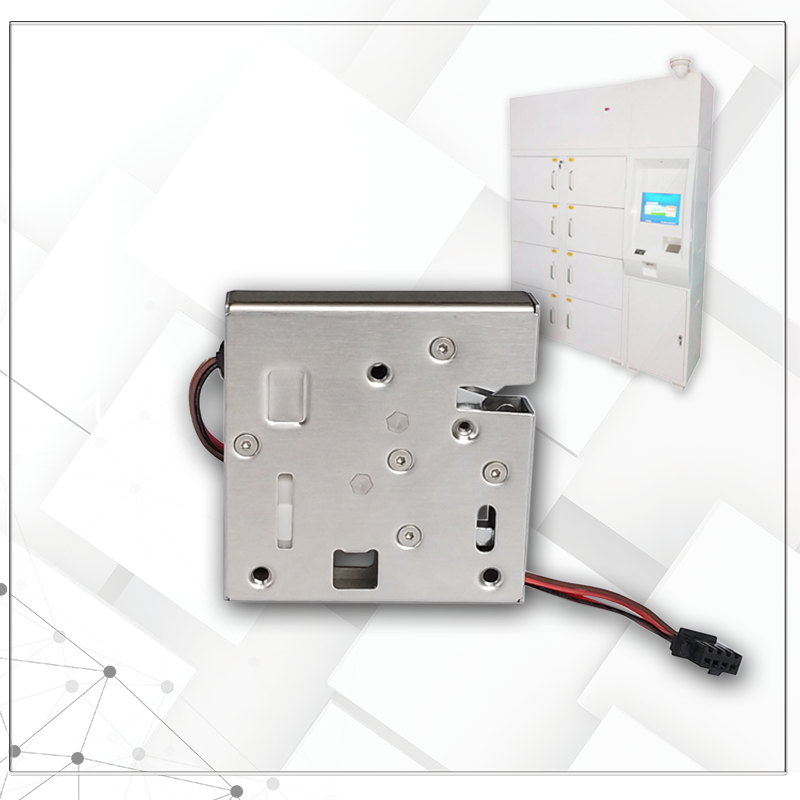

Product Application
Product Description
Product Description
1. HLD motor lock HLD5160 adopts 201 stainless steel housing, Stable and durable, shock-proof and theft-proof. 2. Dustproof and waterproof, suitable for all kinds of high-end smart cabinets. 3. HLD5160 is suitable for various intelligent control systems. For example, by connecting HLD lock control board, it can make intelligent unlocking possible. 4. It can be unlocked by pulse signal with merely 200mA working current. It will send lock feedback indication after the process of unlocking. 5. It also has two lifting levers for manual overrides, which enable manual release under emergency.

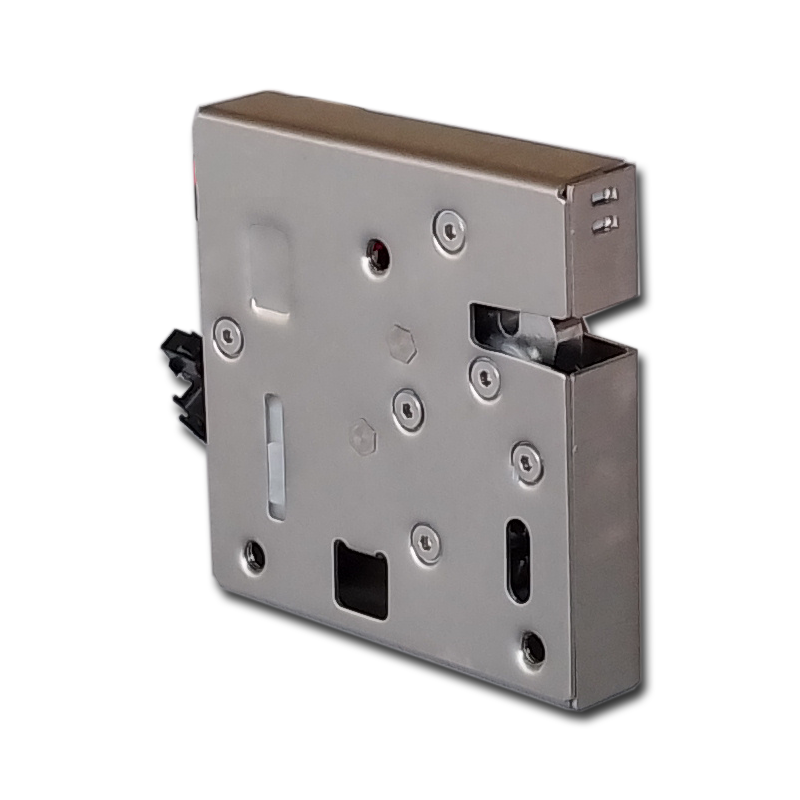

Products Show
201 Stainless Steel Housing.
Sturdy and Stable.
Using Powder Metallurgy Support Block.
High Strength Torsion Spring
ECS is protected by environmental protection glue.
Product Usage
Product Usage Introduction
The unlocking signal is a pulse, and the general current of unlocking signal does not exceed 200mA. When the lock receives the unlock command, the motor will rotate. Knowing that latch does not release automatically in normal circumstances, the door will be under a status that can be pulled open when the indicator turns on. The electric motor will go backward and be ready for next unlocking process when the unlock command comes to an end. It can be easily locked with a gentle push when necessary.
Topological Diagram
(Lock Control System)
We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module and the terminal motor lock can also be connected to it.
