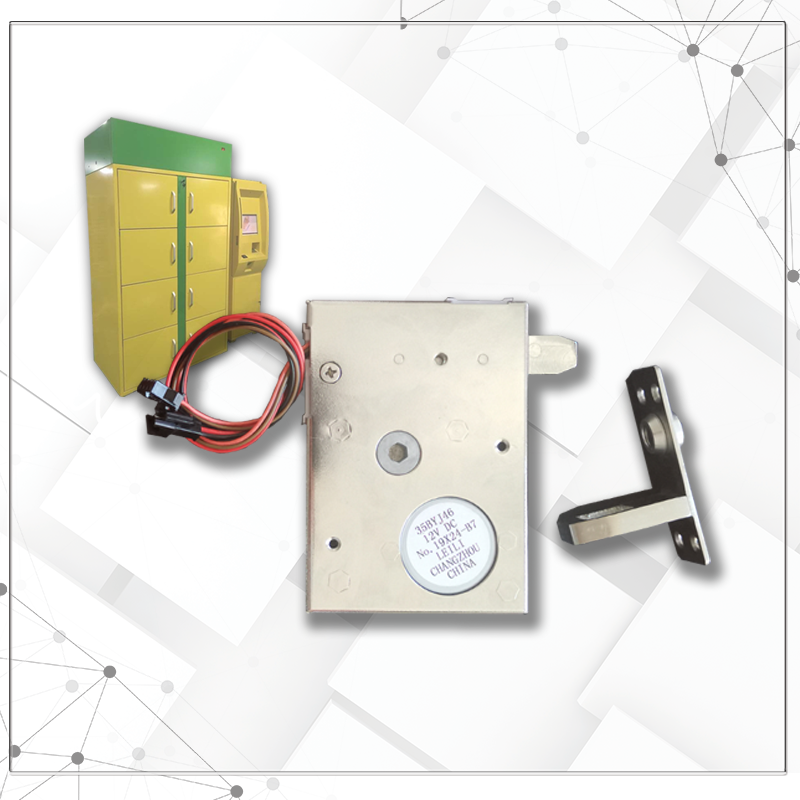

1. Headleader motor lock HLD1920 adopts steel shell, which is stable and durable, shockproof and prying-resistant. Electronical control and manual operation for unlocking under emergency are acceptable. 2. Working current is 240mA while the current in standby mode is only 28mA. And the power-on time for unlocking is not limited. 3. Compared with electromagnetic locks, HLD1920 motor lock performs better in the aspects like anti-vibration and anti-theft. HLD1920 also includes a built-in sensor, which makes it possible to lock/unlock the door of cabinet automatically with the aid of door-closer. 4. Applicable to various kinds of high-end smart cabinets, such as freezers, large lockers, etc.
Description
Product Paramenters
|
Product Name
|
Electronic Mortise Lock
|
|
Item No.
|
HLD1920
|
|
Material
|
Stainless steel
|
|
Working Voltage
|
DC 12~24V
|
|
Working Current
|
28mA in standby mode; 240mA in the process of locking and unlocking
|
|
Working Temperature
|
-20°C ~ +70°C (Non-condensing)
|
|
Reaction Time
|
Less than 0.2msec
|
|
Working Life
|
100,000 times of open-close
|
|
Housing Test
|
Passing 48-hour salt-spraying test
|
|
Unlock Control
|
The signal for unlocking will be sent when it keeps a low-level for more than 100ms.
|
|
Status Feedback
|
When the output status signal is low-level, it unlocks.
|
|
Status Indication
|
LED indicator will show the lock status.
|
|
Emergency Unlock
|
One mount
|
|
Re-lock Type
|
Auto & Delayed
|
|
Certification
|
CE, ISO9001, ROHS
|
Product Application
Product Description
-
Product Description
Products Show
Electrical Drives
Stable and Reliable
Steel Shell
Sturdy and Durable
Accepts electrical control and manual unlocking. Unlocking device under emergency is also available.
Product Usage
-
-
Product Usage Introduction
-
The unlocking signal is a pulse, and the general current of unlocking signal does not exceed 240mA.
When the lock receives the unlock command, the motor will rotate. Knowing that latch does not release automatically in normal circumstances, the door will be under a status that can be pulled open when the indicator turns on. The electric motor will go backward and be ready for next unlocking process when the unlock command comes to an end. It can be easily locked with a gentle push when necessary.
When the door gets stuck and the lock cannot be unlocked, the motor will invert and automatically get the door relocked after 3
minutes to prevent items from being stolen.
When the door gets stuck and the lock cannot be unlocked, the motor will invert and automatically get the door relocked after 3
minutes to prevent items from being stolen.
Topological Diagram
(Lock Control System)
We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module and the terminal motor lock can also be connected to it.
