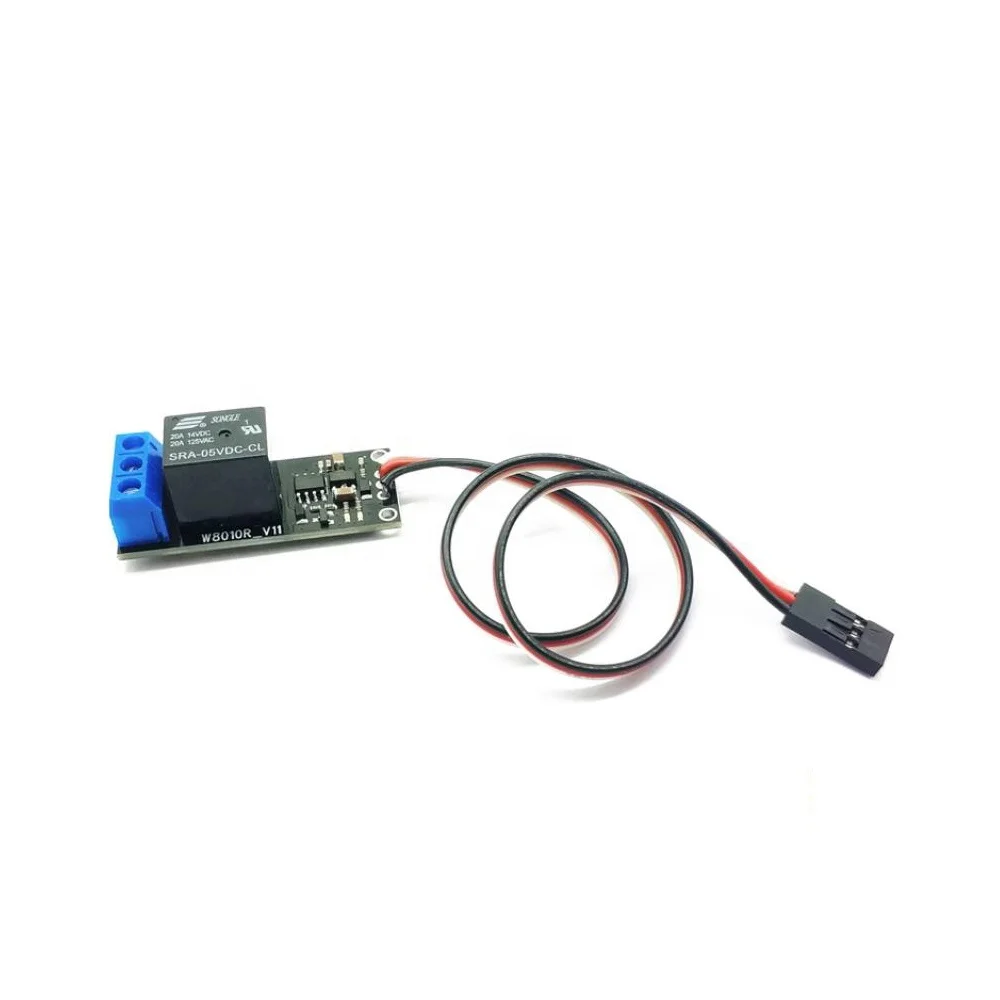

High Voltage 3.3V 5V 12V K1 Navigation Light Controller 1CH PWM Aircraft Remote Control Signal Relay Switch for RC
Product Description
1. Only support 5V voltage receiver, otherwise the module may be damaged. If the receiver and servo use high voltage system, a step-down module should be added to the module. 2.New upgrade version, working voltage 5-12V 3.1 road servo signal input, control one electronic switch 4.Normally open end supports 20A current 5. All the way LED indicates working status 6. With boot protection function, easy to operate 7. The input channel does not need to be calibrated and is compatible with various brands of remote control equipment 8. Adopt transparent heat shrinkable glue, fashionable appearance, clear at a glance 9. Small size and light weight
Specification
|
item
|
value
|
|
Model Number
|
toy airplane aircraft PWM signal relay
|
|
Theory
|
Voltage Relay
|
|
Usage
|
AUTO
|
|
Size
|
Miniature
|
|
Protect Feature
|
Epoxy
|
|
Contact Load
|
Low Power
|
|
Working voltage
|
3.3V-5V/5V-12V options
|
|
Normall open support
|
20A current
|
Application
1. Long-range remote control model rocket launch 2.Long-range Smoke control of Remote control model 3. Control of weapon system like real machine 4. Smoke control of model aircraft 5.Control of various remote switch systems 6. Switch the signals of the two cameras 7. Control the power on and off of various electrical appliances, such as navigation lights, searchlights, strobe lights, buzzers, etc. 8. Control the camera shutter, or switch the camera's video and photo modes.
Function description:
1. The remote switch remotely controls the electrical equipment on the aircraft model through a switch channel on the remote control, and 1-way LED dynamically demonstrates the current switch status in real time, so you can quickly get started without an operating manual. 2. This device does not need to be calibrated, and can be accurately compatible with various brands of remote control equipment. Typical application: 1.Connection Plug the signal input cable into an idle receiver channel, which corresponds to a switch on the remote control. When connected to the receiver, the power indicator will light up. When the switch channel is open, the work indicator light is on, otherwise it is off. 2. Working mode The red LED indicates the power indicator. The blue LED indicates the relay working status. 3. Trigger Turn the switch on the remote control (OFF-> ON), the green LED lights up and the relay starts to work.
