What is overview of High-value Real-time Inventory Management Consumables Asset Gold Gem Tools UHF RFID Storage Cabinet?

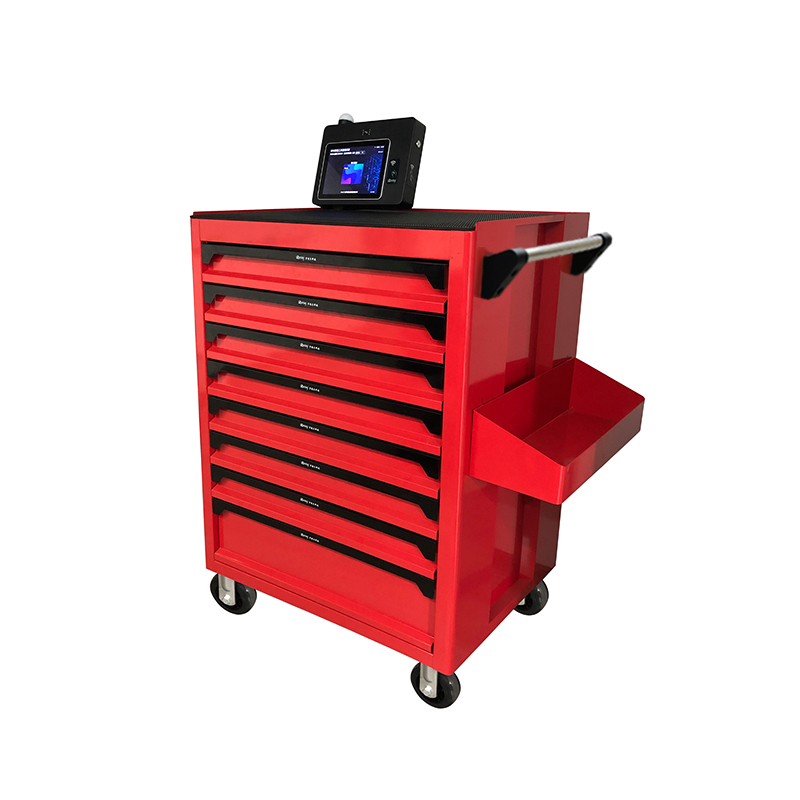

RFID Smart Tool Trolley is one of the Syncotek's self-developed RFID tool management system solutions. With RFID technology, it enables the automated management of the RFID-tagged tools which are stored in the drawers. It can greatly improve the accuracy and efficiency of tool management, and has realized the informatization management of tools and the fine control of FOD in aviation industry. The main functions include tool trolley initialization, tool lending/returning record, daily/monthly checking, etc.
Industry Application: It is mainly used in aviation, electric power, fire protection, machinery, railway and other industries to realize automatic and fast borrowing, returning, positioning, searching and maintenance of tools.
What is the key features of High-value Real-time Inventory Management Consumables Asset Gold Gem Tools UHF RFID Storage Cabinet?
*Fully Automated Management: Fully automated tool lending and returning record management, has simplified the processes and eliminating mistakes of manual scanning and logging. Quick! Accurate! And the system can create various reports.
*One-touch Inventory: Finish daily/ monthly checking can be finished within 3 seconds.
*Data Acquisition and Scientific Analysis: Data logging of tool parameters. Calibration period reminding for specific tools. *Security: If the tools are not returned in time, the tool trolley will alert and quickly lock on the relevant person.
*Lost Tool Searching: When the tool is left on the plane, it can be further searched with the RFID handheld terminal. *Convenient and Intelligent: Equipped with the rechargeable battery, it can be used as a mobile line-side tool cabinet.
What is the specification of High-value Real-time Inventory Management Consumables Asset Gold Gem Tools UHF RFID Storage Cabinet?
|
High-value Real-time Inventory Management Consumables Asset Gold Gem Tools UHF RFID Storage Cabinet |
|
| System | Android 5.1.1 |
| Industrial Computer | RK3288/4 cores Frequency 1.8Ghz |
| Photoelectric Switch | One Group/Imported |
| Programmable Controller | Domestic |
| Electric Control System | With Domestic PLC |
| Screen | 10.1-inch capacitive screen, 1280*800 (16:9) |
| RAM | 2G |
| Storage | 8G |
| Communication | TCP/IP, WIFI,4G |
| Shielding Distance | 20-30CM |
| Opening Speed | 1 second |
| RFID Reader | Imported Impinj R420 |
| Number of Tag Reading | 400+pcs |
| Reading Efficiency | 3~5 seconds |
| Reading Mode | Motionless |
| Drawer Number | 8 |
| Single Drawer Size | 690*510 (width*depth) |
| Upper Drawer Spacing | Drawer 1-7(inner height): 50mm |
| Lower Drawer Spacing | Drawer 8(inner height): 150mm |
| Load Bearing Capacity Per Drawer | 40KG |
| Current | 5A |
| Voltage | 24V |
| Battery | With feedback Capacity 10AH |
| Power | 50W |
| Weight | About 160KG |
| Size | 1330*980*600mm |
| Enclosure Material | Spray-paint Carbon Steel |
| Working Humidity | 20%~85%(Non-condensation) |
| Working Temperature | -20°C to +60°C |
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
