General Description

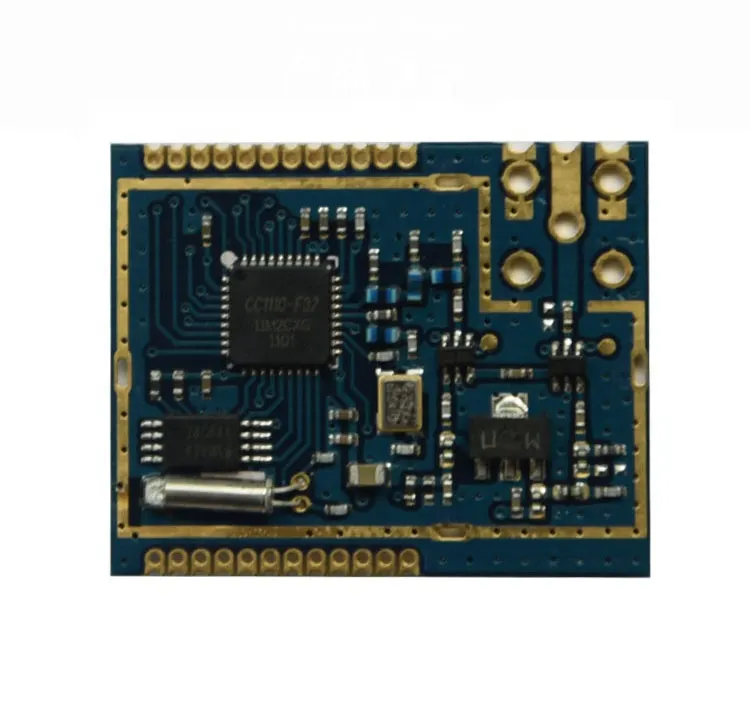

The VT-CC1110PA-433M RF Data Transceiver Module is a low power, highly integrated UHF transceiver, combines RF transceiver with MCU and EEPROM, designed for long-range wireless data transceiver applications.
Key Features
Radio
High receiving sensitivity, -110dBm at 2.4kBand
Programmable output power up to 24dBm, ransmission distance reach more than 800m
433MHz transceiver, customaries for 315/868/915MHz
Support FSK, GFSK, ASK/OOK and MSK modulation
Programmable data rate from 1.2kBand to 500kBand
Digital RSSI / LQI support 8051 MCU
Powerful DMA functionality
32KB in-system programmable flash and 4KB RAM
128-bit AES security coprocessor
7-12 bit ADC with up to eight input
Two USARTs and one I2S
16 bit timer with DSM model
Three 8 bit timers
21 GPIO pins
Hardware debug support
General
16 GPIO pins offer to user
EEPROM up to 64KB
Supply voltage range 2.4-3.6V
Small package size 31.5*27.0mm
Applications
Low-power wireless Soc applications
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor network
AMR-Automatic Meter Reading
Home and building automation
Electrical Characteristics
Ta = 25°C, VCC = 3.3V
|
TEST ITEM |
TEST CRITERIA & REQUIREMENT |
REMARKS |
|
Voltage supply |
2.4-3.6V |
DC |
|
Center frequency |
433MHz |
Programmable |
|
Frequency error |
±10KHz |
|
|
Modulation |
FSK/GFSK/ASK/OOK/MSK |
Programmable |
|
Output power |
>20dBm |
Max: 24 dBm |
|
Receiving sensitivity |
-110dBm |
@2.4 kBand |
|
Receiving current |
22mA |
@2.4 kBand |
|
Transmitting current |
100mA |
Po=20dBm |
|
Sleep consumption |
300uA |
|
|
Data rate |
1.2-500kBand |
programmable |
|
Bandwidth |
58-650kHz |
27MHz ctystal |
|
Transmit distance |
800m |
10kBand @ open area |
|
Antenna |
50ohm |
|
|
Store temperature |
-50-150°C |
|
|
Operating temperature |
-20-75 °C |
|
|
Package size |
31.5*27.0mm |
Not include antenna |
Typically, equipment utilizing this device requires emissions testing and government approval, which is the responsibility of the equipment manufacture.
