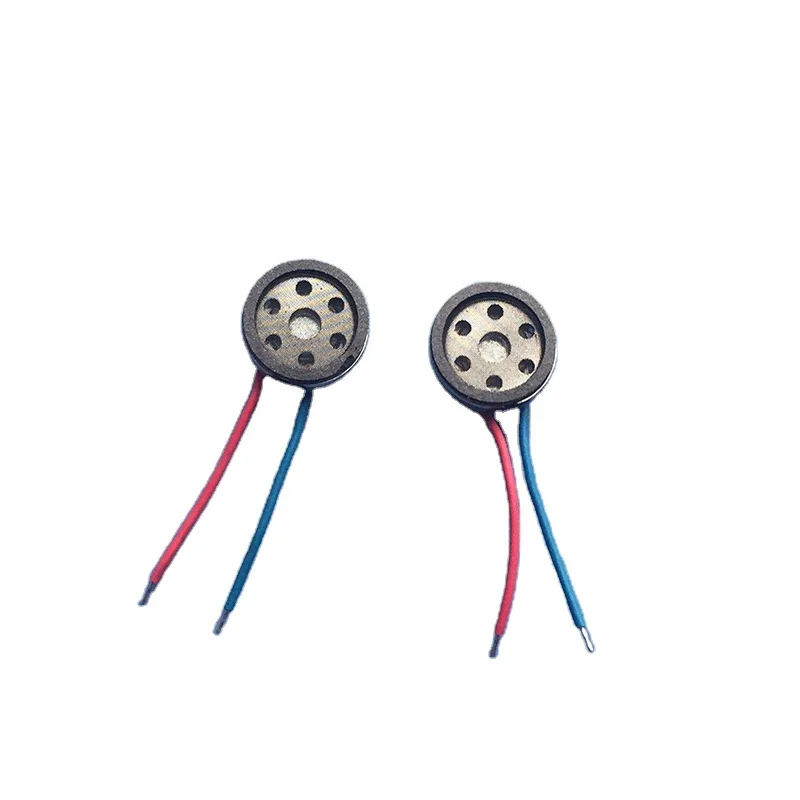

High Sensitivity 8MM Micro Dynamic Speaker 8 ohm 1W Mini BLE Speaker
Product Description
ENVIRONMENTAL CHARACTERISTICS
RESULTS OF AFTER TEST：Sensitivity difference shall be within (3 dB) and should satisfy the test described under item14 after each fllowing test. 1. APPEARANCE: Should not exist any obstade to be hammful to nomal operation: damages\ cradks\ rusts and distortions etc. 3. POLARITY: When positive voltage is appliedto the teminal marked(+), diaphragm should move to the front. 4. LOAD TEST: 0.5 W white noise is applied for 96 hours and satisfy the test listed on item05,08,14. 5. HIGH TEMPERATURE DURABILITY: After having been in a test chamber for 96 hours at the condtionof+80℃±5℃andthenlet 2 hours in a room . 6. COLD TEMPERATURE DURABILITY: After having been in a test chamber for 96hours at the condtion of 40℃ ±5℃ and thenlet 2 hours in a room. 7. HUMIDITY DURABILITY: After having been in a test chamber for 96 hours at the condition)f +40℃±5℃ 90%-96%RH andthen let 2hours ina room 8.TEMPERATURE CYCLE DURABILITY: Lowtenperature 40 ℃±2℃(2 hou)/ high tenperature +85±2℃ (2 hour):1 cycle : total 10 cycles andthenlet 2 hours inaroom. 9.VIBRATION DURABILITY： Frequency R ange:10Hz ~ 500Hz Ampltude: 0.35mm or acceleration: 50m/s2 Duraion: 2hper axis=10 cycles; 3 axis 10.DROP TEST： The speaker urit shall stand 10 random drops from a height of 1 meter to a concrete floor faced with 5mm thick hardwood board andbe nothing mecharical damage. 11.PACKING STRENGTH：As pe pading condtion, ftom height of1 meter, the uritis to be dropped 1 time each in three planes on concrete floor.
Specification
|
1
|
TYPE： Dynamic speaker
|
|
2
|
OUT SIDE SIZE： diameter 8mm, Shown Fig
|
|
3
|
IMPEDANCE: 8Ω±20% at 1 KHz 1.0Vms Sine Wave
|
|
4
|
RESONANCE FREQUENCY：1000±20% Hz at 10V Sine wave
|
|
5
|
SENSIIVITY (S.PL)：80dB±3dB at 0.5w/ 0.1m/ 10.12.15. X 100Hz average .
|
|
6
|
RATED/ MAX. POWER：0.5W1 0.8W
|
|
7
|
FREQUENCY RANGE：fo ~ 10kHz;
|
|
8
|
DISTORTION：Less than 10 % at 1000Hz0.5 W
|
|
9
|
UNIT WEIGHT：1 3g±0.1g
|
|
10
|
MEASURING DIAGRAM：Shown in Fig
|
|
11
|
FREQUENCY RESPONSE：Shown in Fig
|
|
12
|
OPERATING TEMPERATURE：30C ~ +60℃
|
|
13
|
STORAGE TEMPERATURE：40C ~ +60℃
|
|
14
|
OPERATION TEST：No one should perceive noise of sine wave 20V of FO500HZ~5kHz
|
Details Images
