Description
Product Overview

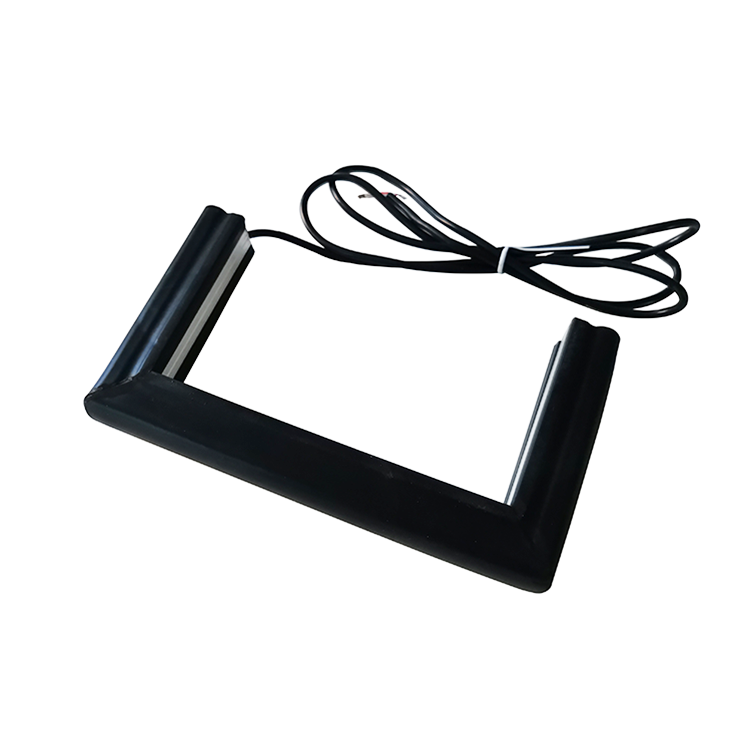

AGV Bumper Sensor
The agv bumper sensor is made of rubber and has a built-in sensor. It is generally installed around and on the edge of the AGV body. When an obstacle is encountered, the built-in sensor of the bumper sensor will transmit the signal to the control system, and the system will make a judgment and stay away from the obstacle.
Product Paramenters
Product Name
AGV Bumper Sensor
Size
About 60*865mm (or customized)
Maximum driving force
5N
Driving distance
1mm
Switching cycle
>100'000
Maximum switching voltage
24V AC/DC
Maximum switching current
10mA
Highest contact resistance
Generally ≤50 Ohm, maximum 150 Ohm
Highest conversion resistance
150 Ohm (No switch)
Temperature range
-40C°-+80C°
Minimum bending radius
Vertical axis
Horizontal axis
750mm
75mm
Dielectric strength
1500DC;1000AC
Product Advantages





1. High trigger sensitivity

 2. Small size / easy installation



3. The product can adapt to bad weather

 4. Strong practicability
Product Application
Details Images
