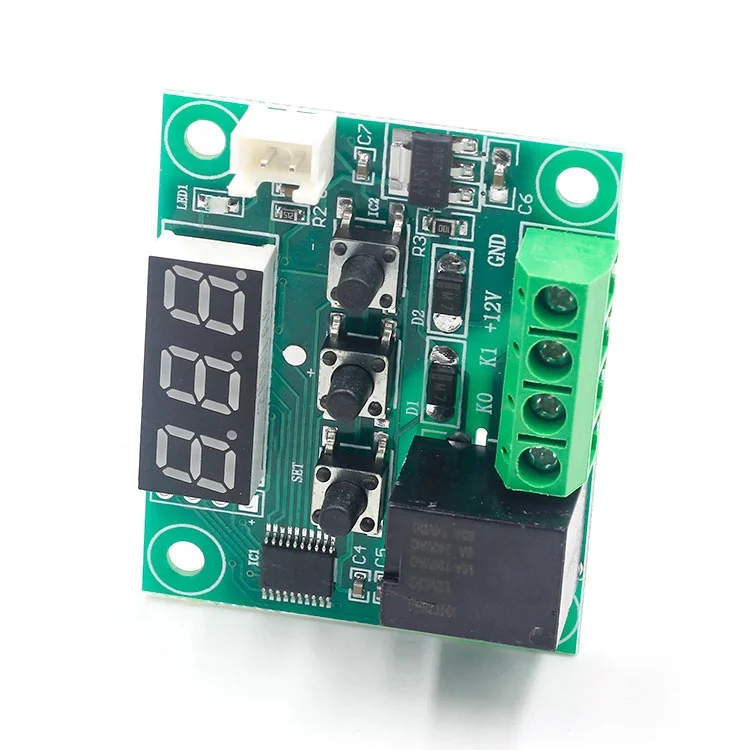

High Precision Temperature Control Digital Switch W1209 Digital Electronic Temperature Relay 1209 W1209 Thermostat
Product Description
These are popular temperature controllers with waterproof probes, which can define your temperature setpoint and the relay is opened/closed when the threshold is crossed. High precision temperature controller, temperature control switch, miniature temperature control board, probe. Multiple modes to choose.
Features
Digital display intelligent temperature controller XH-W1209.
Blue LED shows numbers more clearly.
High precision temperature controller, temperature control switch, miniature temperature control board, probe.
Resolution is 0.1℃ when temperature is -9.9~99.9 ℃, other temperature segment is 1℃.
Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
Lightweight, small size and easy to use.
Blue LED shows numbers more clearly.
High precision temperature controller, temperature control switch, miniature temperature control board, probe.
Resolution is 0.1℃ when temperature is -9.9~99.9 ℃, other temperature segment is 1℃.
Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
Lightweight, small size and easy to use.
Specifications
LED color: blue
Temperature range: -50-110℃
Temperature control mode: ON / OFF
Resolution at -9.9 to 99.9℃: 0.1℃
Resolution at all other temperatures: 1℃
Control accuracy: 0.1℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5 seconds
High temperature protection: 0-110℃
Supply voltage: DC 12V
Static current: ≤35mA, attract current ≤65mA
Measurement input: NTC (10K 0.5%) waterproof sensor
Operating temperature: -10 ~ 60℃
Operating humidity: 20% -85%
Item size: 4.85 * 4.01 * 1.58cm / 1.91 * 1.58 * 0.62in
Item weight: 19.3g / 0.68oz
Package weight: 22g / 0.78oz
Package size: 5.5 * 5 * 2.5cm / 2.17 * 1.97 * 0.98in
Temperature range: -50-110℃
Temperature control mode: ON / OFF
Resolution at -9.9 to 99.9℃: 0.1℃
Resolution at all other temperatures: 1℃
Control accuracy: 0.1℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5 seconds
High temperature protection: 0-110℃
Supply voltage: DC 12V
Static current: ≤35mA, attract current ≤65mA
Measurement input: NTC (10K 0.5%) waterproof sensor
Operating temperature: -10 ~ 60℃
Operating humidity: 20% -85%
Item size: 4.85 * 4.01 * 1.58cm / 1.91 * 1.58 * 0.62in
Item weight: 19.3g / 0.68oz
Package weight: 22g / 0.78oz
Package size: 5.5 * 5 * 2.5cm / 2.17 * 1.97 * 0.98in
|
Power Consumption
|
<=35mA
|
|
|
Static Current
|
<=35mA
|
|
|
attract current
|
<=65mA
|
|
How to use
Connect the power supply and the load, you can supply to the controller.
It displayed as a measured temperature.
Press the "SET" button, the display flashes the temperature;
Press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease);
After setting press SET to confirm return;
The controller automatically performs the relay by setting off!
It displayed as a measured temperature.
Press the "SET" button, the display flashes the temperature;
Press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease);
After setting press SET to confirm return;
The controller automatically performs the relay by setting off!
Lights, LED status descriptions
Indicator: "Off" The relay is switched off, "Always" indicate the relay is closed.
LED: Shows "LL" is the sensor open, showing "HH" is out of range, the thermostat will be forced to close the relay, the display, as high temperature protection.
LED: Shows "LL" is the sensor open, showing "HH" is out of range, the thermostat will be forced to close the relay, the display, as high temperature protection.
Function Setting Table
long press "SET" to enter into setting
Code numberCode Set rangeFactory settingP0 Cooling / Heating C/HC P1 Hysteresis Setting0.1-152P2Highest Setting
Limit110110P3Lowest setting Limit-50 -50 P4Temperature Correction-7-7℃ 0P5Delay Start Time 0-10 Minute0P6Key Tone Switch0-110
Code numberCode Set rangeFactory settingP0 Cooling / Heating C/HC P1 Hysteresis Setting0.1-152P2Highest Setting
Limit110110P3Lowest setting Limit-50 -50 P4Temperature Correction-7-7℃ 0P5Delay Start Time 0-10 Minute0P6Key Tone Switch0-110
* Resolution is 0.1℃ when temperature is -9.9~99.9 ℃, other temperature segment is 1℃.
* High precision temperature controller, temperature control switch, miniature temperature control board, probe.
* Digital display intelligent temperature controller XH-W1209.
* Blue LED shows numbers more clearly.
* Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
* High precision temperature controller, temperature control switch, miniature temperature control board, probe.
* Digital display intelligent temperature controller XH-W1209.
* Blue LED shows numbers more clearly.
* Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
