Description

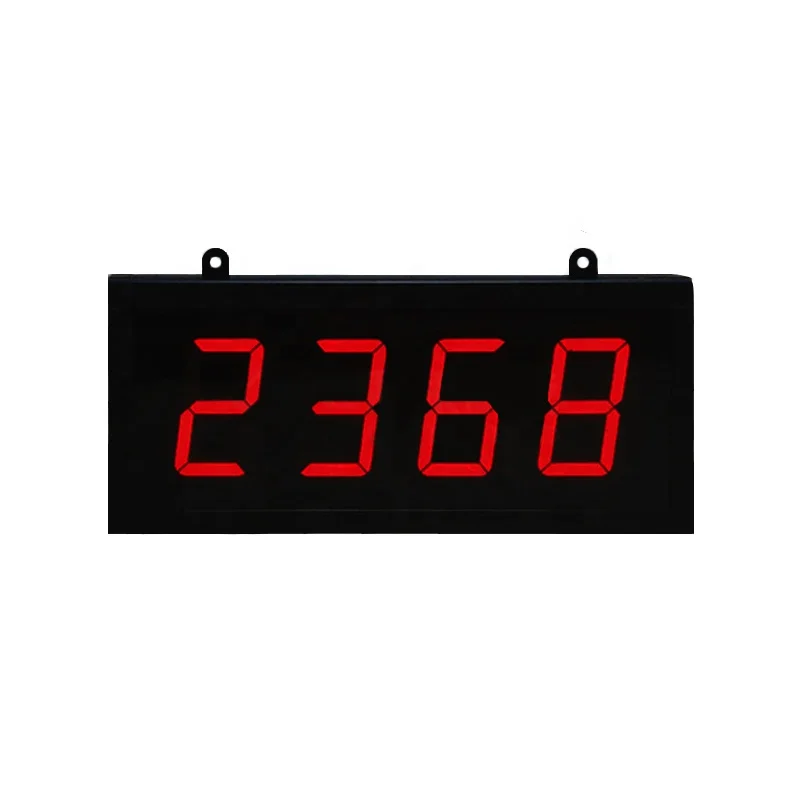

High-Precision RS485 Display Screen 7 Segment 4 Digit LED Counter Display Digital LED Counter Electronic Tube Display
Product Description
Feature
Up/down count 1. Directly control addition and subtraction through the remote control 2. Connect button\sensor\foot pedal\NPN, PNP switch signal, etc. increase and decrease 3. Control addition and subtraction through PLC, computer, etc. Adjust the counting step 1. Set the value of each addition and subtraction through the remote control 2. The communication version can be set via a computer or PLC Adjust the counting interval 1. Set the counting interval through the remote control 2. The communication version can be set via a computer or PLC 3. The fastest counting interval is 10ms/time Add decimal point 1. Customize the decimal point via the remote control 2. It can be set by computer and PLC Alarm function [Need to be used with alarm light] 1. The maximum/minimum value alarm can be set 2. Alarm duration can be set 3. Alarm actions can be set (e.g.: stop counting and alarm when the set value is reached) Memorize data 1. Automatically memorize data 2. Automatically save when power off
Specification
|
Product name
|
LED large screen counter/counting screen
|
|
Display method
|
LED display, constant current source static drive
|
|
Display material
|
1.8/2.3/3.0/4.0/5.0 inch red light digital tube
|
|
Panel material
|
Acrylic material
|
|
Frame material
|
Aluminum alloy material (default thickness 3.8cm)
|
|
Product power consumption
|
Whole screen 2-30W
|
|
Power supply range
|
Average service life≥10W hours, MTBF≥20000 hours
|
|
Power Adapter
|
Default DC12V (please consult customer service for other power supplies); AC220V/50Hz
|
|
Working environment
|
Temperature -10°C~70°C; relative humidity
|
|
Data preservation
|
Automatically memorize data, save data when power off
|
|
Remote control distance
|
Infrared remote control
|
|
Installation method
|
Hanging type; sawtooth wall-mounted type; L-shaped wall-mounted type
|
|
Collection method
|
Photoelectric sensor (NPN, PNP interface), button, pedal, PLC switch
|
|
Scope of application
|
Industrial assembly line/workshop/factory/commercial activity/entertainment program/office, etc.
|
