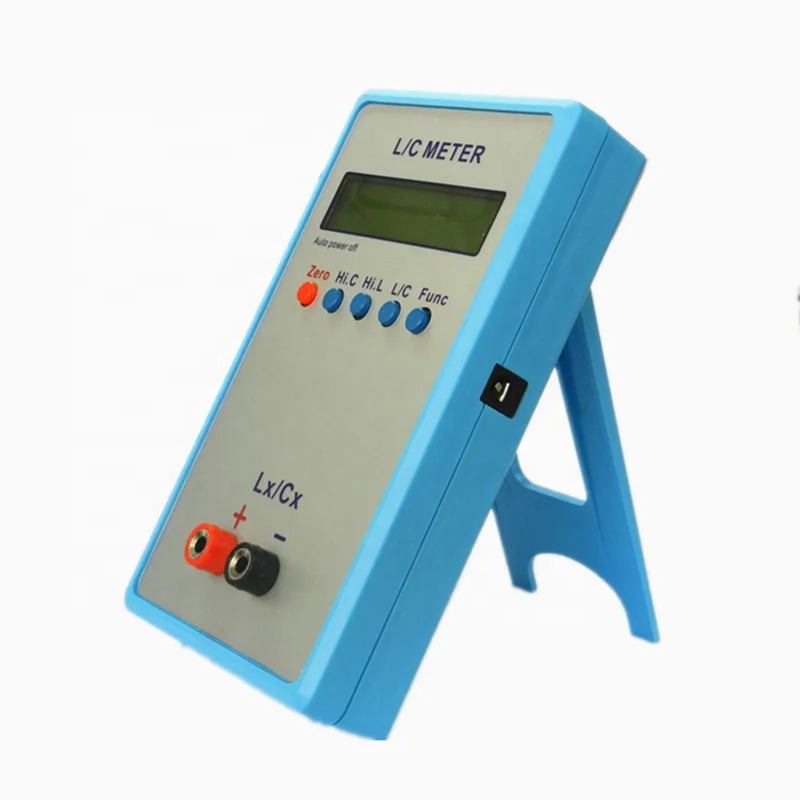

High Precision LC Meter Digital Bridge Multimeter Tester Handheld Inductance and Capacitance Measuring Meters LC200A

Description

LC200A hand-held inductance capacitor table is the Department of mold to create the LC tester, with a wide range, easy to use and so on. With a blue plastic shell, the internal use of surface-mounted high-quality components to ensure good quality; can measure 1pF-100mF capacitor and 1uH-100H inductance, capacitance resolution to 0.01pF, inductance resolution 0.001uH.
The instrument is based on the principle of LC resonance, can measure the following inductance and less than 1pF 1FF small capacitance, this is also the characteristics of the instrument, especially for microwave production and switching power supply transformers, filter inductance measurement; this product relative to the market The finished inductance capacitor table (such as the 6243 series) has the advantage in small value testing, and has a flexible online calibration can keep the measurement accuracy at any time; the instrument does not use any potentiometer adjustment, calibration parameters completely stored in the
microcontroller FLASH internal , Power loss will not be lost, than other potentiometer calibration method to be accurate and convenient

parameter

Display: 1602 LCD screen
Valid display digits: 4 digits
Power supply interface: 4 5 # battery, Mini usb and 5DC socket
Supply voltage: external 5V or battery
Size: 150 * 89 * 29mm
Weight: 198g
