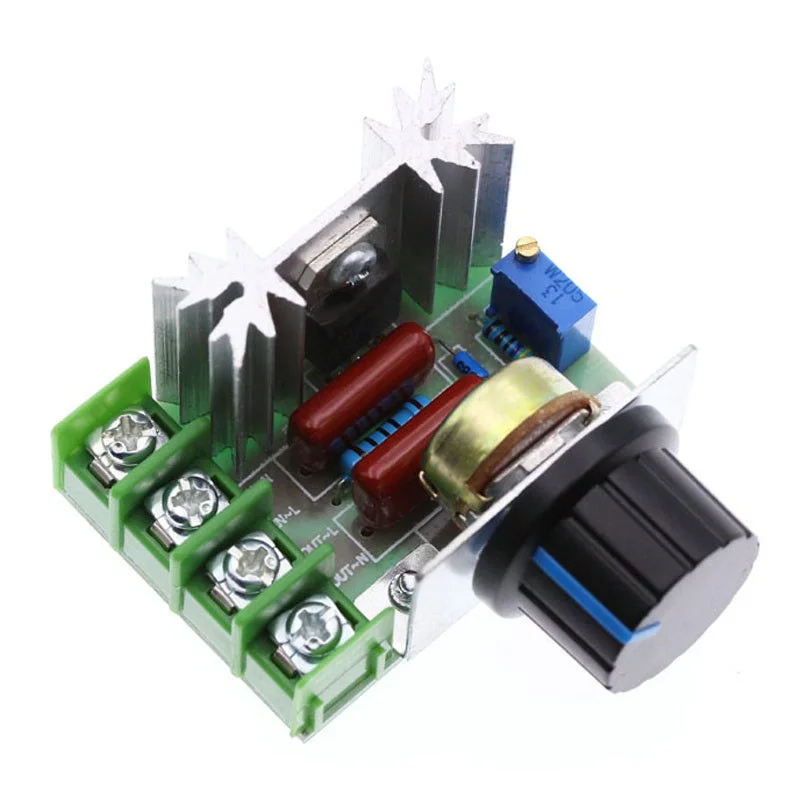

SpecificationHigh Power Thyristor Dimming Speed 2000w 220V thyristor dimmer SCR electronic voltage temperature control Regulator
Main parameters: Service voltage: 220V ac
High power: 2000W
Voltage regulation: ac 50-220V
Specification size: high temperature FR-4 circuit board circuit board 36MM*48MM
External dimension: 48MM*60MM (knob direction) *28MM (height)
Silicon control voltage up to 1200 volts/current 25A
1.6mm epoxy coated sheet
The voltage regulator with wave peak voltage absorption circuit effectively protects high-power thyristor, longer and more durable life.
Usage:
Connect this product in series in the circuit of desk lamp or use electric equipment, (namely the desk lamp, use electric
equipment to wait to disconnect any one of live wire or zero line, connect the two wires of this "product" to be able already)
rotate potentiometer rotatory lever, can have the effect of light and shade adjustment, speed regulation, pressure regulation,
temperature regulation; It's very convenient to use.
This product is suitable for: the use of new bidirectional high-power thyristor, because the current can reach 25 amperes, a good solution to the electric furnace wire in the case of cooling resistance is too small caused by the over-current problem; Veryconvenient to adjust the output voltage of the power supply, between 90- 220 v arbitrary adjustment, the use of power supply. Such as: electric furnace, water heater heat regulation, light regulation, small motor speed regulation, electric soldering iron temperature regulation. So as to achieve dimming, temperature regulation, pressure regulation effect. Large electrical appliances that can supply less than 2000 watts are already very powerful, so ordinary household appliances or small factories are sufficient. (the power of inductive or capacitive load should be reduced. The voltage regulator is equipped with bidirectional high-power thyristor and potentiometer is equipped with nut. It can be used without adding any components, which is very convenient and practical).
High power: 2000W
Voltage regulation: ac 50-220V
Specification size: high temperature FR-4 circuit board circuit board 36MM*48MM
External dimension: 48MM*60MM (knob direction) *28MM (height)
Silicon control voltage up to 1200 volts/current 25A
1.6mm epoxy coated sheet
The voltage regulator with wave peak voltage absorption circuit effectively protects high-power thyristor, longer and more durable life.
Usage:
Connect this product in series in the circuit of desk lamp or use electric equipment, (namely the desk lamp, use electric
equipment to wait to disconnect any one of live wire or zero line, connect the two wires of this "product" to be able already)
rotate potentiometer rotatory lever, can have the effect of light and shade adjustment, speed regulation, pressure regulation,
temperature regulation; It's very convenient to use.
This product is suitable for: the use of new bidirectional high-power thyristor, because the current can reach 25 amperes, a good solution to the electric furnace wire in the case of cooling resistance is too small caused by the over-current problem; Veryconvenient to adjust the output voltage of the power supply, between 90- 220 v arbitrary adjustment, the use of power supply. Such as: electric furnace, water heater heat regulation, light regulation, small motor speed regulation, electric soldering iron temperature regulation. So as to achieve dimming, temperature regulation, pressure regulation effect. Large electrical appliances that can supply less than 2000 watts are already very powerful, so ordinary household appliances or small factories are sufficient. (the power of inductive or capacitive load should be reduced. The voltage regulator is equipped with bidirectional high-power thyristor and potentiometer is equipped with nut. It can be used without adding any components, which is very convenient and practical).
